When removing the A150 YTF interface
board, unsolder it at four points.
W121
W122
W123

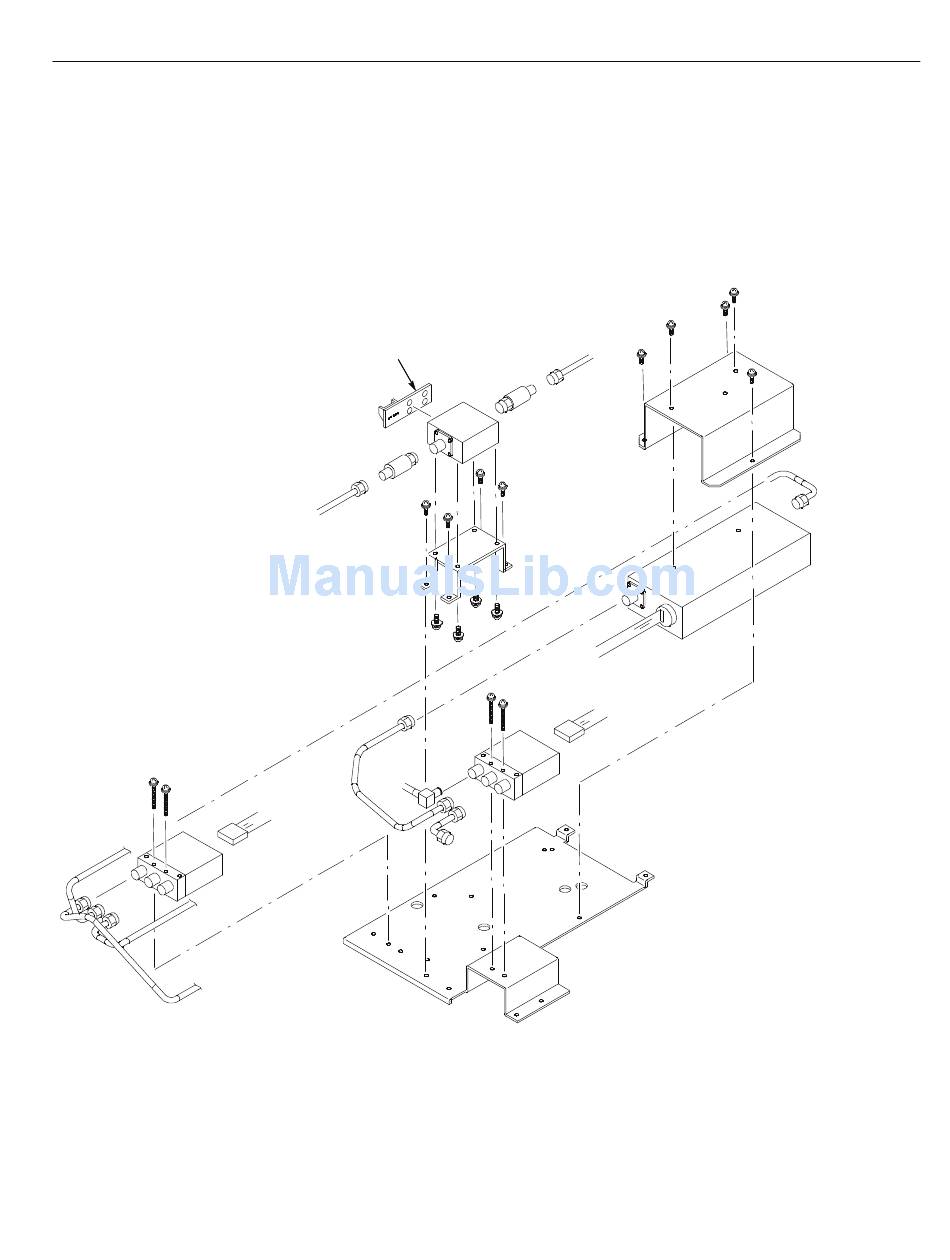

Figure 6- 26: RF1 modules removal - 2 (RSA3308A)
RSA3303A & RSA3308A Service Manual
c. Remove the two screws securing the base plate through the A100
Interconnection board to the main chassis.
d. Remove the four screws securing the base plate to the main chassis.
e. Lift up the base plate with the modules.
W106
W119
W120
W114A
W101
Removal and Installation Procedures
W123
To J110
on A100
W114
6- 55
