Application of
Disassembly
3

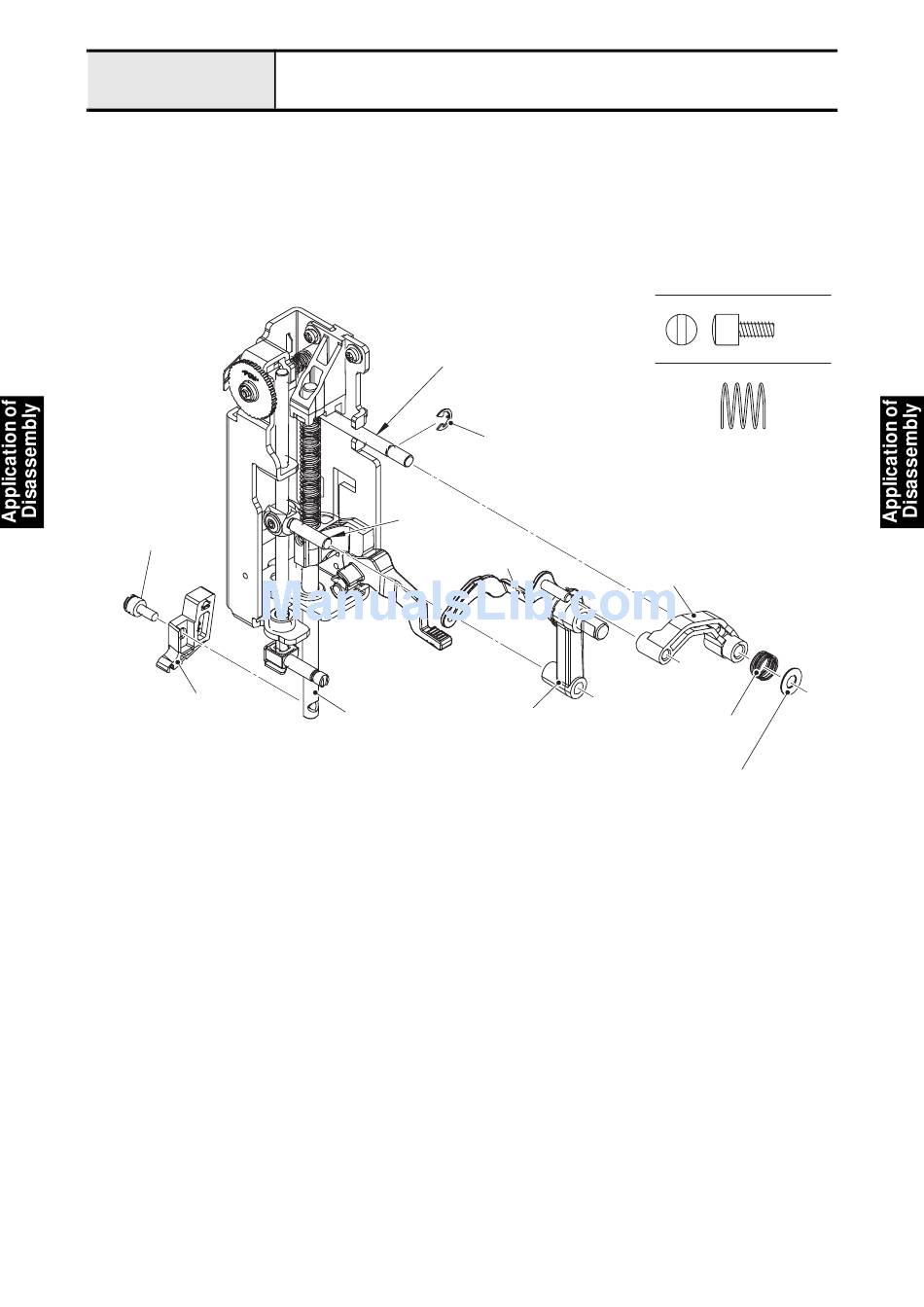

Disassembly of Needle-presser module

1. Remove the screw (tightening screw 3.57) to remove the presser foot holder from the presser bar sub
assy.
2. Remove the retaining ring E4 to remove the washer, the spring (XF3413) and the thread take-up lever
link from the shaft.
3. Remove the thread take-up lever and the needle bar crank rod assy from the needle bar block shaft of
needle bar crank rod assy.
Tightening screw 3.57
Presser foot holder
Bobbin winder, Upper shaft, Needle-Presser module
Shaft
Needle bar
block shaft
Thread take-up lever
Presser bar sub assy
3 - 26
Tightening screw 3.57
Spring (XF3413)
Retaining ring E4
Thread take-up lever link
Needle bar
Spring (XF3413)
crank rod assy
Washer
