Basic of Assembly
2

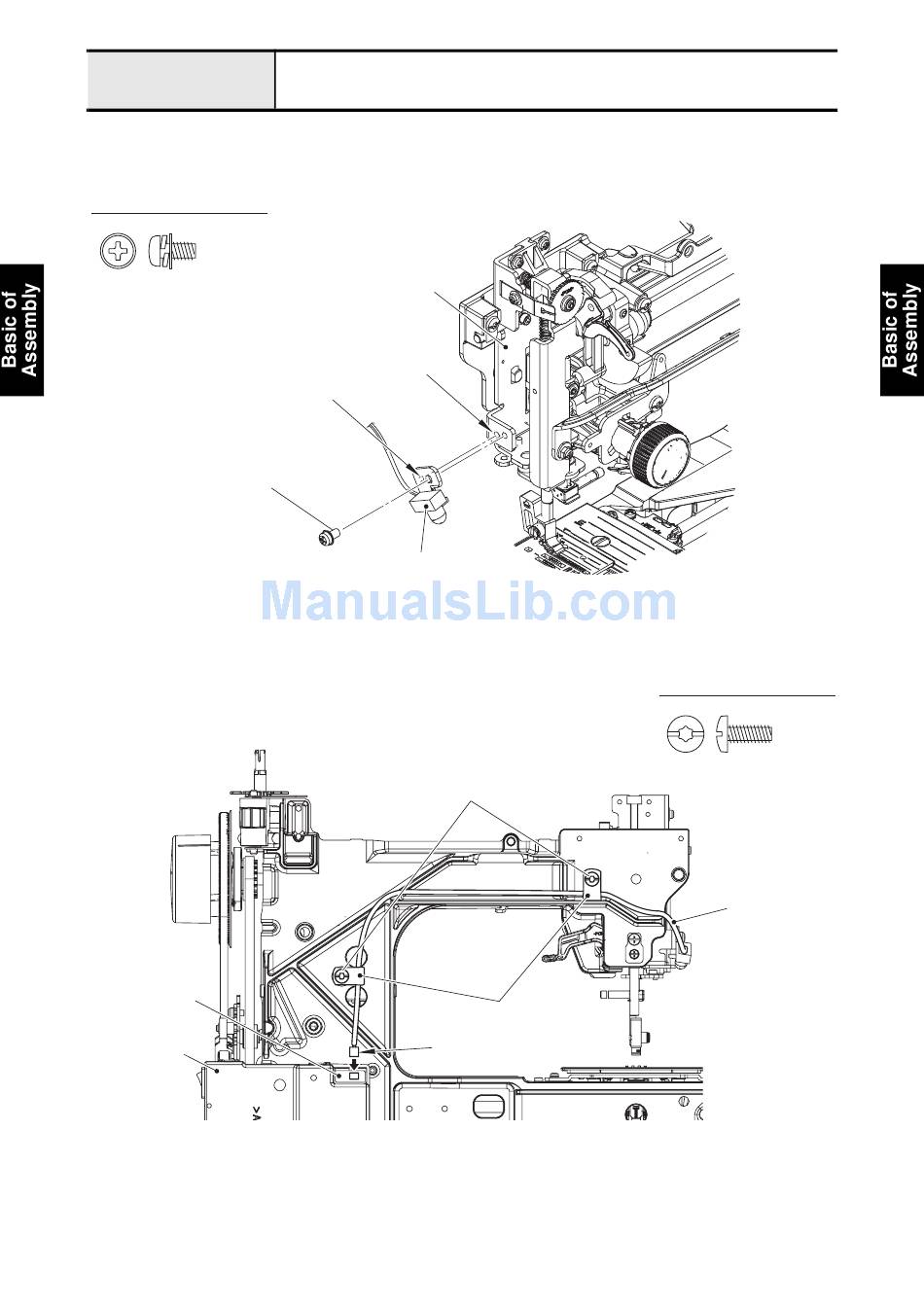

Attachment of LED lamp assy
1. Align the boss of LED lamp assy with the positioning hole of base holder assy, and attach it with the
screw (screw, pan (S/P washer) M4X8).
Screw, Pan (S/P washer) M4X8
Screw, pan (S/P washer) M4X8
2. Connect the connector of LED lamp assy to the PCB of motor 3P supply assy.
3. Set the cord clamp to the lead wire of LED lamp assy, and attach it to the arm bed with the screw
(taptite, bind S M4X10). (2 locations)
PCB
Motor 3P supply assy
Main motor unit
Base holder assy
Positioning hole
Boss
LED lamp assy
Taptite, bind S M4X10
Connector of LED
lamp assy
2 - 42
Cord clamps
Taptite, Bind S M4X10
Lead wire of LED
lamp assy
