Removal of Motor 3P supply assy

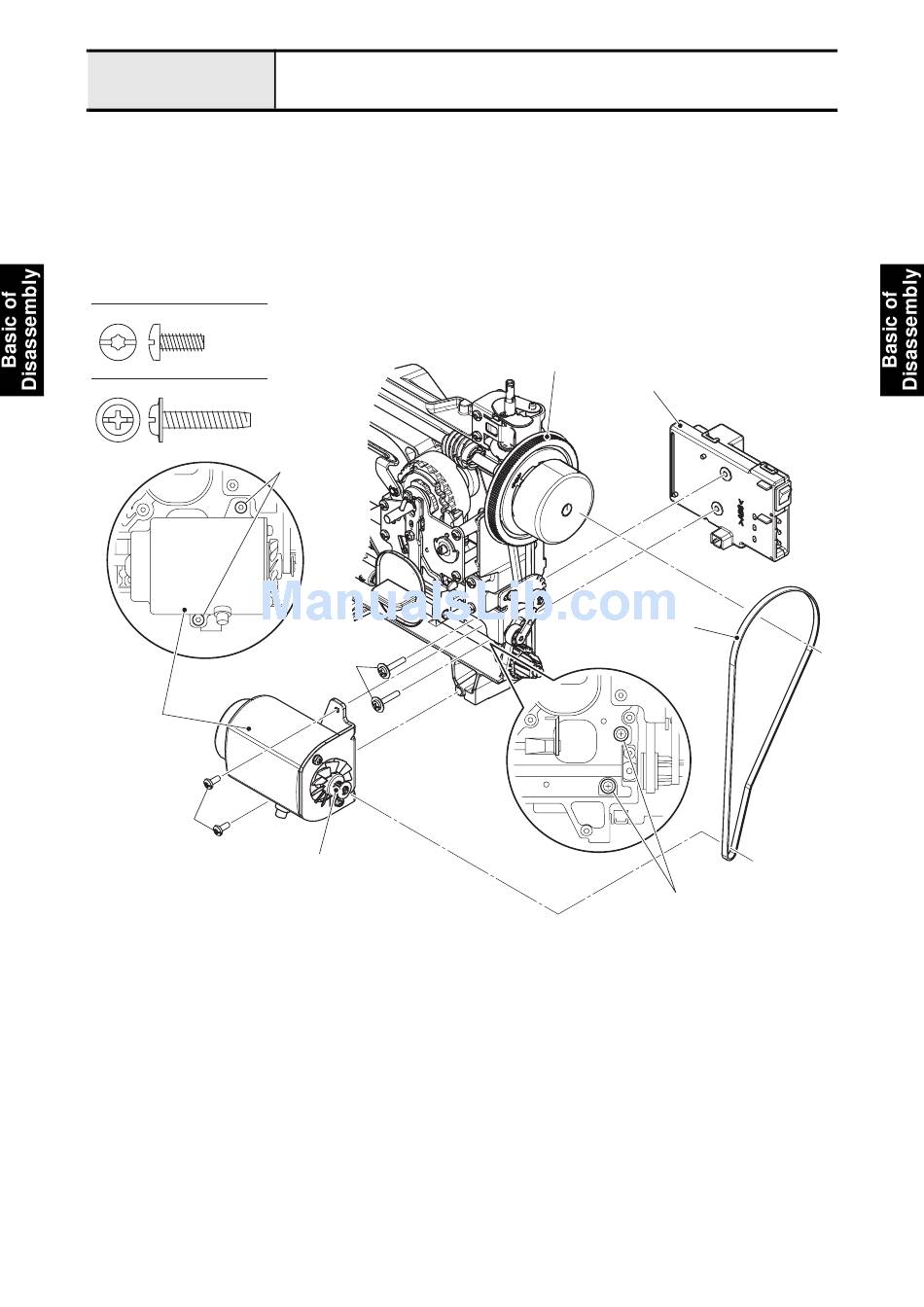

1. Remove the timing belt from the T pulley and motor T-pulley.
2. Remove the two screws (taptite, bind S M4X10) to remove the motor assy of motor 3P supply assy
from the arm bed.
3. Remove the two screws (taptite, cup P M4X20) to remove the 3P socket unit of motor 3P supply assy
from the arm bed.
Refer to 3 - 7 Disassembly of Motor 3P supply assy.
Taptite, Bind S M4X10
Taptite, Cup P M4X20
Motor assy
Taptite, bind S
M4X10
Main motor unit
Taptite, bind S
M4X10
Taptite, cup P
M4X20
Motor T-pulley
2 - 9
T pulley
3P socket unit
Timing belt
Taptite, cup P M4X20
