Accessories

10.2.5 Right Angle Mirror

The right angle mirror comes in two different versions:
XXXMIACRAJ
XXXMIACRAJ1
The right angle mirror withstands ambient temperatures up to 180°C (356°F).
For mounting the right angle mirror (XXXMIACRAJ), see section 10.2.3
However, instead of using the front part of the air purge jacket ③, mount the right angle mirror.
66
info@Raytek-Direct.ca

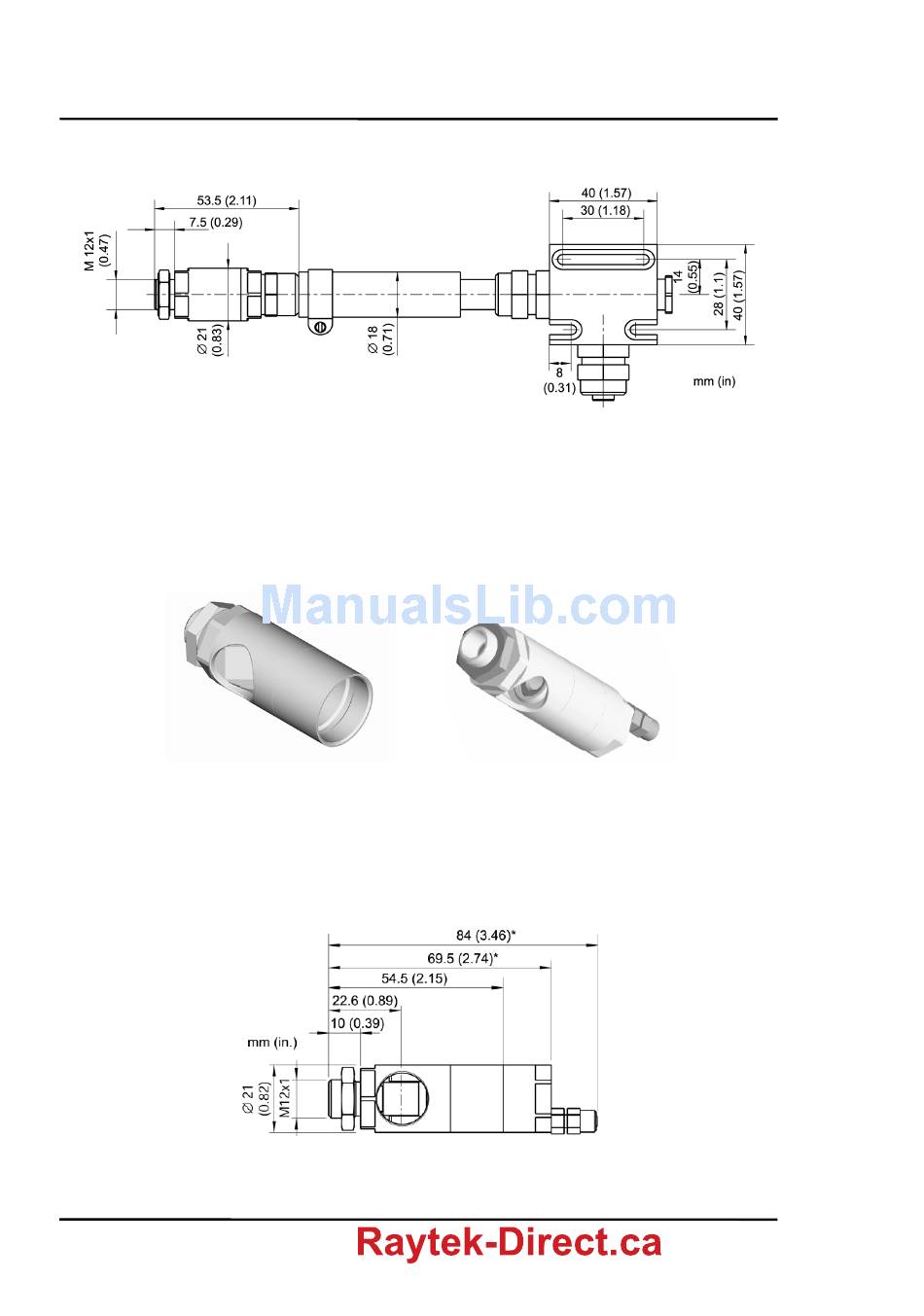

Figure 55: Dimensions of Air Cooling System
right angle mirror as accessory for air purge jacket or air cooling system
right angle mirror with integrated air purge (not available for LTH sensing heads)
Figure 56: Right Angle Mirror XXXMIACRAJ (left),
Right Angle Mirror with Air Purge XXXMIACRAJ1 (right)
Figure 57: Right Angle Mirror (* with Air Purge)
Hose:
inner Ø: 9 mm (0.35 in)
outer Ø: 12 mm (0.47 in)
Rev. F1 05/2013
Air Purge Jacket, page 61.
