15.1.2 Comm Box (DIN)

MI3
info@Raytek-Direct.ca
Pin Modbus
1 GND
(output)
2 Shield
3 D0_2
(negative signal) (not supported while termination "on")
4 D1_2
(positive signal) (not supported while termination "on")
5 D0_1
(negative signal)
6 D1_1
(positive signal)
7 Shield
8 GND
(output)
9 n.a.
L , yellow Communication
ED
L , red Error
ED

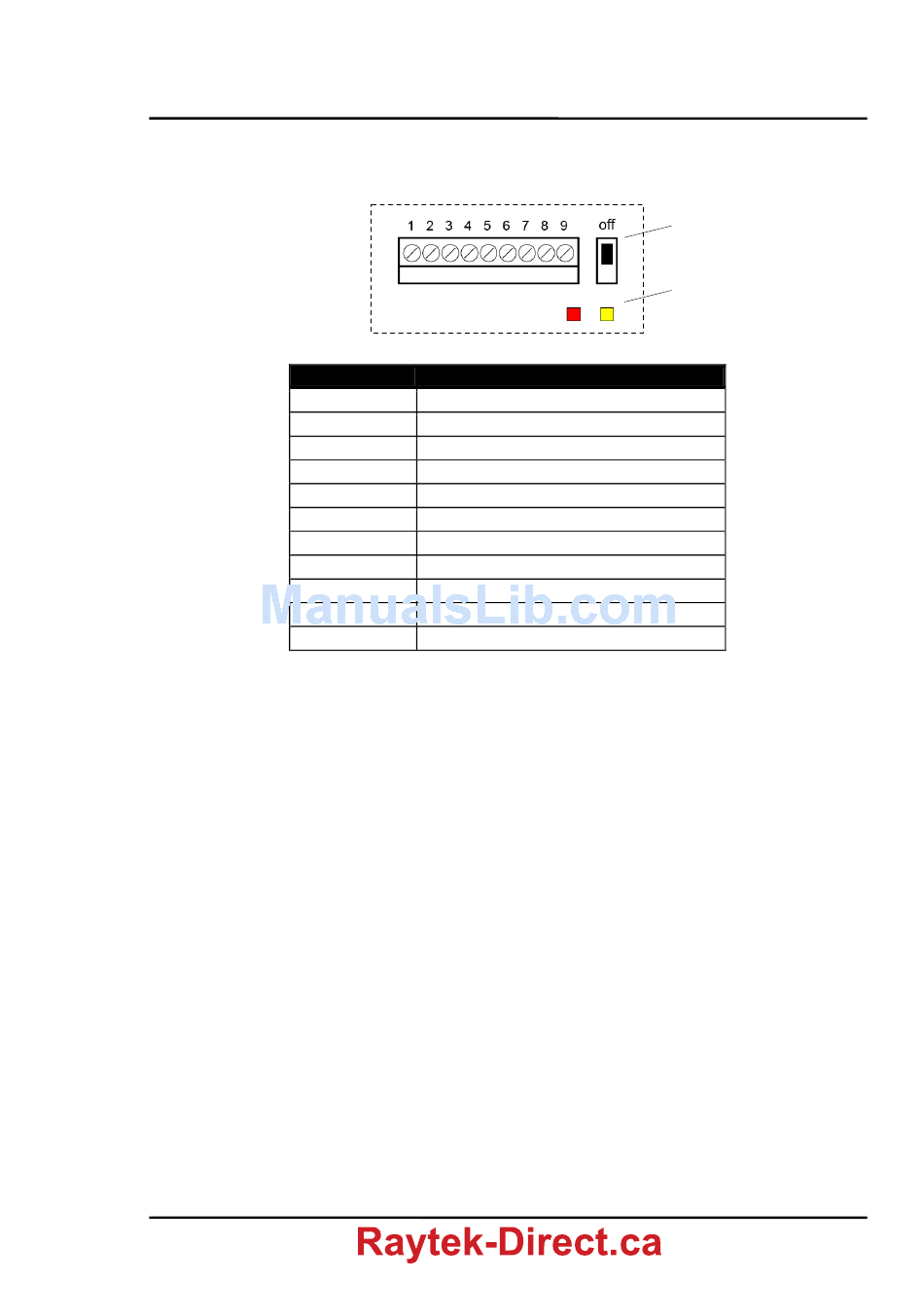

Figure 77: Terminal for Comm Box (DIN 6TE)
Rev. F1 05/2013
Modbus
Termination
Indicators
