Installation
5.6 USB
The USB interface comes with each box (USB connector, Mini-B). Connect a single unit to a USB
computer port by using an appropriate USB cable.
34
info@Raytek-Direct.ca

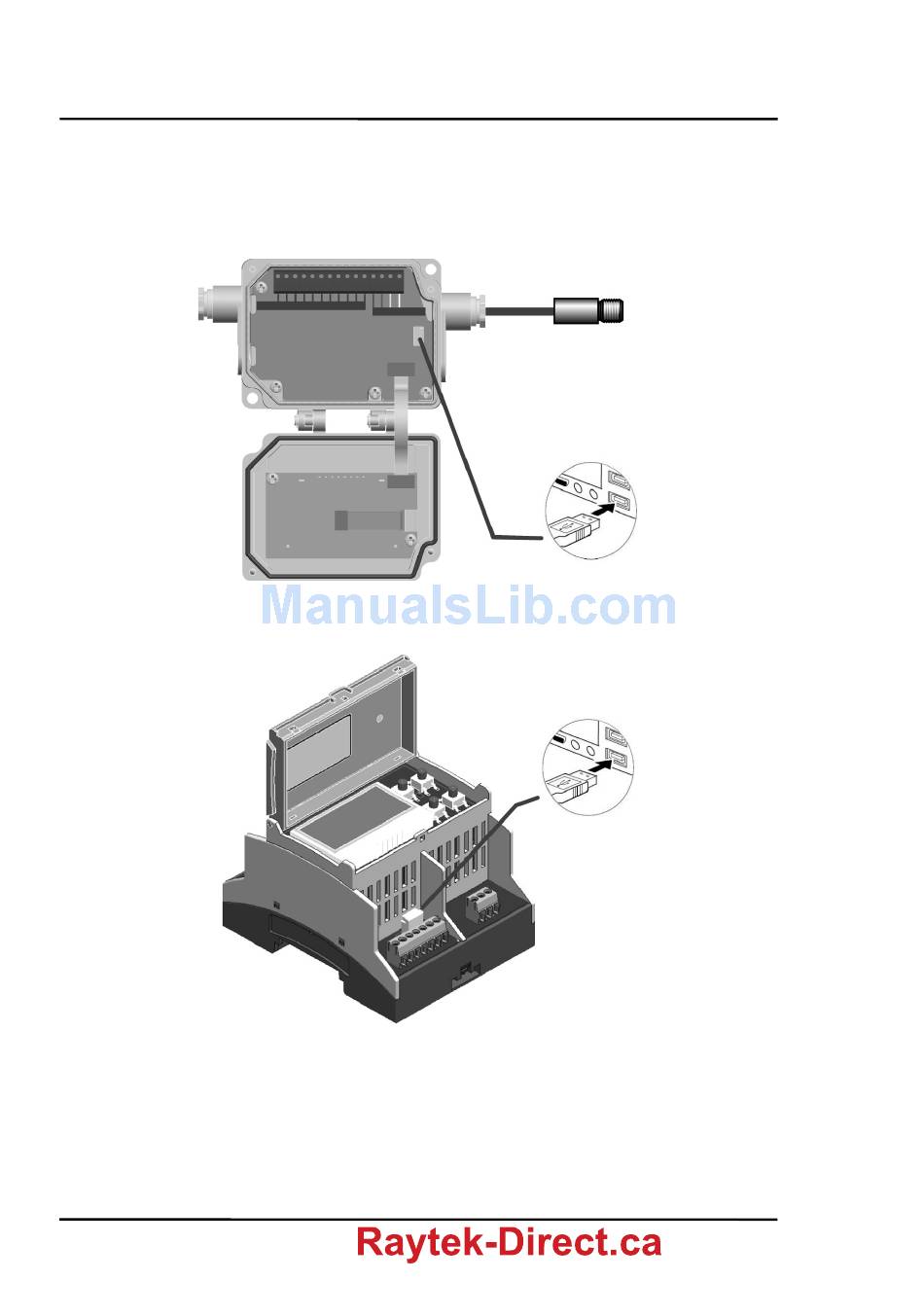

Figure 21: USB Connection via the Comm Box (metal)
Figure 22: USB Connection via the Comm Box (DIN Rail)
Rev. F1 05/2013
USB connector,
type Mini-B
The computer's USB port
The computer's USB port
MI3
