RayTek MID Specification Sheet

Raytek MID
Noncontact Infrared Temperature Sensor

Product Description

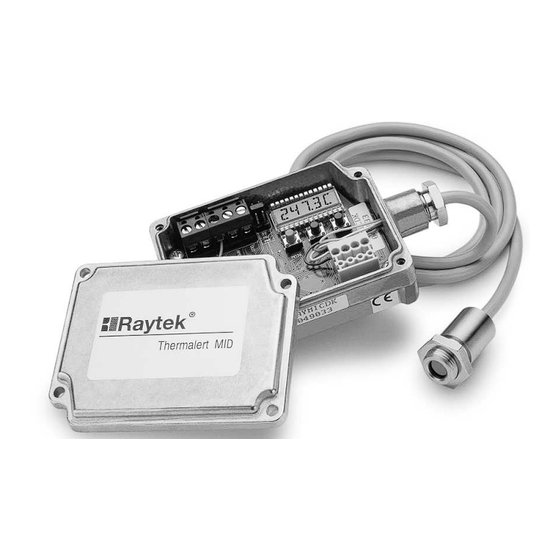

The MID ™ is a two-piece infrared temperature measurement system with
miniature sensing head and separate electronics. The sensor is small
enough to be installed just about anywhere, yet it performs as well as
much larger systems. And the MID electronics include a host of signal
processing features which you won't normally find in systems in this
price range, including Emissivity, Peak Hold, Valley Hold, and Averaging,
all of which are adjustable on the 5-digit LCD interface.
Designed for applications where the target temperature is in the -40 to
600°C (-40 to 1112°F) range, the sensor is housed in a rugged stainless
steel enclosure to ensure long term performance, even in harsh industrial
environments with ambient temperatures up to 85°C (185°F) without
cooling.
Although the MID is small in size, it still has the features you need,
with 1% accuracy and a choice of 2:1 or 10:1 optics, with user selectable
output signals. And the MID's response time is as fast or faster than
many high-end systems.
The MID's miniature size and low cost make it ideal for installation at
multiple points along your process. Accurate. Easy to install. Affordable.
With the MID, precision infrared temperature measurement is now an
economical alternative.
Highlights:
• Small sensing head fits where other sensors can't
• Ambient operating range to 85°C (185°F) without cooling
• 5-digit backlit LCD interface
• Adjustable emissivity, peak hold, valley hold and averaging
• 1% Accuracy from -40 to 600°C (-40 to 1112°F)
• Choice of 2:1 or 10:1 optics
• Powered by 12-24 VDC at 100 mA
• Accessories for cooling and air purging
• Remote electronics box
• User selectable output signals
• Optional RS232 or RS485 communication
