MI3
info@Raytek-Direct.ca
max. ambient 200°C (392°F)
Sensing Head
Air cooling (max. 35°C / 95°F)

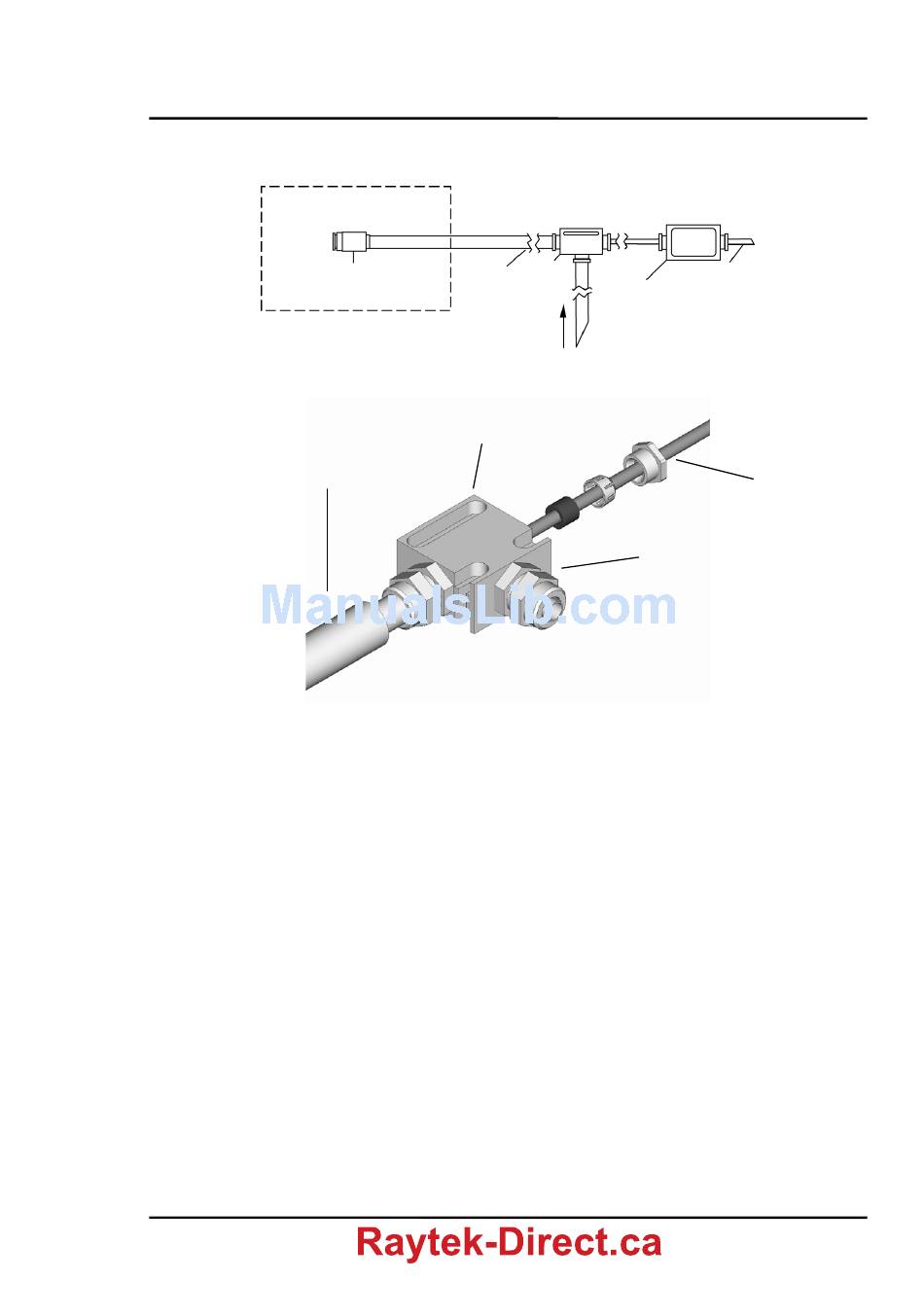

Figure 51: Air Cooling System (XXXMIACCJ)
T-Adapter
Hose to
sensing head
Figure 52: Connecting the T-Adapter
max. ambient 50°C (122°F)
T-
Air Hose
Adapter
Rev. F1 05/2013
Accessories
Cable
Box
Cable to box
Fitting free for air connection
Hose:
inner Ø: 9 mm (0.35 in)
outer Ø: 12 mm (0.47 in)
1.800.868.7495
63
