Accessories

6.2 Adjustable Bracket

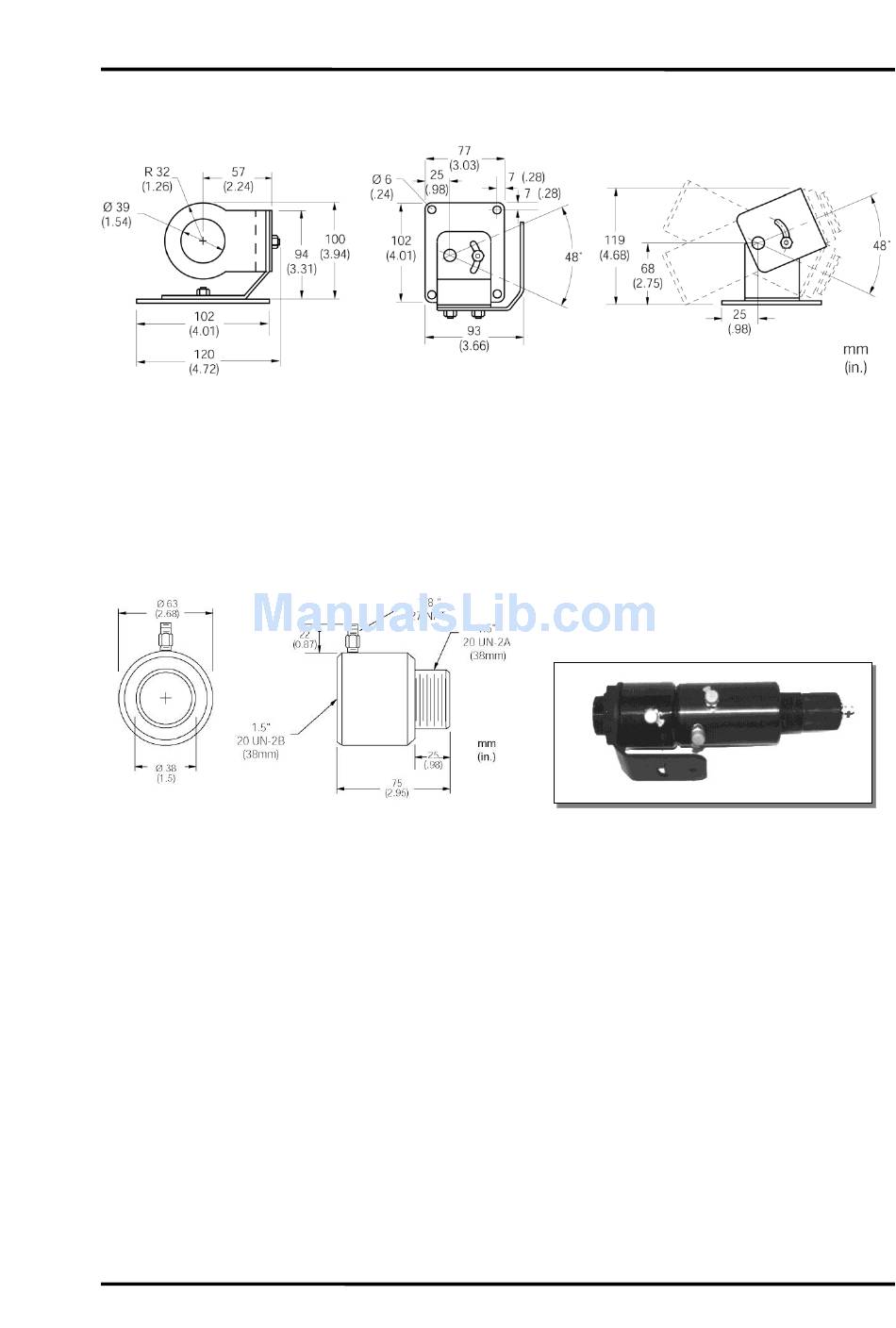

Figure 20: Adjustable Bracket (XXXTXXACAB)

6.3 Air Purge Collar

The Air Purge Collar (XXXTXXACAP) is used to keep dust, moisture, airborne particles, and vapors
away from the lens. It can be mounted before or after the bracket. The air flow is passed through 1/8"
NPT stainless steel fitting onto the front aperture. Air flow should be a maximum of 0.5 to 1.5 l/sec.
Clean, oil free air is recommended.
Figure 21: Dimension of Air Purge Collar (left), Sensor with Air Purge Collar (right)

6.4 Right Angle Mirror

The Right Angle Mirror (XXXTXXACRA) is used to turn the field of view by 90° against the sensor
axis. It is recommended when space limitations or excessive radiation do not allow to directly align
the sensor to the target. The mirror must be installed after the bracket and after the Air Purge Collar
and screwed in fully. In dusty or contaminated environments, air purging is required to keep the
mirror surface clean.
