Accessories

10.3.2 Adjustable Mounting Bracket

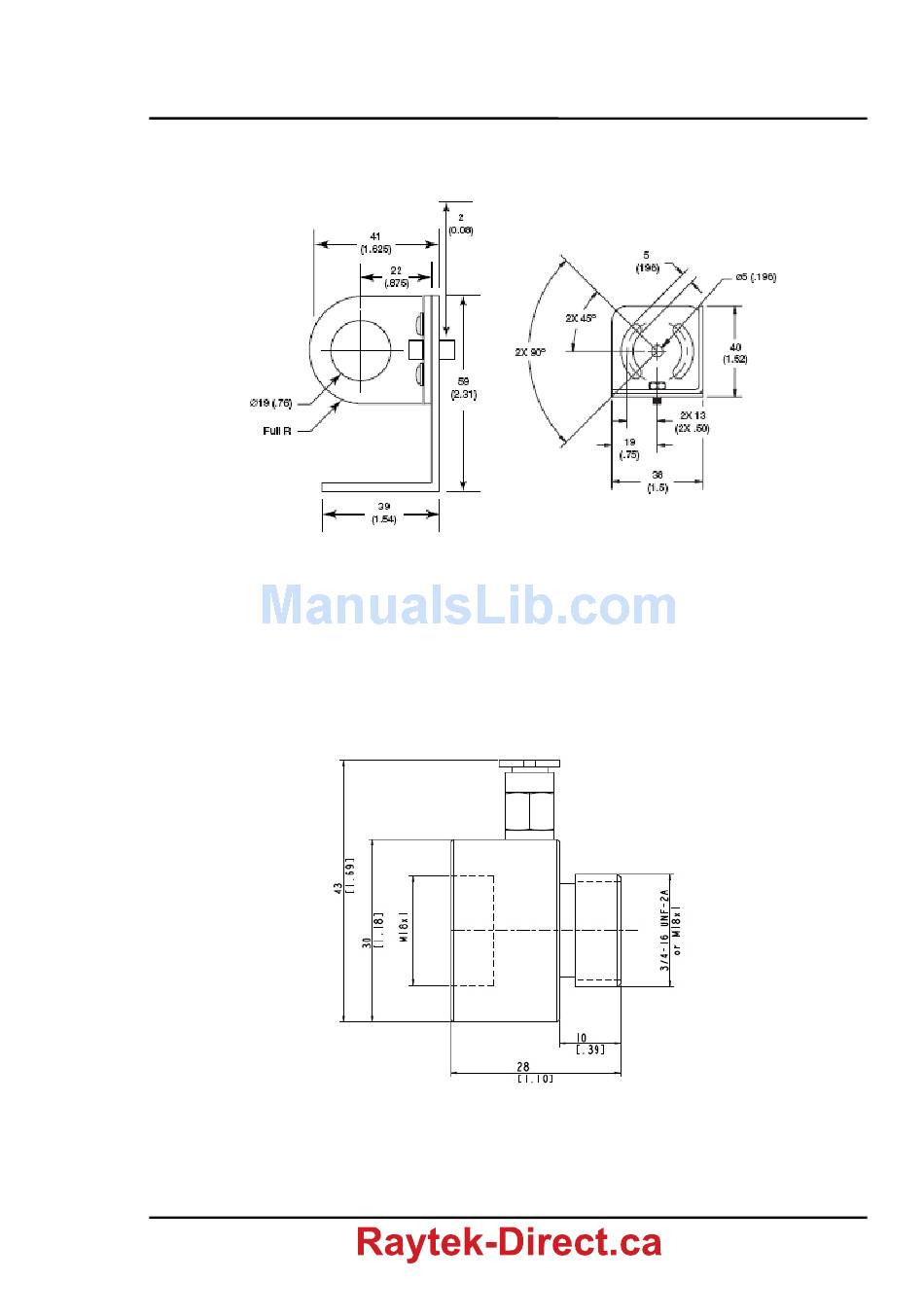

Figure 63: Dimensions of Adjustable Mounting Bracket (XXXMI3100ADJB)
10.3.3 Air Purge Collar
The Air Purge Collar is used to keep dust, moisture, airborne particles, and vapors away from the
lens. It can be mounted before or after the bracket. It has the push-in fitting. A 4 mm (0.16 in) outside
diameter plastic tubing is recommended to connect the fitting. Air flows into the fitting and out the
front aperture. The pressure of air should be 0.6 to 1 bar (8.7 to 15 PSI). Clean, oil free air is
recommended.
Figure 64: Dimensions of Air Purge Collar (XXXMI3100AP)
MI3 71
