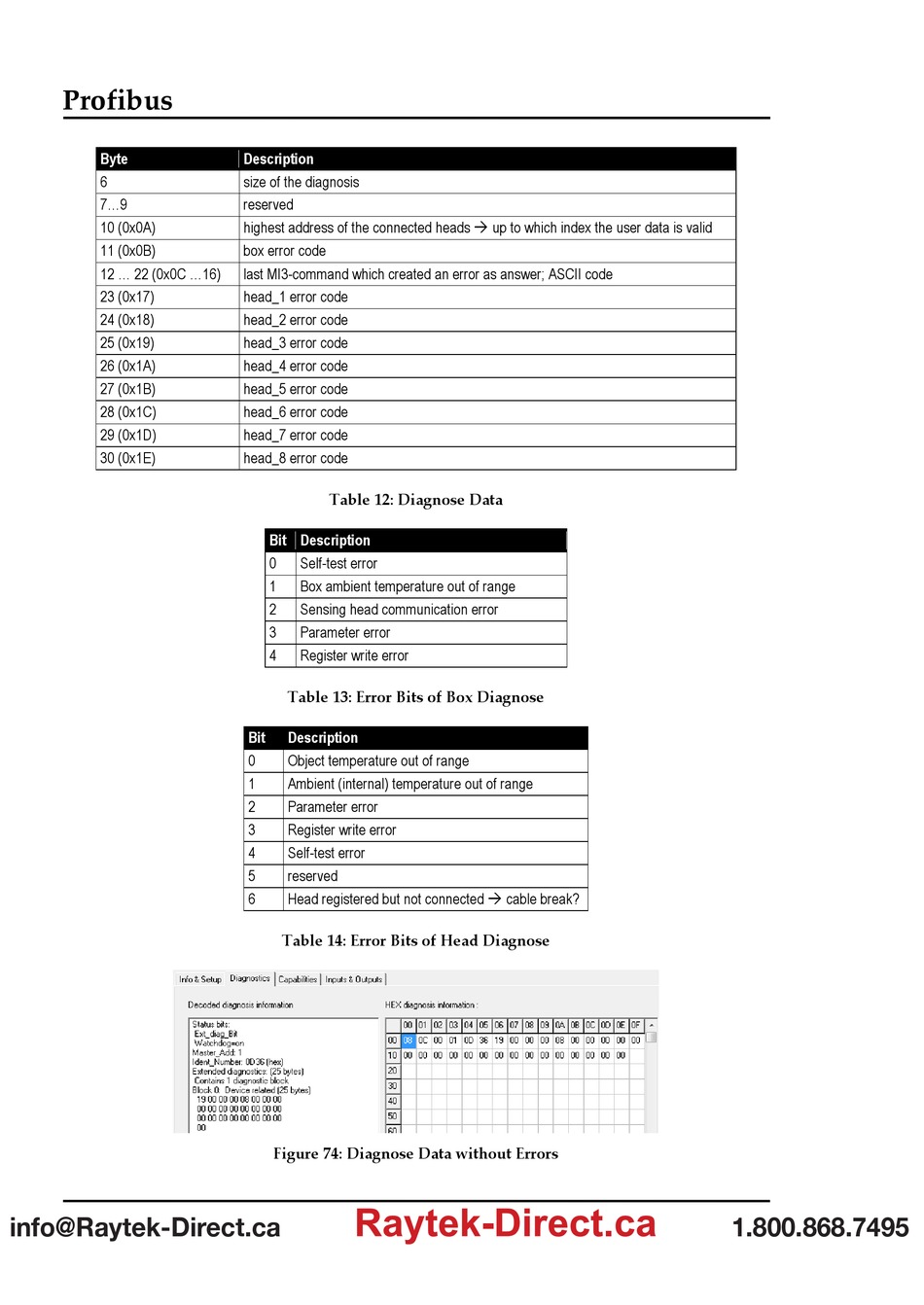

Profibus
Byte
6
7...9
10 (0x0A)
11 (0x0B)
12 ... 22 (0x0C ...16)
23 (0x17)
24 (0x18)
25 (0x19)
26 (0x1A)
27 (0x1B)
28 (0x1C)
29 (0x1D)
30 (0x1E)
86
info@Raytek-Direct.ca
Description
size of the diagnosis
reserved
highest address of the connected heads  up to which index the user data is valid
box error code
last MI3-command which created an error as answer; ASCII code
head_1 error code
head_2 error code
head_3 error code
head_4 error code
head_5 error code
head_6 error code
head_7 error code
head_8 error code
Table 12: Diagnose Data
Bit Description
0 Self-test error
1 Box ambient temperature out of range
2 Sensing head communication error
3 Parameter error
4 Register write error
Table 13: Error Bits of Box Diagnose
Bit Description
0 Object temperature out of range
1 Ambient (internal) temperature out of range
2 Parameter error
3 Register write error
4 Self-test error
5 reserved
6 Head registered but not connected  cable break?
Table 14: Error Bits of Head Diagnose
Figure 74: Diagnose Data without Errors
