Accessories
10.2 Accessories (LT, G5 Heads)
Adjustable Mounting Bracket
•
Fixed Mounting Bracket
•
• Sensing head mounting nut (XXXMIACMN)
Air Purge Jacket
•
Air Cooling System
•
(XXXMIACCJ1)
Right Angle Mirror
•
Protective Windows
•
Close Focus Lens
•
58
info@Raytek-Direct.ca
Termination

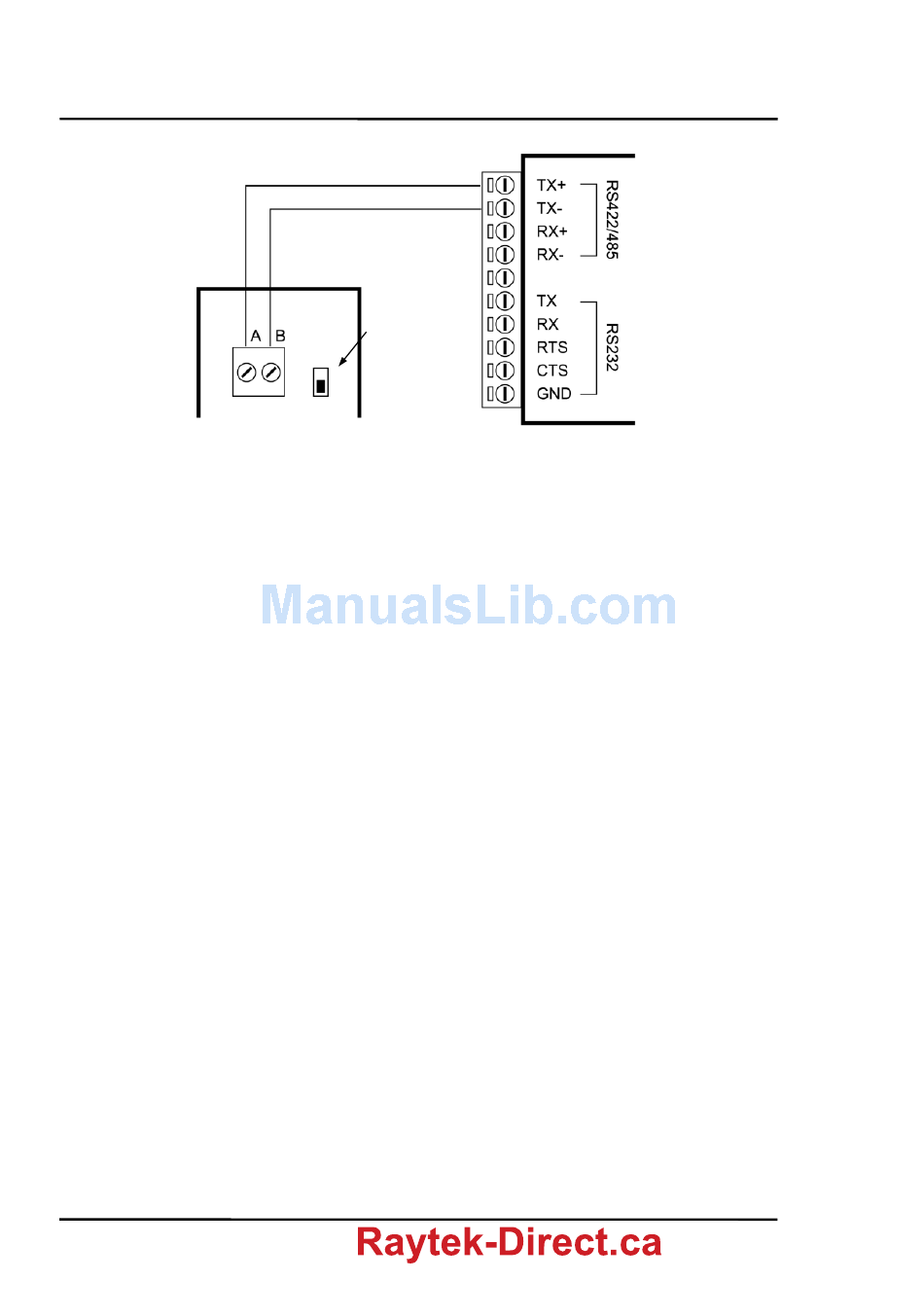

Figure 45: Wiring the RS485 Interface of the Box (left)
and USB/RS485 Adapter (right)
(XXXMIACAB)
(XXXMIACFB)
(XXXMIACAJ)
with 0.8 m (2.6 ft.) air hose (XXXMIACCJ) or with 2.8 m (9.2 ft.) air hose
(XXXMIACRAJ, XXXMIACRAJ1)
(XXXMI3ACCFL)
