7.5 Laser Switching
Function:
Signal:
Terminal:
The FTC3 input can also be used as an external trigger to switch the laser (only available for selected
sensing head models). A transition at the input from logical high level toward logical low level will
switch the laser. All sensing heads are effected by the FTC3 input at the same time.
44
info@Raytek-Direct.ca

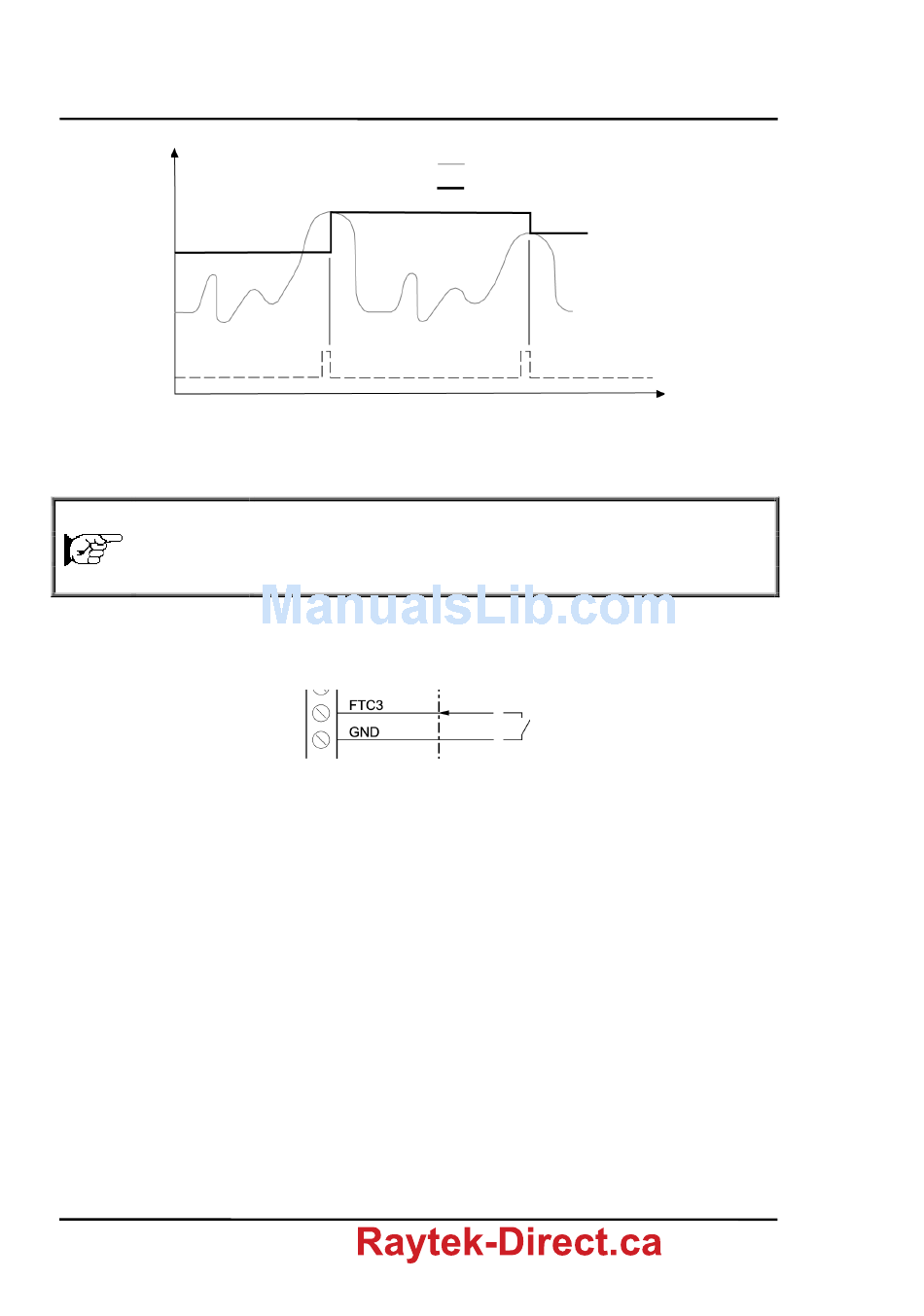

Figure 30: FTC3 for Holding the Output Temperature
Laser switching on/off
digital low/high
FTC3, GND
Figure 31: Wiring of FTC3 as Laser Switching
Rev. F1 05/2013
object temperature
output temperature
Time
Trigger
