Ethernet

16 Ethernet
Specification:
Ethernet:
Protocol
Connection:
An opened Ethernet port will be closed automatically by the MI3 communication box if
there is no data traffic within 120 s!
16.1 Wiring
16.1.1 Comm Box (metal)
The connector on the box side is an M12 plug-in connector, 4 pin D-coded, suited for industrial
Ethernet with IP67 protection rate with a screw retention feature. An M12/RJ45 connector adapter
cable is available at a length of 7.5 m / 25 ft withstanding up to 70°C/158°F for the ambient
temperature (XXXETHLTCB).
16.1.2 Comm Box (DIN)
The connector on the box side is a standardized RJ45 connector.
16.2 ASCII Programming
For the programming details, see section 18
94
info@Raytek-Direct.ca
10/100 MBit/s, Auto-Negotiation
TCP/IP version 4
http server capability supporting up to 8 sensing heads
M12 or RJ45
electrically isolated

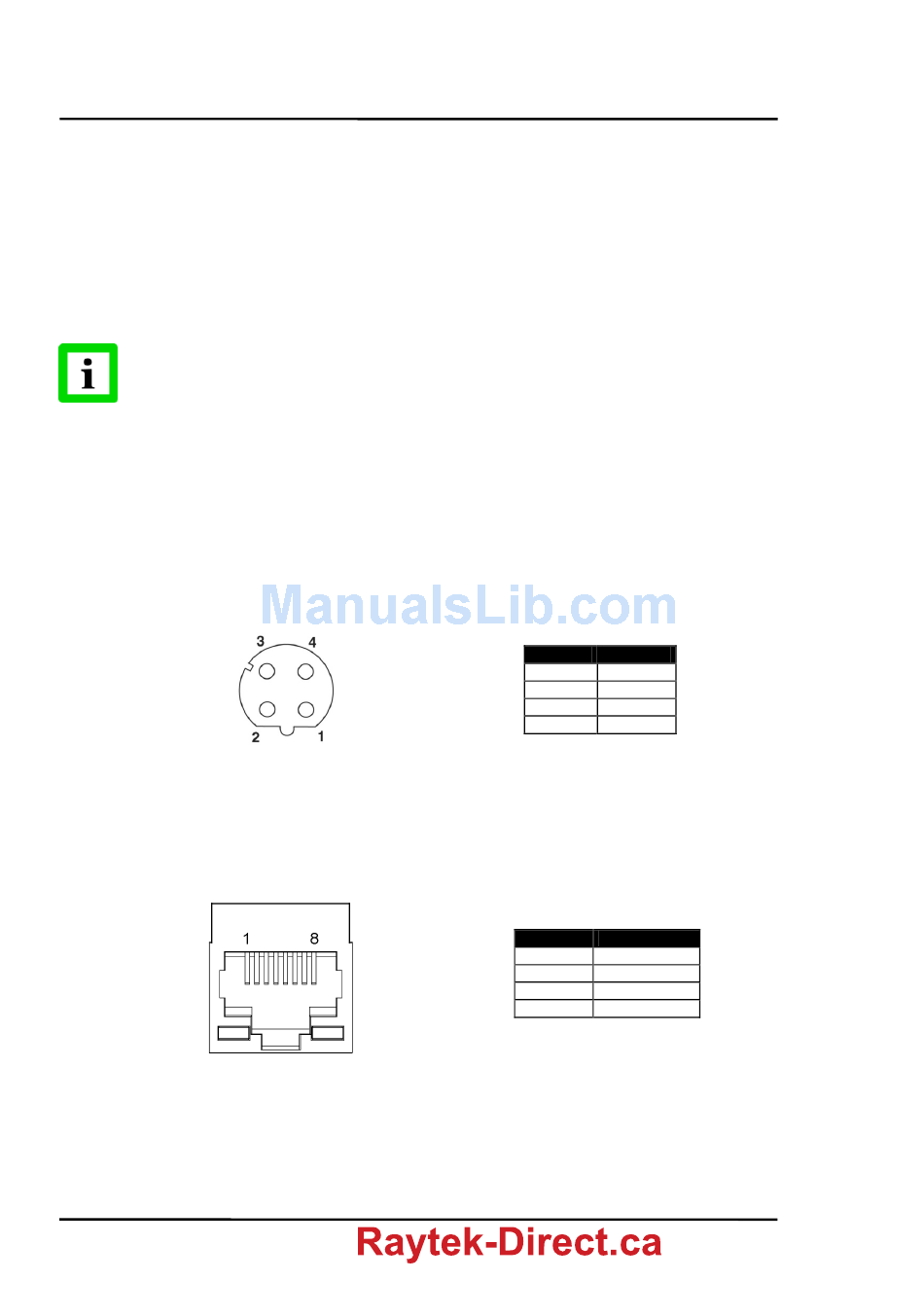

Figure 78: M12 Connector Socket and Pin Assignment
Figure 79: RJ45 Connector Socket and Pin Assignment
ASCII
Rev. F1 05/2013
M12-Pin
1
2
3
4
RJ45-Pin
1
3
2
6
Programming, page 103.
TX+
RX+
TX-
RX-
TX+
RX+
TX-
RX-
MI3
