Installation

5.4.5 EMI Resistance for Comm Box (DIN)

To maintain EMI compliance to CE standards the attached Ferrite cores need to be placed
on all wires! Make sure that the cable shields will be connected to the terminal pin
<Shield>!
Shield wire connected to
terminal pin <Shield>
32
info@Raytek-Direct.ca
self-adhesive shield tape
to wrap round the cable

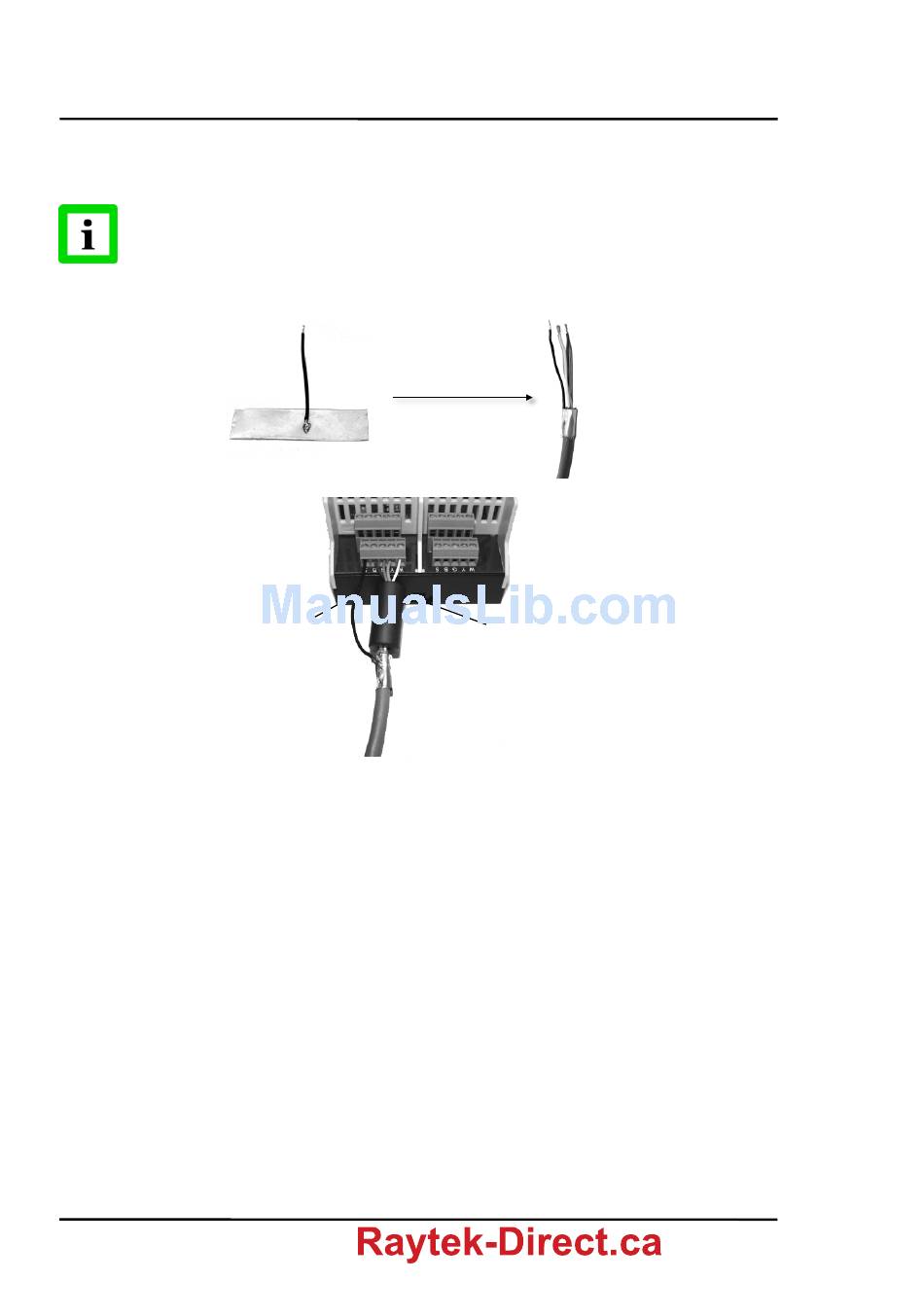

Figure 20: Mounting of Shield Wire and Ferrite Core
Rev. F1 05/2013
Ferrite Core placed on all wires
except the shield wire
