3.5.3 Sensing Head 1M, 2M

3.5.4 Comm Box (metal)
The box is equipped with three cable feed-through ports – two with IP65 compatible sealing glands, a
third sealing gland comes for boxes with fieldbus communications (RS485, Profibus etc.). Boxes
without fieldbus have a plugged expansion feed-through port instead (M12x1.5 thread).
MI3
info@Raytek-Direct.ca
Standard cable length
1 m (3 ft)
Ø 5 mm (0.2 in)

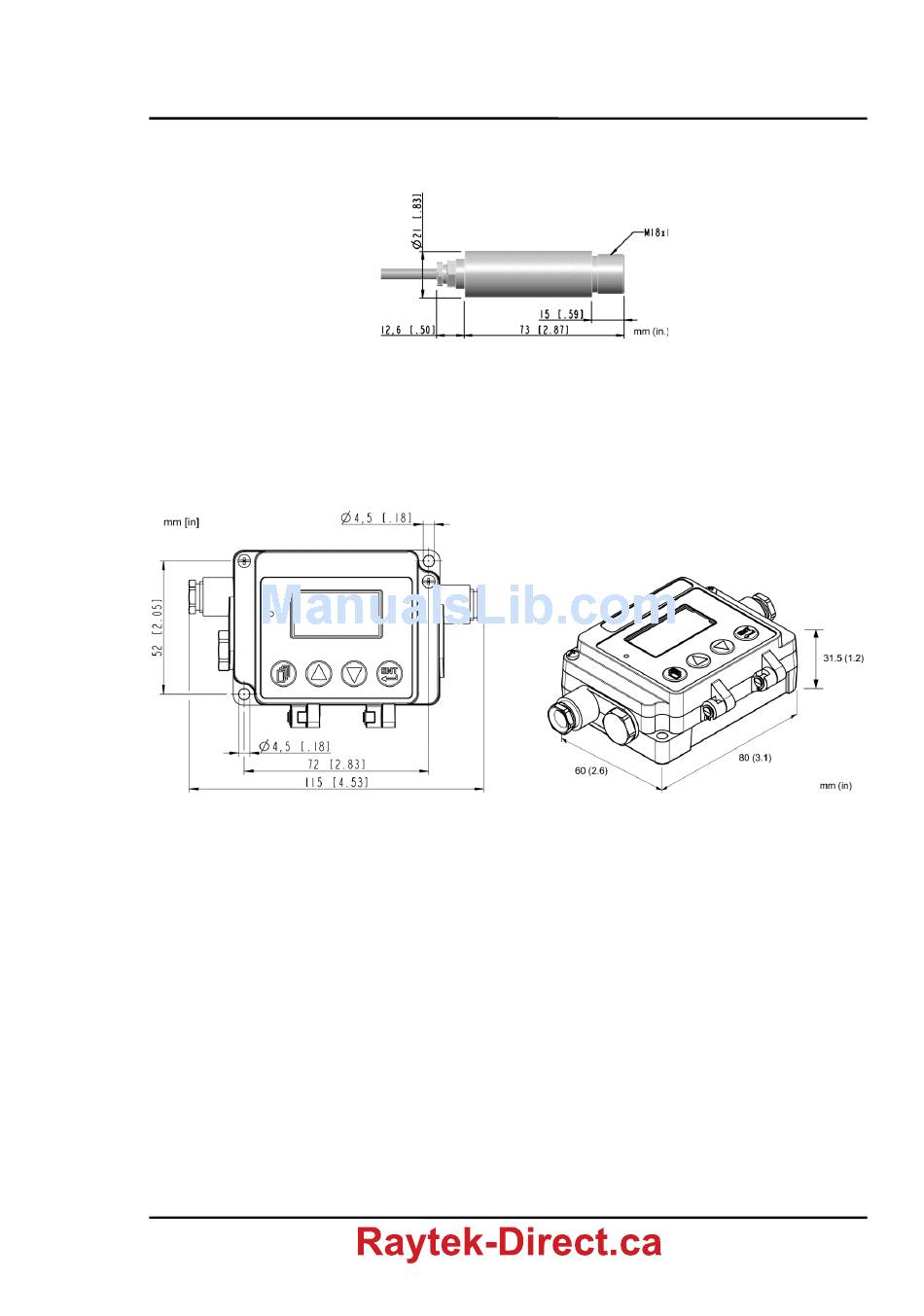

Figure 4: Dimensions of 1M, 2M Sensing Heads
Figure 5: Dimensions of Communication Box
