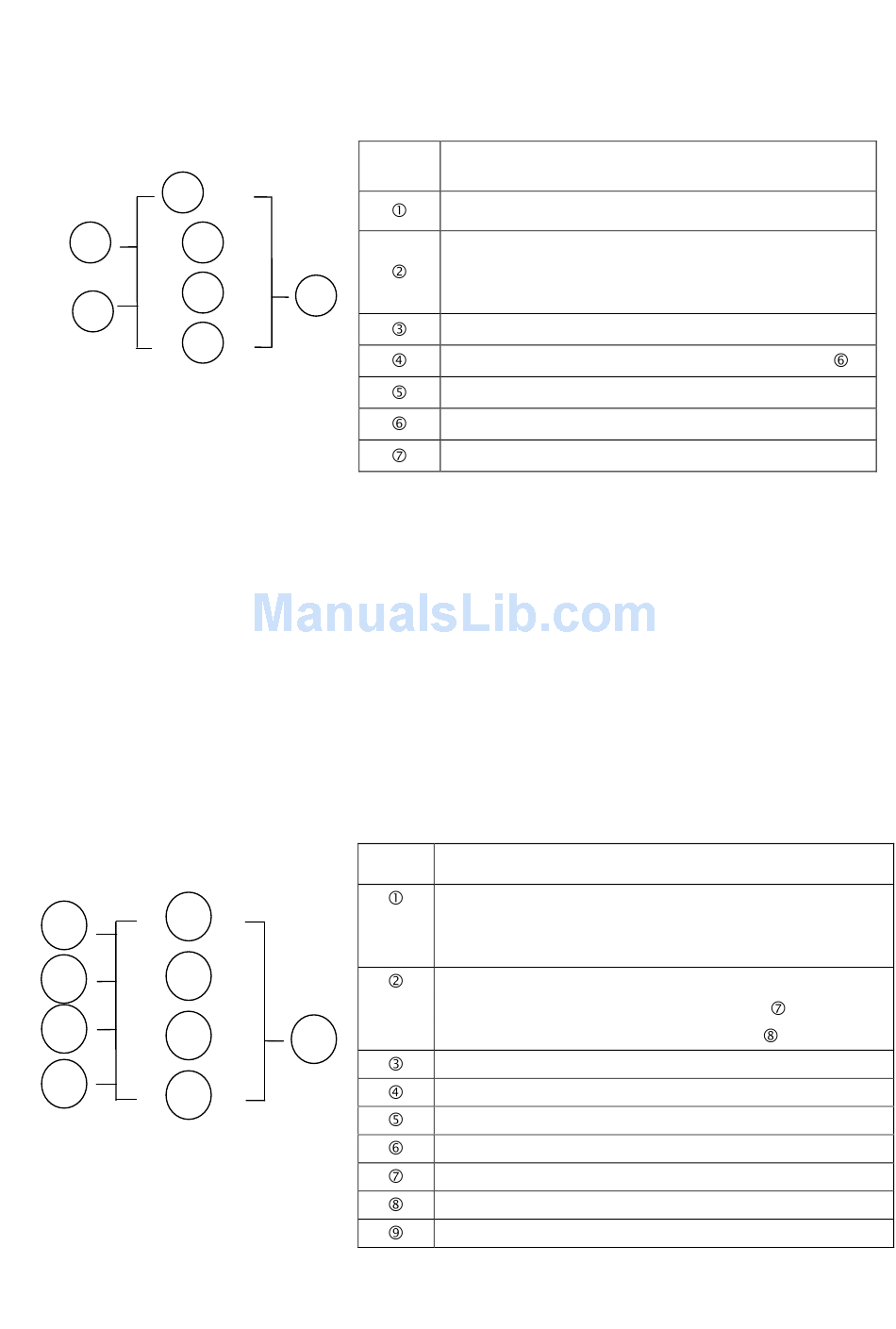

◎ Encoder input Comparing Instruction
1
2 4
5
3
6
(1) Control Mode 1
Encoder Comparing Function: A1/C◎A2 Comparing Output
(2) Control Mode 2
Encoder Comparing Function: A1/C◎A2 Comparing Output
※Comparison Enable/ Disable of the Encoder input value is determined by the Ladder Program ON/OFF.
◎ Running Instruction
5
1
6
2
3
7
4
8
Symbol
Encoder control mode (1-2)
Use (I1 ~ f8) to set counting up or counting down
OFF: counting up (0, 1, 2, 3, 4....)
7
ON: counting down ( ....3, 2, 1, 0)
Use (I1~f8) to Reset counting value.
A1, Encoder Input Value/Encoder dividing ratio( )
A2, Setting comparing value
C, Encoder dividing ratio
Encoder comparing output terminal, H1~H4
Symbol
Running mode could be set via I1~f8
OFF：(FWD)
ON：(REV)
Segment Speed could be set via I1~f8
OFF：Operating at the frequency set on
9 ON：Operating at the frequency set on
Select constant or V3, V5 for Setting Frequency
Select constant or V3, V5 for Preset Speed
Acceleration Time
Deceleration Time
Setting Frequency (Could be a constant or V3, V5)
Segment Speed (Could be a constant or V3, V5)
Instruction code of operation (F1~F8，Total: 8 Groups)
4-65
Chapter 4 Software Index
