Sample:
Input under the Ladder Program Mode
I1 ─ i2 ─ -- ─﹝C3
C3 ─ -- ─ -- ─﹝Q1
┬
-- ─ q1 ─﹝M2
m1
┴
M2

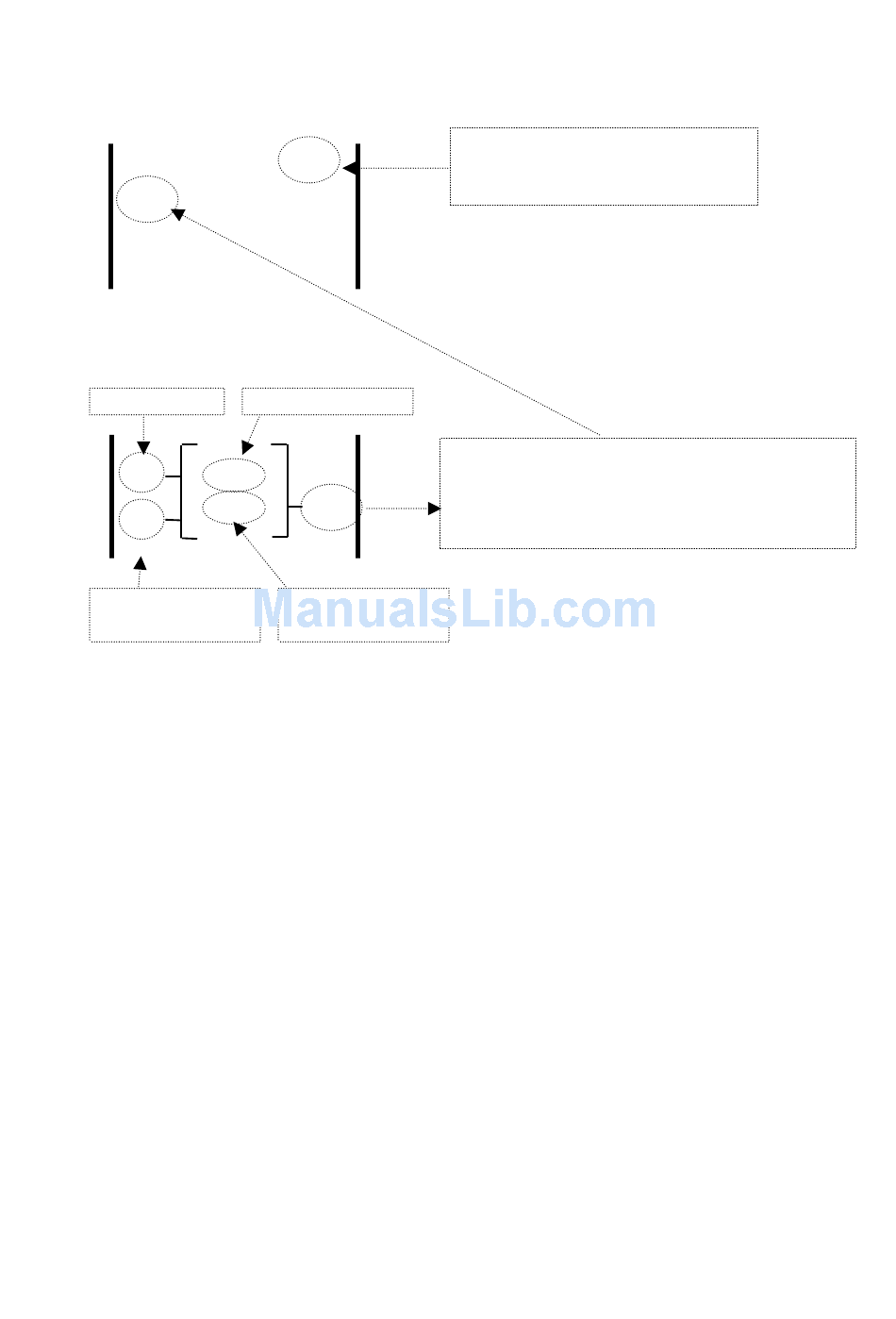

Input under the Function Program Mode
Count up/down
1
│ │ │ │
M2
0000
│ │ │ │ ─ ─ ─ ─
0020
I3
I3 ON the counter
is reset to zero
Current Count Value
┐ ┐ ┐ ┐
C3
┘ ┘ ┘ ┘
Target (Setting) value
for the counter
The ON/OFF of C3 input count pulse
is controlled by I1 and i2.
When the target value is reached, C3 =ON.
The input point C3 in the ladder program should be
ON.
