Parameter Group 1 - Start/Stop and Frequency Control Modes
1-00 : Run Command Source Selection
0000:Keypad
0001:External terminal control
0002:Communication control
0003:Built-in PLC
1.) 1-00=0000 the inverter is controlled by the keypad.
2.) 1-00=0001 the inverter is controlled by the external terminals, and the Stop key for emergency
does work. (Refer to 1-03 description).
Note: 1-00=0001, please refer to parameter group 2-00, 2-01, 2-02 and 2-03 for detail description
to make secure of persons and machines.
3.) 1-00=0002 the inverter is communication controlled.
4.) 1-00=0003 the inverter is built-in PLC controlled, and 1-06 preset value is invalid.
1-01 : Operation modes for external terminals
0000:Forward/stop-reverse/stop
0001:Run/stop-forward/reverse
0002:3-wire control mode -run/stop
1.) When operation command 1-00 = 0001 (external terminal), 1-01 is valid.
2.) When operation command 1-00 = 0001 (external terminal control), the stop button for emergency
is available. (Refer to 1-03 for detail description).
3.) That both forward and reverse commands are ON will be treated as STOP.

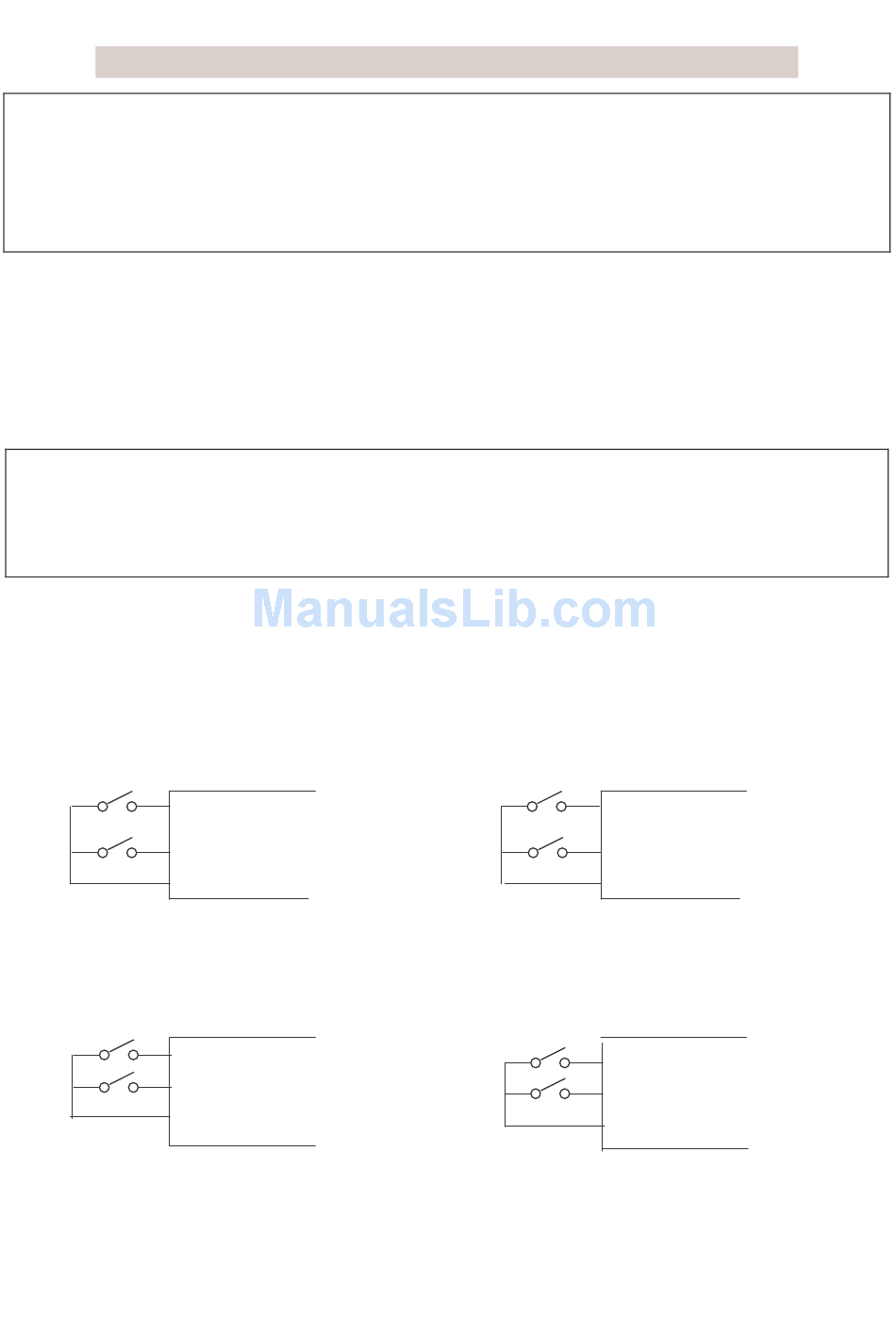

1-01 = 0000, Control mode is as below:
(1).Input signal is NPN:
S1 ( forward )
S2 ( reverse )
COM (0V common )
1-01 = 0001, Control mode is as below:
(1). Input signal is NPN:
S1 ( run )
S2 ( forward/reverse )
COM (0Vcommon )
(2). Input signal is PNP:
(2). Input signal is PNP:
4-21
Chapter 4 Software Index
S1 ( forward )
S2 ( reverse )
24V (common )
15 正轉
S1 ( run )
S2 ( forward/reverse )
24V (common )
