4.5.3 Application Instructions

◎ Counter
1
2 4
5
3

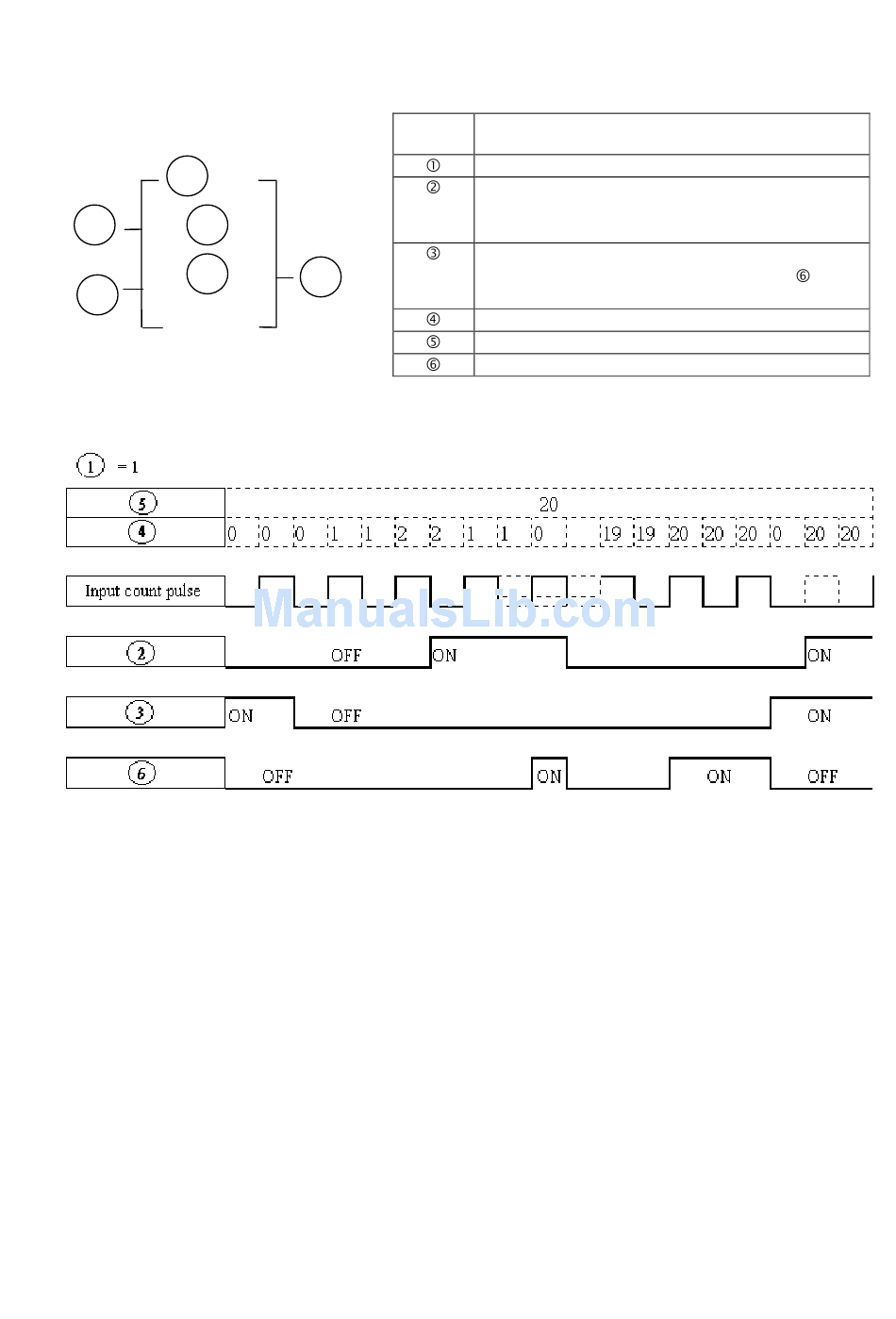

(1) Counter Mode 1
Symbol
Counting Mode (1-4)
Use (I1 ~ f8) to set counting up or counting down
OFF: counting up (0, 1, 2, 3, 4....)
ON: counting down ( ....3, 2, 1, 0)
Use (I1 ~ f8) to RESET the counting value
6
ON: the counter is initialized to zero and
OFF: the counter continues to count
Preset Counting Value
Target (Setting) Value
Code of the counter (C1 ~ C4 total: 4 groups).
4-57
Chapter 4 Software Index
Description
OFF
