Chapter 4 Software Index
11-7： ： ： ： Output Lag Filter TimeÆÉ ÆÉ ÆÉÆÉ sÆÊ ÆÊ ÆÊÆÊ ： ： ： ： 0.0 - 2.5
11-7 ： update time for output frequency.
※ Note: PID Function is available for controlling the output flow, external fan flow and temperature.

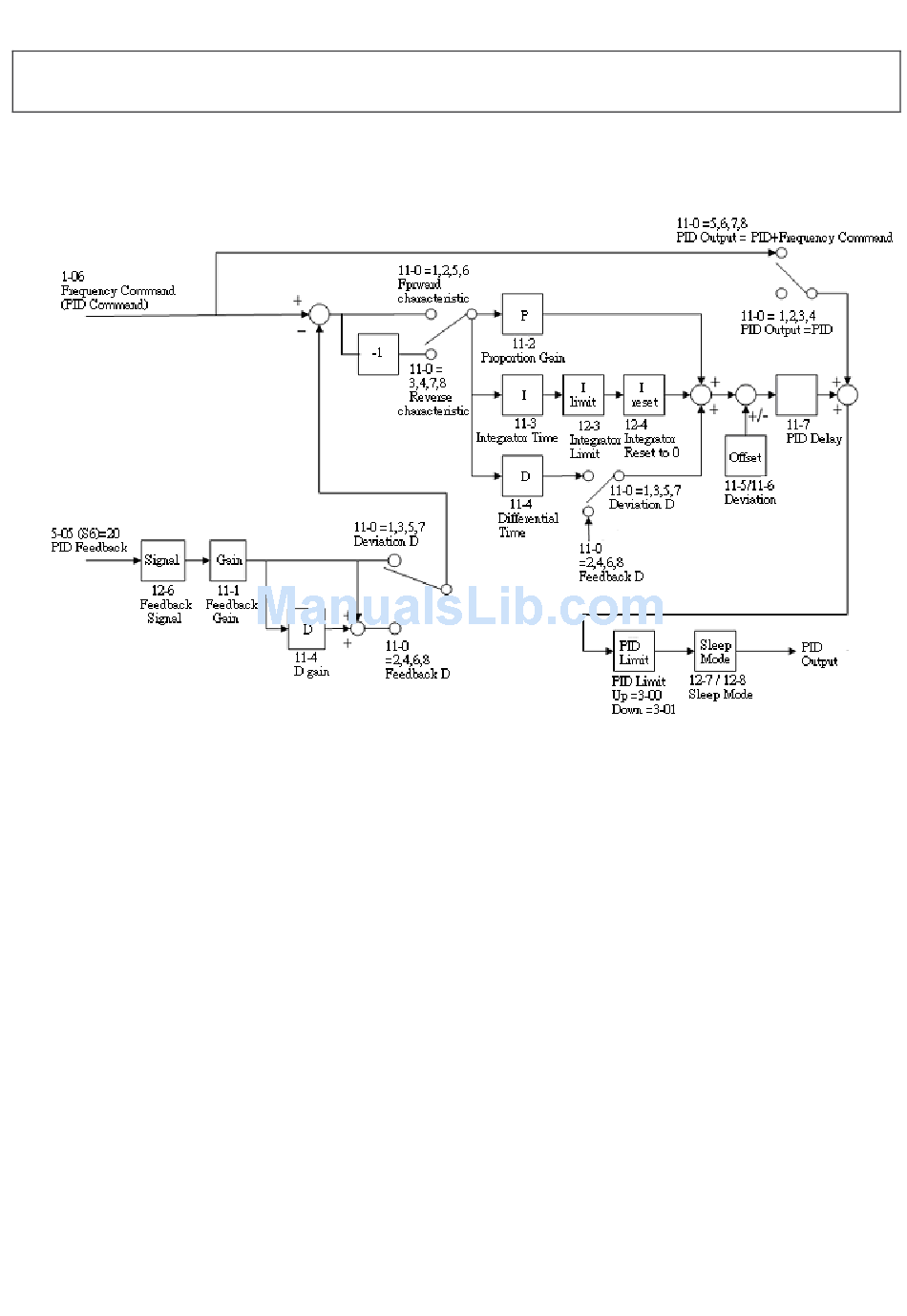

The controlling flow is as follow:
1. Performing PID control, set 5-05=20, AI2 (S6) on TM2 as PID feedback signal.
2. The target value of above diagram is the 1-06 input frequency.
3. There are two ways to see the PID feedback signal, one is using the Keypad switch display (4-06
must be setting as 1), the other is using analog output FM+ (8-00 must be setting as 5).
4-50
