GE VAT200 Quick Start Manual page 26

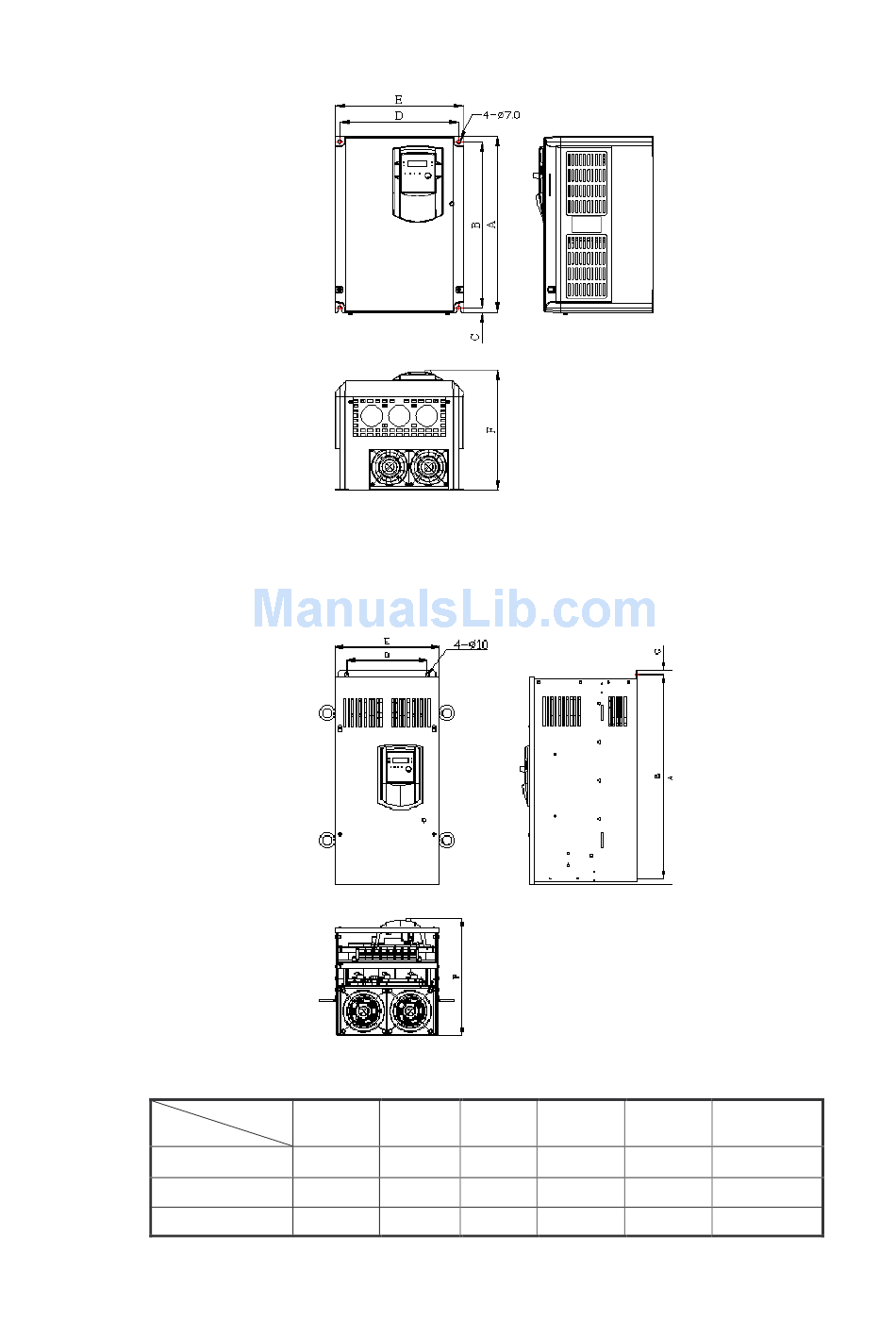

(4) Frame4：Three phase models U203__: X15K0, X18K5, X22K0
(5) Frame5：Three phase models U203__: X30K0, X37K0
(6) Frame6：Three phase models U203__: X45K0, X55K0
LENGTH
MODEL
Frame4
Frame5
Frame6
（Open Chassis Type－IP00）
A B
360/14.2 340/13.4 10/0.4
553/21.8 530/20.9 10/0.4
653/25.7 630/24.8 10/0.4
3-17
Chapter 3 Ambient Environment and Installation
Unit : mm/inch
C D
245/9.6 265/10.4
210/8.3 269/10.6
250/9.8 308/12.1 308.6/15.2
E F
247.5/9.7
303.6/12
