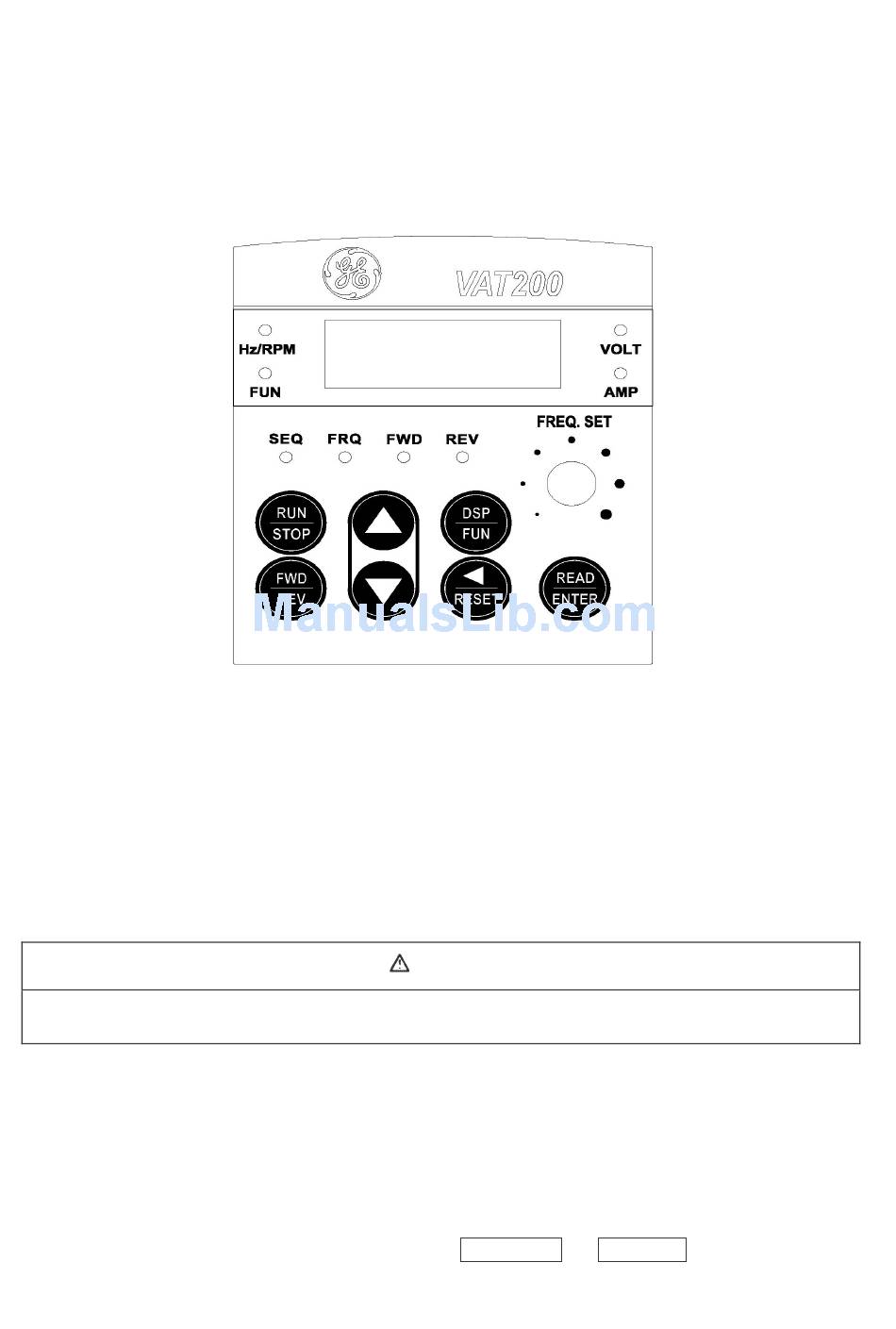

4.1 Keypad Description

4.1.1Keypad Display and Operation Instruction

1. SEQ LED：1_00 =1/2/3, LED Lit.
2. FRQ LED：1_06 = 1/2/3/4, LED Lit
3. FWD LED：Forward Direction, LED action(Flash in stop, Keep Lit in operation).
4. REV LED：Reverse Direction, LED action(Flash in stop, Keep Lit in operation).
5. Four action of FUN、Hz/RPM、VOLT、AMP LED and display of four 7-segment display, refer to
operation description of the keypad.
6. LCD keypad without FUN, Hz/RPM, VOLT, AMP LED and FREQ.SET knob.
To avoid impairing the keypad, do not operate it with screwdriver or sharp and hard tool.
Remote/Local Mode
․Local mode – Operation Command by RUN/STOP key on keypad
– Frequency Command by ▲▼ key on keypad
․Remote mode – Operating Command by 1-00
– Frequency Command by 1-06
To Change the Remote/Local mode, you must push FWD/REV and《/RESET key at the same time.
The Remote /Local mode of change can used in STOP mode, it can't used in Run mode.
