5.3.7. Preset operations

The matrix has 6 user programmable presets. Each preset stores a configuration regarding
the crosspoint and mute state for all inputs/outputs. All presets are stored in a non-volatile
memory; the router keeps presets even in the case of power down. Memory numbers are
assigned to source buttons.

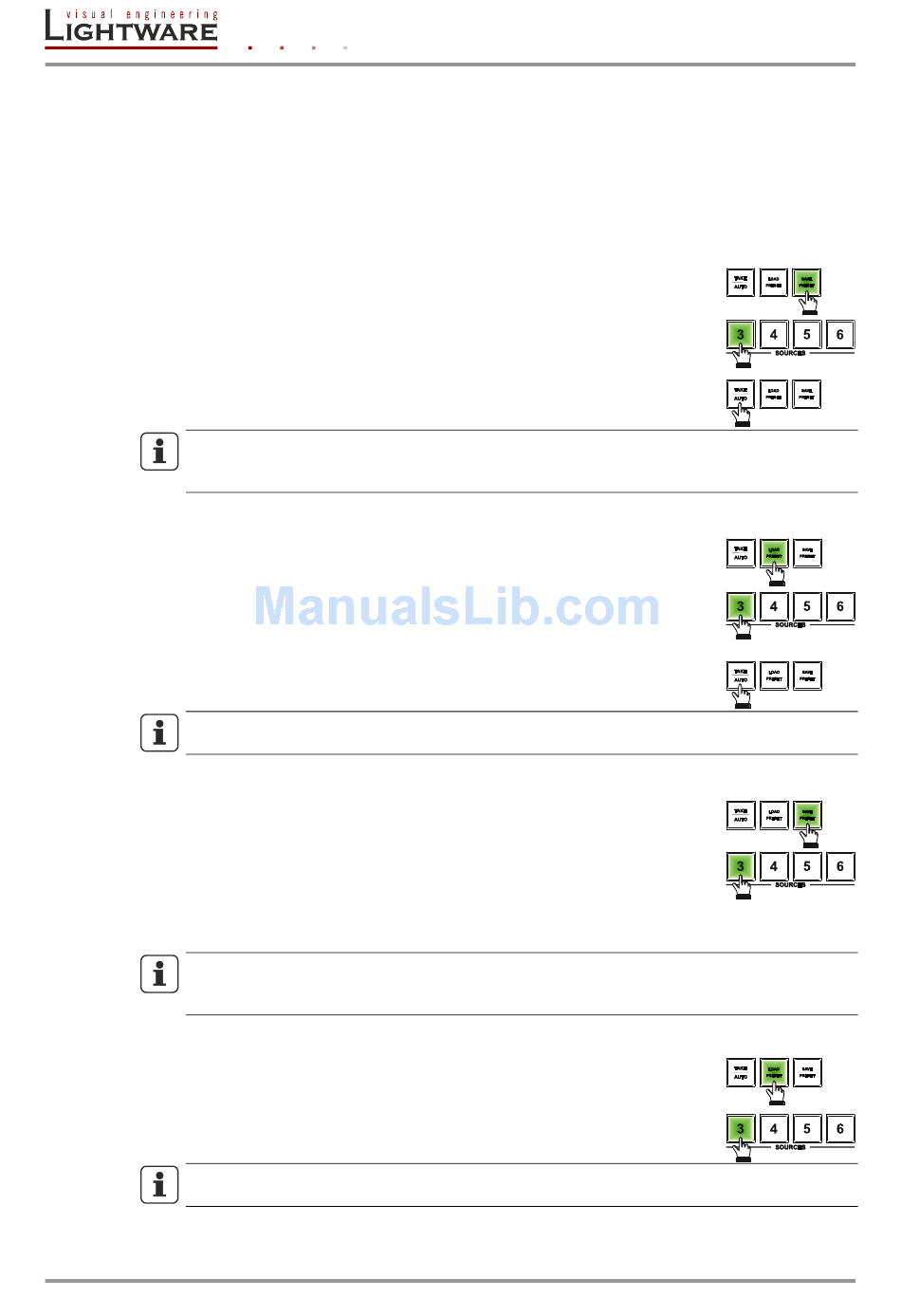

Saving a Preset in TAKE mode
Step 1. Create the desired connections which have to be saved.
Step 2. Press and release the Save preset button.
Step 3. Press and release a source button according to the desired
Step 4. Press and release Take button. Now the current configuration is
INFO
Preset save action always stores the current configuration for all outputs including mute
state, but ignore lock state.
Loading a Preset in TAKE mode
Step 1. Press and release Load preset button.
Step 2. Press and release a source button according to the desired
Step 3. Press and release Take button. Now the selected preset is
INFO
Loading a preset modifies all output states that are not currently locked.
Saving a Preset in AUTOTAKE mode
Step 1. Create the desired connections which have to be saved.
Step 2. Press and release Save preset button.
Step 3. Press and release a source button according to the desired
INFO
Preset save action always stores the current configuration for all outputs including mute
state, but ignoring lock state.
Loading a Preset in AUTOTAKE mode
Step 1. Press and release Load preset button.
Step 2. Press and release a source button according to the desired
INFO
Loading a preset modifies all output states that are not currently locked.
Page 34 / 119
memory address.
stored in the selected memory.
memory address.
loaded.
memory address. Now the current configuration is stored in the selected memory.
memory address. Now the selected preset is loaded.
