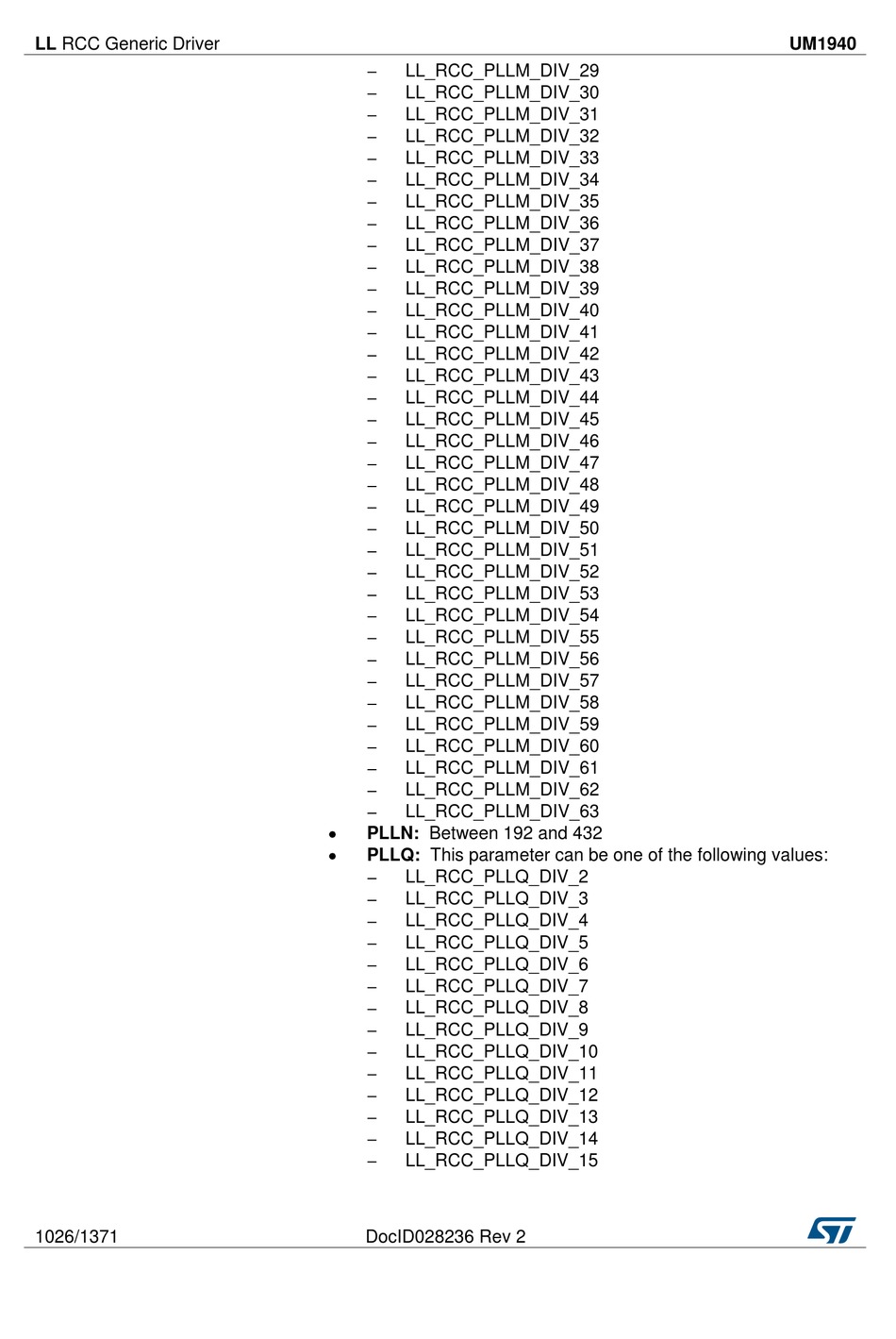

LL RCC Generic Driver
1026/1371
LL_RCC_PLLM_DIV_29
LL_RCC_PLLM_DIV_30
LL_RCC_PLLM_DIV_31
LL_RCC_PLLM_DIV_32
LL_RCC_PLLM_DIV_33
LL_RCC_PLLM_DIV_34
LL_RCC_PLLM_DIV_35
LL_RCC_PLLM_DIV_36
LL_RCC_PLLM_DIV_37
LL_RCC_PLLM_DIV_38
LL_RCC_PLLM_DIV_39
LL_RCC_PLLM_DIV_40
LL_RCC_PLLM_DIV_41
LL_RCC_PLLM_DIV_42
LL_RCC_PLLM_DIV_43
LL_RCC_PLLM_DIV_44
LL_RCC_PLLM_DIV_45
LL_RCC_PLLM_DIV_46
LL_RCC_PLLM_DIV_47
LL_RCC_PLLM_DIV_48
LL_RCC_PLLM_DIV_49
LL_RCC_PLLM_DIV_50
LL_RCC_PLLM_DIV_51
LL_RCC_PLLM_DIV_52
LL_RCC_PLLM_DIV_53
LL_RCC_PLLM_DIV_54
LL_RCC_PLLM_DIV_55
LL_RCC_PLLM_DIV_56
LL_RCC_PLLM_DIV_57
LL_RCC_PLLM_DIV_58
LL_RCC_PLLM_DIV_59
LL_RCC_PLLM_DIV_60
LL_RCC_PLLM_DIV_61
LL_RCC_PLLM_DIV_62
LL_RCC_PLLM_DIV_63
PLLN: Between 192 and 432
PLLQ: This parameter can be one of the following values:
LL_RCC_PLLQ_DIV_2
LL_RCC_PLLQ_DIV_3
LL_RCC_PLLQ_DIV_4
LL_RCC_PLLQ_DIV_5
LL_RCC_PLLQ_DIV_6
LL_RCC_PLLQ_DIV_7
LL_RCC_PLLQ_DIV_8
LL_RCC_PLLQ_DIV_9
LL_RCC_PLLQ_DIV_10
LL_RCC_PLLQ_DIV_11
LL_RCC_PLLQ_DIV_12
LL_RCC_PLLQ_DIV_13
LL_RCC_PLLQ_DIV_14
LL_RCC_PLLQ_DIV_15
DocID028236 Rev 2
UM1940
