Installation

3.3.5 Terminal Locations - Frame Size E9

3 3
383
[15.1]

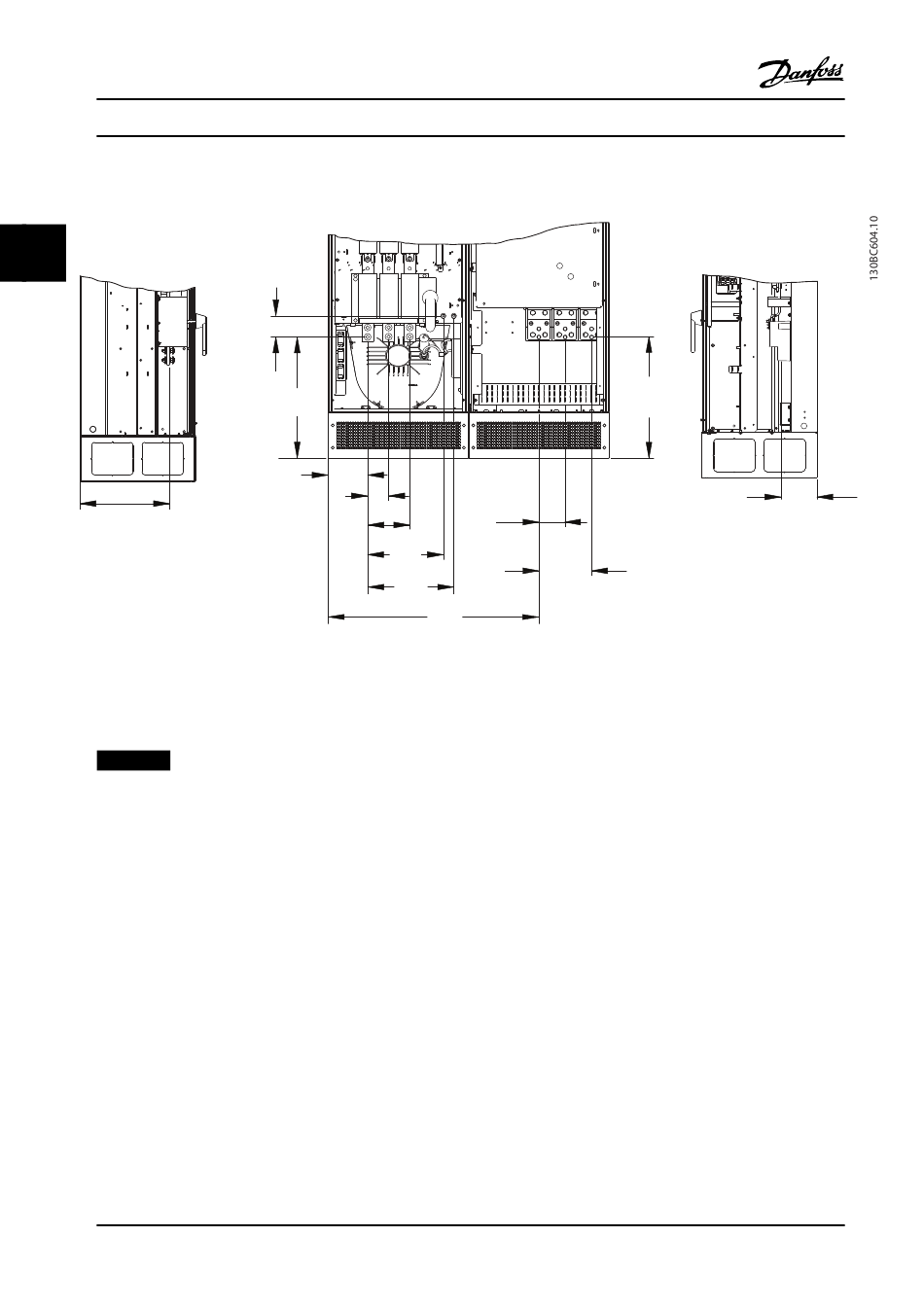

Figure 3.14 Frame Size E9 Terminal Locations
Allow for bend radius of heavy power cables.
NOTICE!
All E-frames are available with standard input terminals, fuse, or disconnect switch
30
VLT
132–630 kW
90.0
[3.5]
518.0
[20.4]
168.7
[6.6]
MAINS
INPUT TERMINAL
180.0
[7.1]
