X-Ref Target - Figure 5-1
The test bench for the SMPTE cores (TX and RX) consists of the major test bench
components listed in
Table 5-1: Test Bench Components and Descriptions
Test Bench Components
SDI Video Generator
Dummy DDR
XGMAC Bridge
SDI Stream Data Checker Compares the raw data output received by the SMPTE RX core with the
LogiCORE IP SMPTE 2022-5/6 RX v4.0
PG033 October 1, 2014

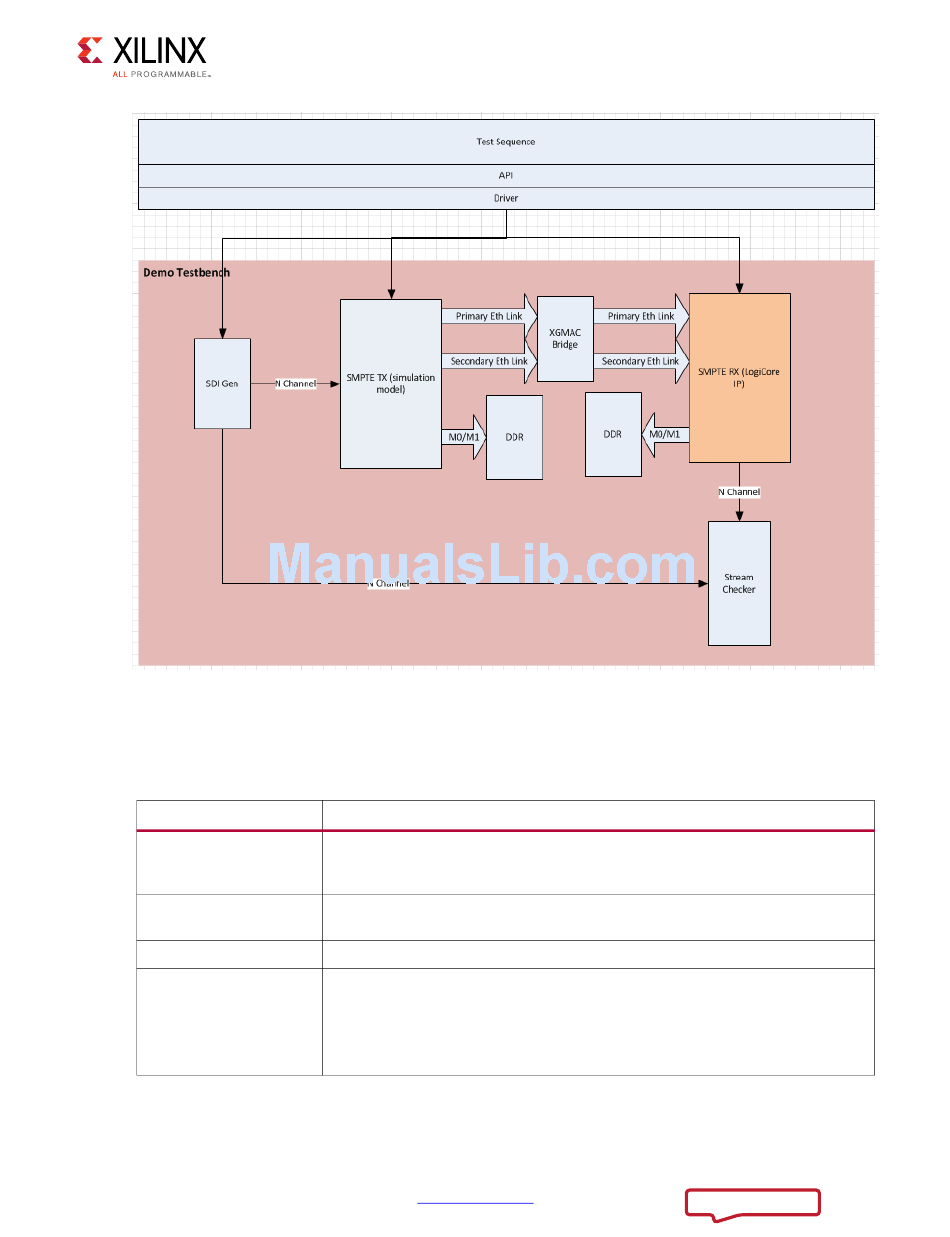

Figure 5-1: Test Bench Architecture
Table 5-1:
Provides the video inputs to the SMPTE TX Core based on the SDI format
selection (3G/HD/SD) configured by the user via SDI Video Generator
Configuration Module setup.
Acts as dummy external storage that used by the cores and network emulator
during the pkt transaction.
Acts as a dummy 10G Ethernet MAC Bridge
originally output data from SDI Video Generator.
Assert error if there is any data mismatched.
Also detects SOF on the input and output streams to signal successful data
transmission and reception by the TX and RX core respectively.
