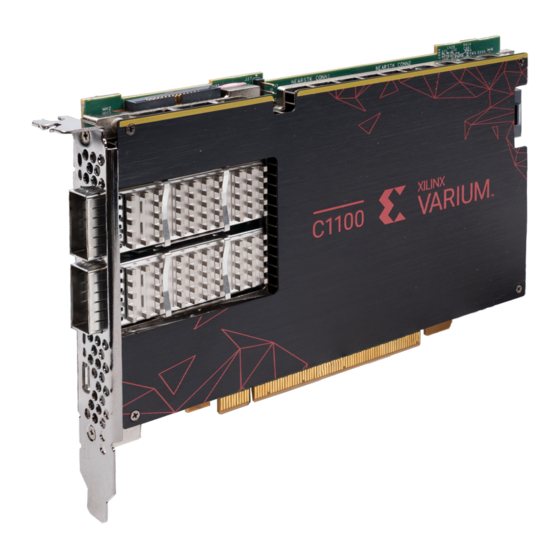

Varium C1100 Compute
Adaptor
Installation Guide
UG1525 (v1.1) March 8, 2022
Xilinx is creating an environment where employees, customers, and
partners feel welcome and included. To that end, we're removing non-
inclusive language from our products and related collateral. We've
launched an internal initiative to remove language that could exclude
people or reinforce historical biases, including terms embedded in our
software and IPs. You may still find examples of non-inclusive
language in our older products as we work to make these changes and
align with evolving industry standards. Follow this
link
for more
information.
Advertisement
Table of Contents
Related Manuals for Xilinx Varium C1100
Summary of Contents for Xilinx Varium C1100
- Page 1 Adaptor Installation Guide UG1525 (v1.1) March 8, 2022 Xilinx is creating an environment where employees, customers, and partners feel welcome and included. To that end, we’re removing non- inclusive language from our products and related collateral. We’ve launched an internal initiative to remove language that could exclude people or reinforce historical biases, including terms embedded in our software and IPs.
-
Page 2: Table Of Contents
Appendix B: Additional Resources and Legal Notices ......24 Xilinx Resources.........................24 Documentation Navigator and Design Hubs.................24 References..........................24 Revision History......................... 25 Please Read: Important Legal Notices................... 25 UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide... -
Page 3: Chapter 1: Introduction
This document provides hardware and software installation procedures for the Varium™ C1100 compute adaptor using XRT 2021.1 and later. For installation procedures using previous XRT versions, see v1.0 of the Varium C1100 Compute Adaptor Installation Guide (UG1525). Different system configurations are available for running, developing, and debugging applications on your Varium C1100 compute adaptor: •... -
Page 4: Minimum System Requirements
UltraScale+ device configurable over USB/JTAG and Quad- SPI configuration flash memory UART UART access through the micro-USB connector Minimum System Requirements The minimum system requirements for running the Varium C1100 compute adaptor are listed in the following table. Table 2: Minimum System Requirements Component Requirement... -
Page 5: Chapter 2: Adaptor Interfaces And Details
PCIe Connector Micro-USB Connector Note: Varium C1100 compute adaptor is designed to be installed into a data center server, where controlled air flow provides direct cooling. If the cooling enclosure is removed from the adaptor and the adaptor is powered-up, external fan cooling airflow MUST be applied to prevent over-temperature shut- down and possible damage to the adaptor electronics. -
Page 6: Chapter 3: Adaptor Installation Procedures
• Halten sie ihren Arbeitsbereich und den Computer / Server sauber und frei von Ablagerungen. • Ziehen sie vor dem Öffnen der Computer / Systemabdeckung das Netzkabel ab. UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide... - Page 7 • Put the adaptor down only on an antistatic surface such as the bag supplied in your kit. • If you are returning the adaptor to Xilinx Product Support, place it back in its antistatic bag immediately. Attention aux Décharge Électrostatique (ESD) L'ESD peut endommager les composants électroniques lorsqu'ils sont mal manipulés, et peut...
-
Page 8: Before You Begin
• Legen sie der adapter nur auf einer antistatischen Oberfläche ab, z.B. dem antistatischen Beutel der mit dem Kit mitgeliefert wurde. • Wenn sie der adapter an den Xilinx Product Support zurücksenden, legen Sie sie bitte sofort wieder in den antistatischen Beutel. - Page 9 Varium C1100 compute adaptor. 4. Plug the Varium C1100 compute adaptor into the PCIe x16 slot on the motherboard. 5. Connect the AUX power connector to the Varium C1100 compute adaptor, ensure the plug is mechanically fixed (with the click).
- Page 10 Chapter 3: Adaptor Installation Procedures If you do not see a message similar to the previous one, see Chapter 6: Troubleshooting. UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide...
-
Page 11: Chapter 4: Installing The Deployment Software
Use the following steps to download and install the XRT and deployment platforms using .rpm installation package. For details on upgrading or downgrading the XRT and deployment platform, see Modifying XRT Platform. UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide... - Page 12 Varium C1100 compute adaptor product page, download the Xilinx Runtime (XRT) and deployment target platform installation packages associated with your OS and version. To download the packages, click on the displayed package names. 5. Install the XRT installation package by running the following command from within the directory where the XRT installation packages reside.
- Page 13 It is the identical command used to flash the platform firmware on the card. This can take several minutes to complete. $ sudo /opt/xilinx/xrt/bin/xbmgmt program --base --device <management BDF> Where <management BDF> is the card to be programmed. To obtain the device...
-
Page 14: Xrt And Deployment Package Installation Procedures On Ubuntu
4. Install the deployment packages. From within the directory where the installation packages were unpacked, run the following command. This will install all deployment packages. $ sudo apt install ./*.deb UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide... - Page 15 Partition package installed successfully. Please flash card manually by running below command: $ sudo /opt/xilinx/xrt/bin/xbmgmt flash --update --shell <shell_name> 5. Flash the platform firmware on the card. With XRT 2021.1 or greater, you must use the following new command to flash the card, rather than the command displayed in the previous system message.
- Page 16 It is the identical command used to flash the platform firmware on the card. This can take several minutes to complete. $ sudo /opt/xilinx/xrt/bin/xbmgmt program --base --device <management BDF> Where <management BDF> is the card to be programmed. To obtain the device...
-
Page 17: Chapter 5: Card Bring-Up And Validation
Use the following command in csh shell: $ source /opt/xilinx/xrt/setup.csh Use the following command in bash shell: $ source /opt/xilinx/xrt/setup.sh Running lspci Confirm the card is detected by the OS: UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide... -
Page 18: Confirm Firmware Installation
2. If the card is successfully installed and found by the operating system, you will see a message similar to the following. af:00.0 Processing accelerators: Xilinx Corporation Device 5058 Subsystem: Xilinx Corporation Device 000e Flags: bus master, fast devsel, latency 0, NUMA node 1... -
Page 19: Card Validation
/opt/xilinx/xrt/bin/xbutil validate --device <user BDF> --verbose Where <user BDF> is the card to be programmed. To obtain the device management BDF, see Displaying Card BDF Values. UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide... - Page 20 Test Status : [PASSED] ---------------------------------------------------------------------------- Test 7 [0000:af:00.1] : Bandwidth kernel Description : Run 'bandwidth kernel' and check the throughput Xclbin : /opt/xilinx/firmware/u55n/gen3x4-xdma/base/test/ bandwidth.xclbin Testcase : /opt/xilinx/xrt/test/kernel_bw.exe UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide...
- Page 21 Description : Run decoder test Details : Verify xclbin not available or shell partition is not programmed. Skipping validation. Test Status : [SKIPPED] ---------------------------------------------------------------------------- Validation completed UG1525 (v1.1) March 8, 2022 www.xilinx.com Send Feedback Varium C1100 Compute Adaptor Installation Guide...
-
Page 22: Chapter 6: Troubleshooting
Auxiliary voltage and current values are not close to zero. /opt/xilinx/xrt/bin/xbutil examine -r electrical --device <user bdf> Where <user BDF> is the card to be programmed. To obtain the device management BDF, Displaying Card BDF Values. -
Page 23: Appendix A: Reverting The Card To Factory Image
The Varium™ C1100 compute adaptor can be reverted to the factory image, also known as golden. This requires that XRT release 2020.1 or later is installed on the same system as the Varium C1100 compute adaptor. For more information, see AR71757. UG1525 (v1.1) March 8, 2022 www.xilinx.com... -
Page 24: Appendix B: Additional Resources And Legal Notices
• On Windows, select Start → All Programs → Xilinx Design Tools → DocNav. • At the Linux command prompt, enter docnav. Xilinx Design Hubs provide links to documentation organized by design tasks and other topics, which you can use to learn key concepts and address frequently asked questions. To access the Design Hubs: •... -
Page 25: Revision History
The information disclosed to you hereunder (the "Materials") is provided solely for the selection and use of Xilinx products. To the maximum extent permitted by applicable law: (1) Materials are made available "AS IS" and with all faults, Xilinx hereby DISCLAIMS ALL WARRANTIES AND... - Page 26 IP cores may be subject to warranty and support terms contained in a license issued to you by Xilinx. Xilinx products are not designed or intended to be fail-safe or for use in any application requiring fail-safe performance; you assume sole risk and liability for...
