HD3070 SETUP
Plasma interface
assembly
A
126
140
B
C
D
THC.80
1XPCB1 PC board
Figure 3a-1

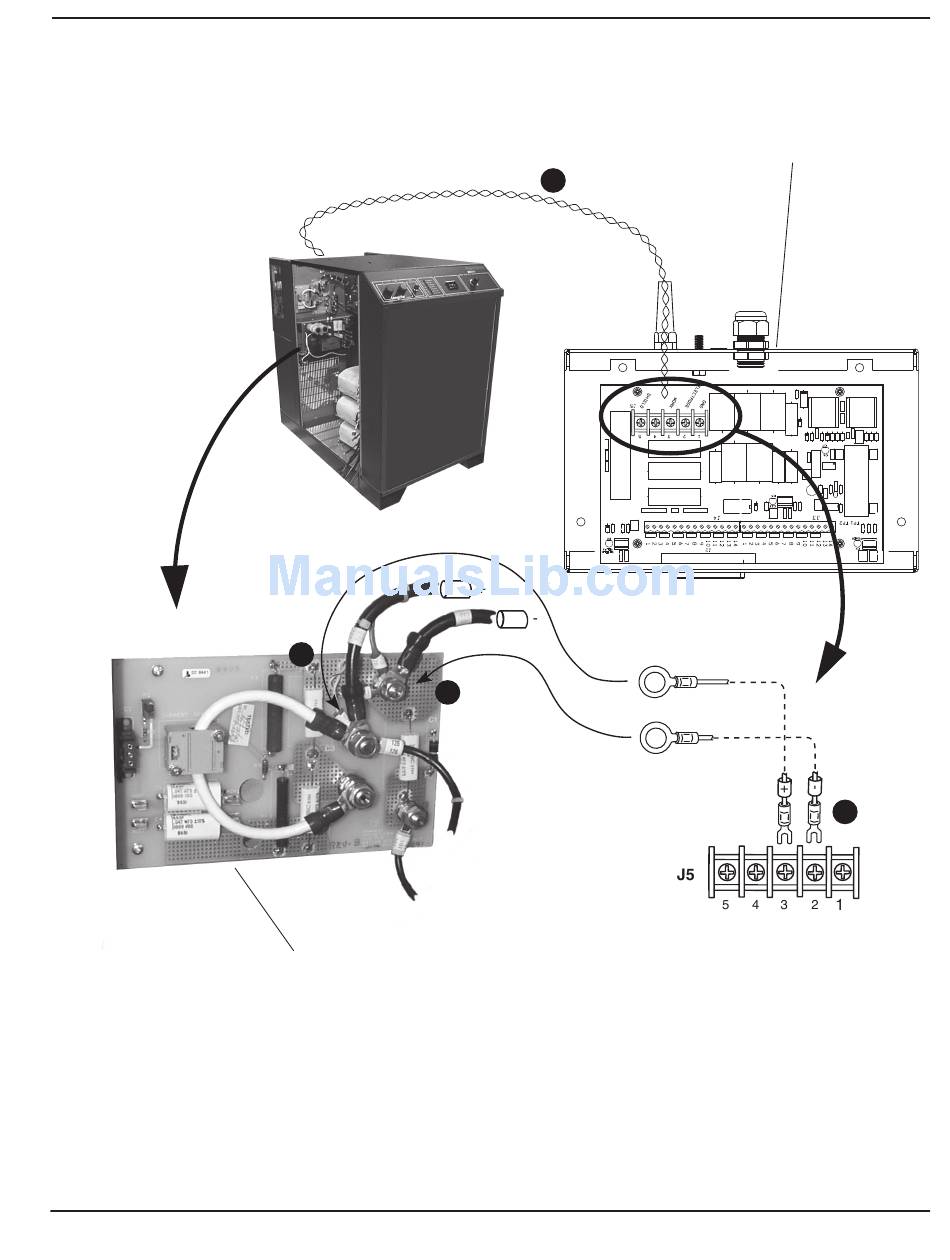

HD3070 electrode and work lead arc voltage wires connection
CommandTHC for X-Y Table Instruction Manual
3a-3
11
