OPERATION

Pendant display screens

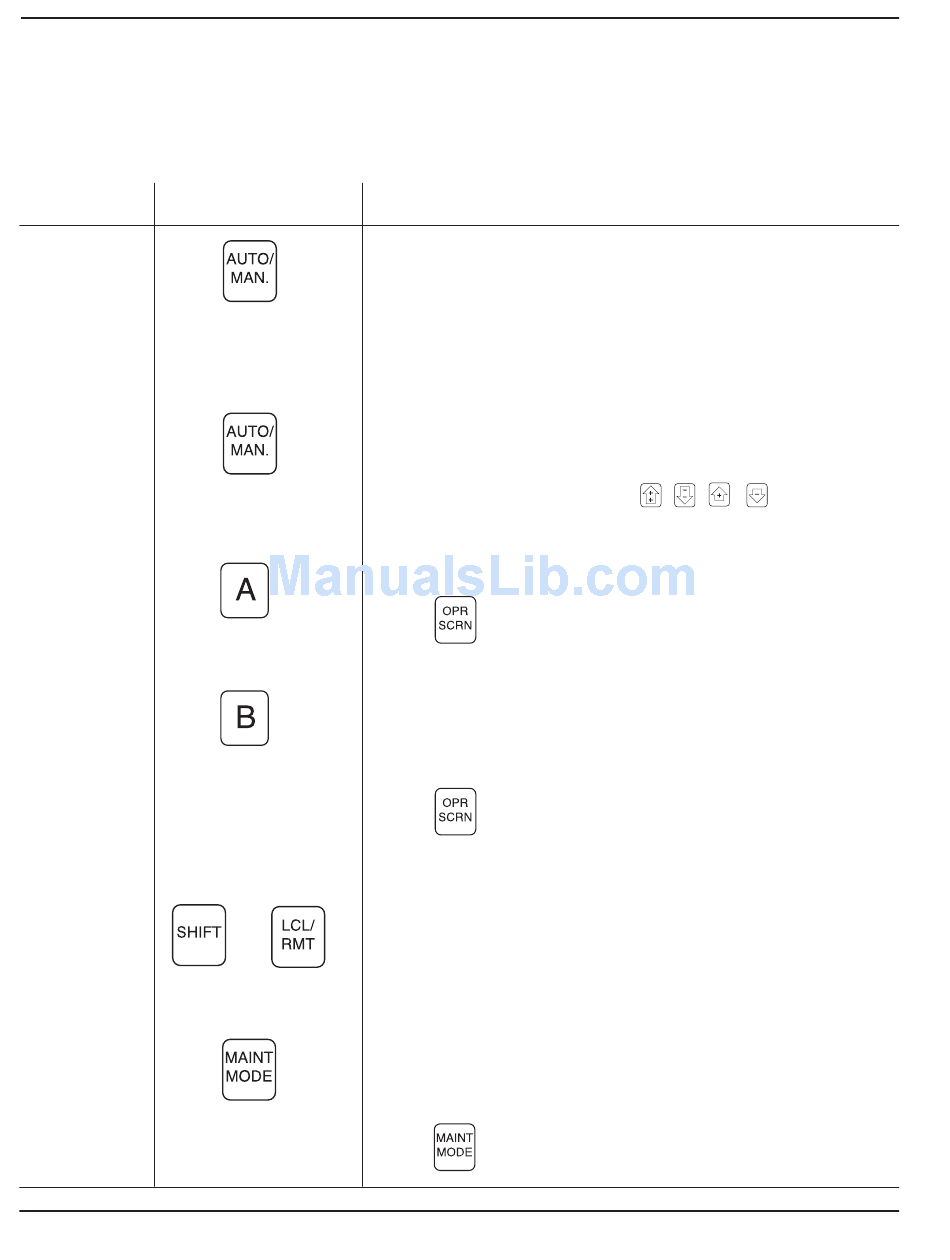

Pendant display screens are shown in Figure 4-3.
TO GET TO
SCREEN THIS SCREEN
AUTOMATIC
Press
OPERATION
MANUAL
Press
OPERATION
SETUP A
Press
Press
DIAGNOSTIC B
REMOTE
Press
MODE
or from CNC
MAINTENANCE Press
MODE
4-4
5
FUNCTION
Can view and adjust basic operating parameters.
Can perform initial height sensing (IHS).
Automatic voltage control (AVC) is active. Torch height is automatically
adjusted during a cut to maintain the displayed
Set Arc Volts.
Torch height can be changed (stationary or during a cut)
by pressing the yellow increment (arrow up) or decrement
(arrow down) keys.
No IHS, AVC, or Rapid Pull-back.
Can view and adjust detailed operating parameters.
Press
Can perform limited on-site testing of the THC controls, cabling and
lifter. Proper testing requires that the lifter have an unobstructed path
through full length of stroke.
Also displays Firmware revision and type of lifter installed.
Press
Turns system control over to the CNC.
No parameters can be changed from the pendant.
Press same keys to return to main operation screen.
and
Informs operator that the system is in the maintenance mode. The lifter
brake is locked and the system will not respond to the Cycle Start
signal.
Press
to return to main operation screen.
to return to main operation screen.
to return to main operation screen.
