HPR SETUP

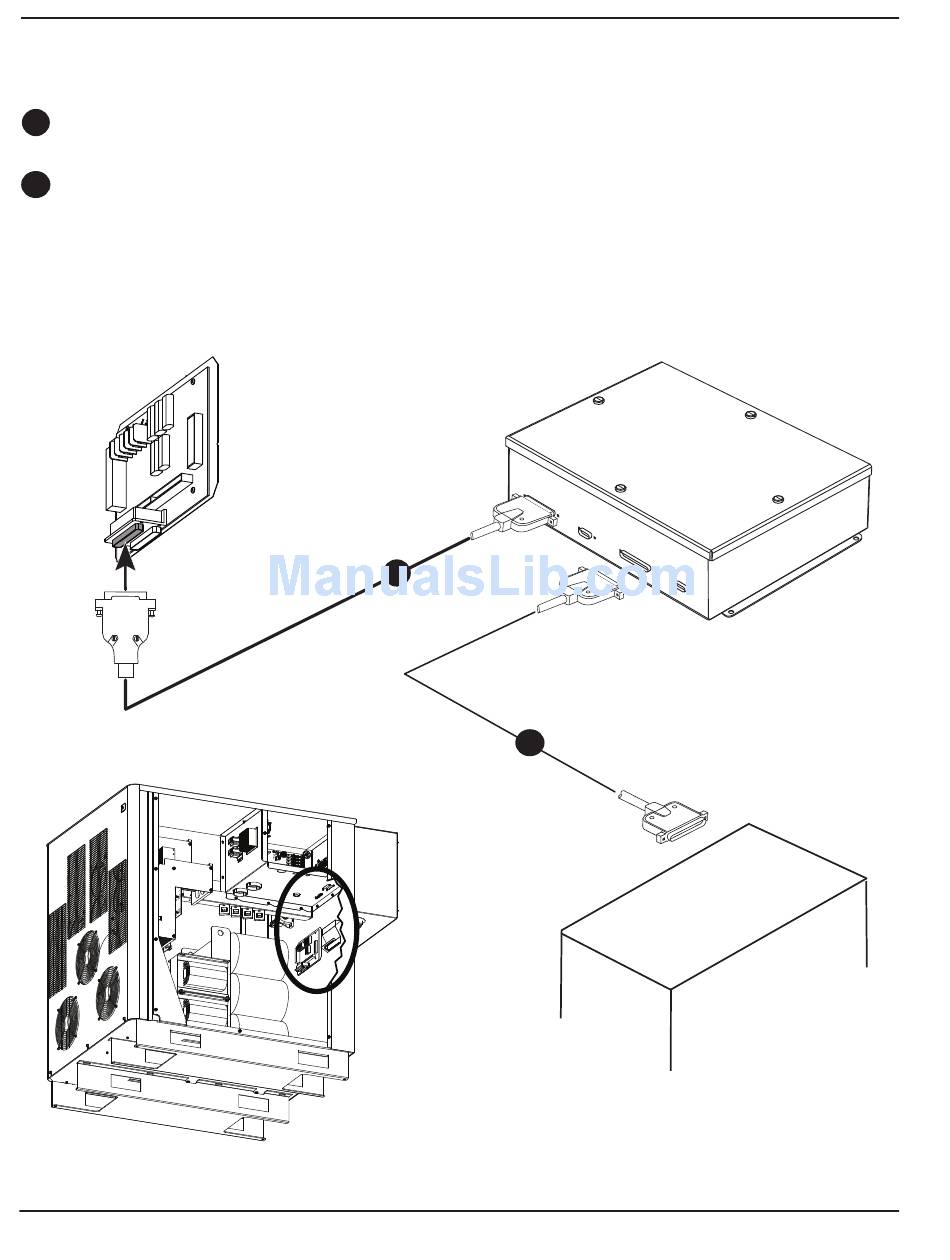

Connect the plasma interface assembly to the THC control module
A
Install the plasma interface cable (see page 3-22 for part numbers) from the plasma interface PCB in the power
supply to the THC control module.
B
Install the machine interface cable (see page 3-23 for part numbers) from the THC control module to the CNC.
Plasma Interface PCB
(inside the power supply)
3i-10
11
A
B
CommandTHC for X-Y Table Instruction Manual
THC Control
Module
CNC
