Hypertherm Command THC Instruction Manual page 67

SETUP
X-Y Lifter Assembly
IHS ohmic
contact wire
Lifter I/O
interface cable
Motor drive
cable
THC Control Module
Plasma Interface
Assembly
Plasma
interface cable
Electrode and work leads
HT4400:
See NOTE
on page 3-12
Power Supply
Power supply
Machine interface
interface cable
cable
Optional Operator Pendant:
shown with optional extension cable

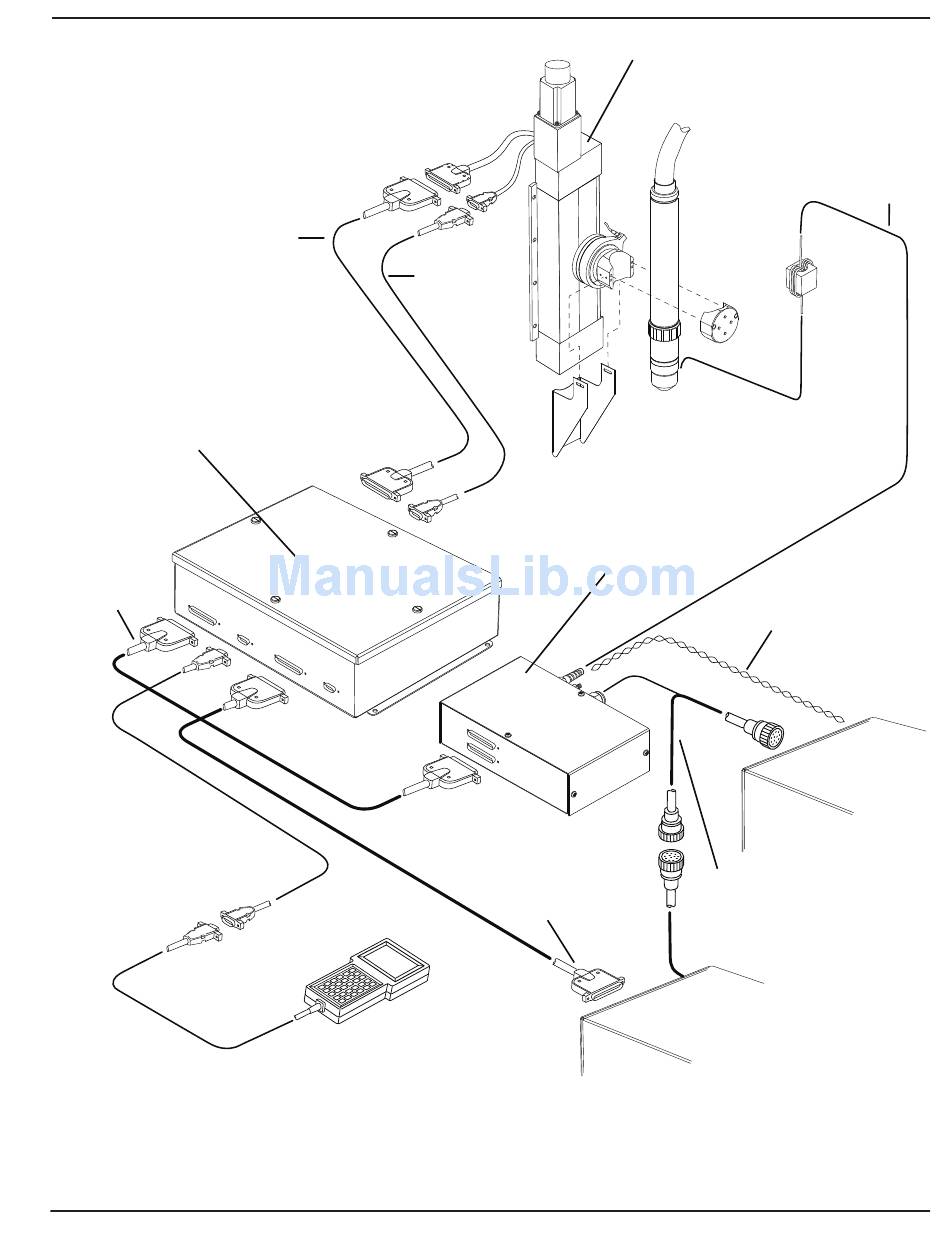

Figure 3-8 X-Y THC system diagram
CommandTHC for X-Y Table Instruction Manual 3-13
