CommandTHC for X-Y Table Instruction Manual

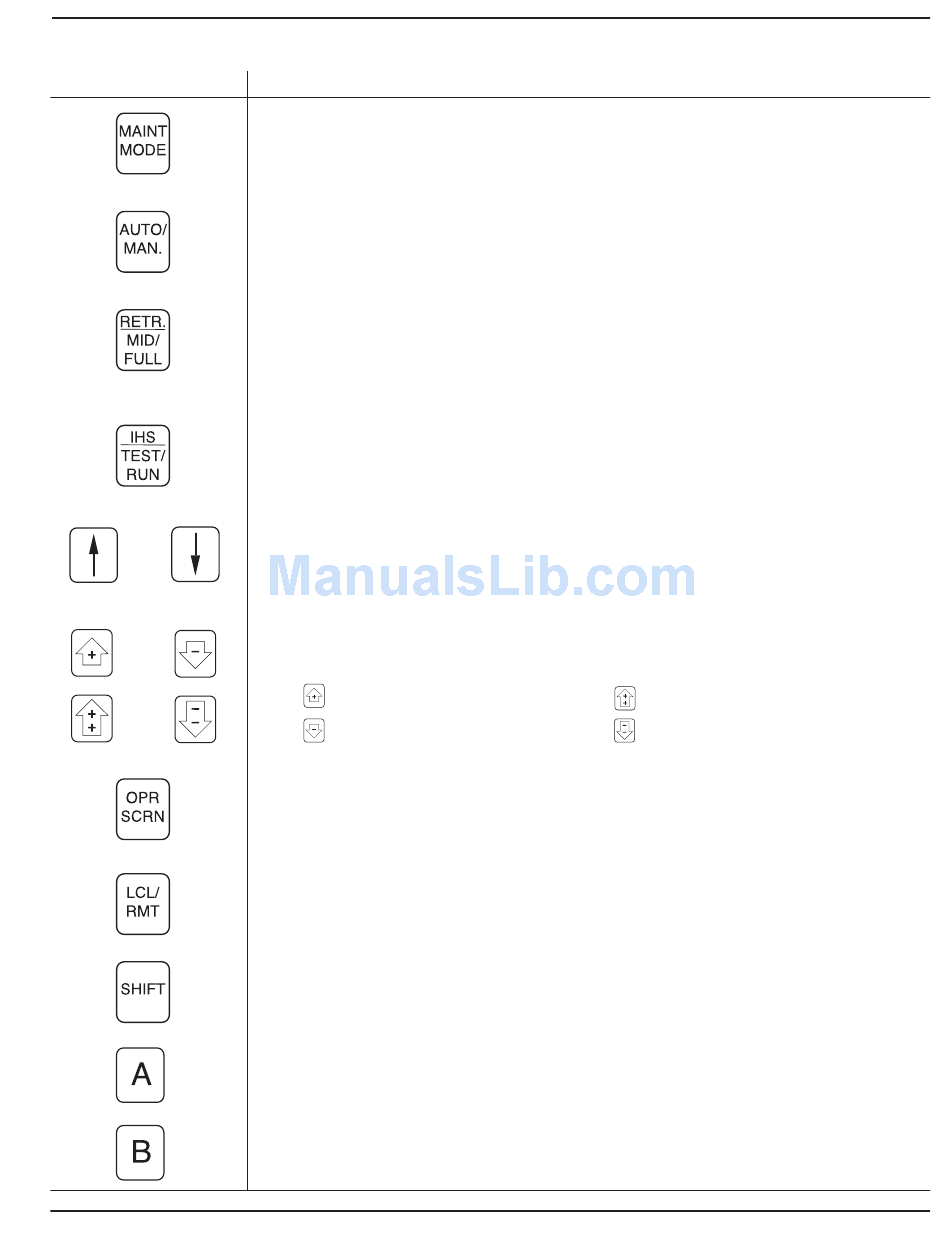

FUNCTION/USE
Lifter moves to home position (full up), the brake locks to prevent the torch from diving, and
system ignores the Cycle Start signal.
Selects main operating screen for either automatic or manual control mode.
Selects the height the torch retracts after completing a cut.
FULL = full retract
Initiates IHS test; Torch moves to plate and then retracts to cutting height.
Press again to return to RUN mode.
Selects data field for changing operating parameters.
Changes the value of selected field. Changes torch height while in manual mode.
small increase
small decrease
Returns to main operating screen (automatic or manual).
Selects operator pendant (local) or CNC (remote) as control.
Press SHIFT key to enable this key.
Enables LCL/RMT key.
Enables B key when viewing the Diagnostic Screen.
Selects Setup Screen A.
Selects Diagnostic Screen B. Press SHIFT B to begin diagnostic.
MID = programmable dimension
large increase
large decrease
