Hypertherm Command THC Instruction Manual page 107

HT4001 SETUP
Part number
123330
Signal Name Color
Hold – Black
Hold + White
Drain Drain
Plasma Start – Black
Plasma Start + Blue
Drain Drain
Arc Transfer – Black
Arc Transfer + Red
Drain Drain
Emergency Stop Black
Emergency Stop Green
Drain Drain
Arc Voltage Black
Arc Voltage Yellow
Drain Drain
Spare Black
Spare Green
Drain Drain
Shaded area indicates plasma interface assembly connections.
Plasma interface assembly other J3 and J4 connection points:
• J3-5 (+) and J3-6 (–) – Alternate Nozzle Contact. An optically isolated signal that indicates nozzle is in ohmic contact with work.
Ohmic contact is represented by a logic 1.
• J3-7 through J3-12 – Reserved for future use.
• J3-13 and J3-14 – Protective earth ground.
• J4-1 (+) and J4-2 (–) – Available 24 VDC, 500 mA maximum
• J4-7 and J4-8 – Pierce Complete signal used by power unit to time transition from pierce gas flow to cut gas flow. User enters this
time delay into THC. Output signal.
• J4-9 through J4-14 – Reserved for future use.
Figure 3d-3
3d-6
7
Description
HT4001 Power Supply Interface Cable
Power
Supply CNC
End (1X6) End
5 Not
1 Connected
10
9 Not
15 Connected
14
31 Not
36 Connected
25
28 28
33 33
27 27
32 32
37 37
26 26
16 16
17 17
18 18

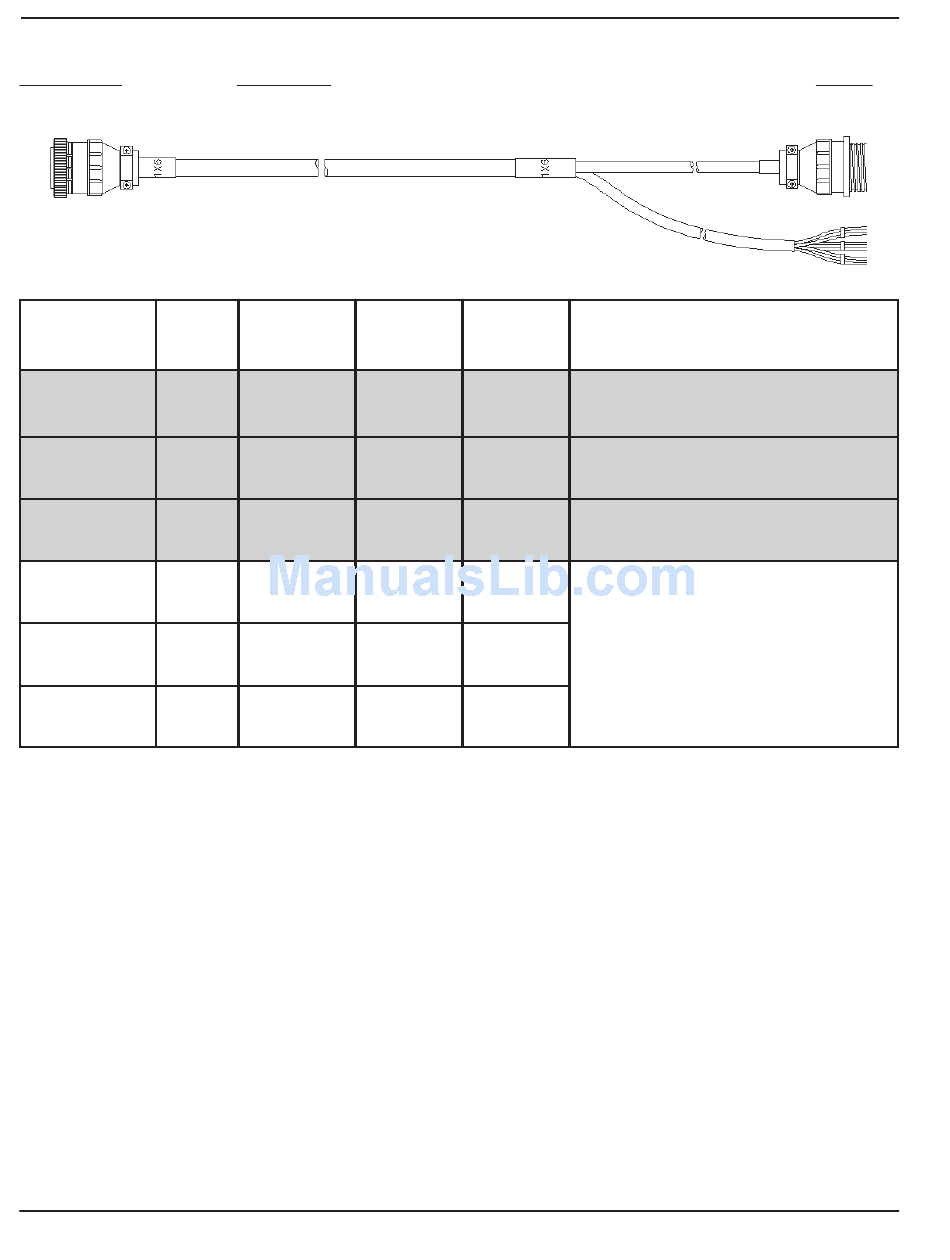

HT4001 interface cable – part number and signal list
Plasma
Interface
End
J4-6 (Optional) Hold Ignition (I/O) signal used for preflow
J4-5 during IHS. Also used by power unit to synchronize
operation of multiple torch installations. Output signal
J4-4 Plasma Start signal maintained during plasma cut. If
J4-3 signal is lost, system must be restarted. Output signal.
J3-2 Arc Transfer signal. Contact closes after arc transfer
J3-1 and pierce delay (set on power supply front panel).
Dry contact closure. Input signal.
Not
Connected
Not These signals connect to the CNC. Refer to HT4001
Connected Instruction manual for signal information.
Not
Connected
CommandTHC for X-Y Table Instruction Manual
Length
6 ft./1.8 m
Function
