PARTS LIST

X-Y lifter torch mounting block kits

Index no. Part no.
128277
128278
128279
1 004775
2 075127
3 075583
4 120595
4 120596
4 120597
5 002303
6 075071
6-6
6.1
Description
Kit, torch mounting block, 1-3/8 inch diameter torch
Kit, torch mounting block, 1-3/4 Inch diameter torch
Kit, torch mounting block, 2 inch diameter torch
Spacer, Command THC mounting block
Socket cap, 1/4-20 X 1-1/2 inch hex BTN S/Z
Socket cap, 1/4-20 X 1-3/4 inch hex SST
Block, 1-3/8 inch torch mounting (kit 128277)
Block, 1-3/4 inch torch mounting (kit 128278)
Block, 2 inch torch mounting (kit 128279)
Shield
Screw, 8-32 X 1/4 inch

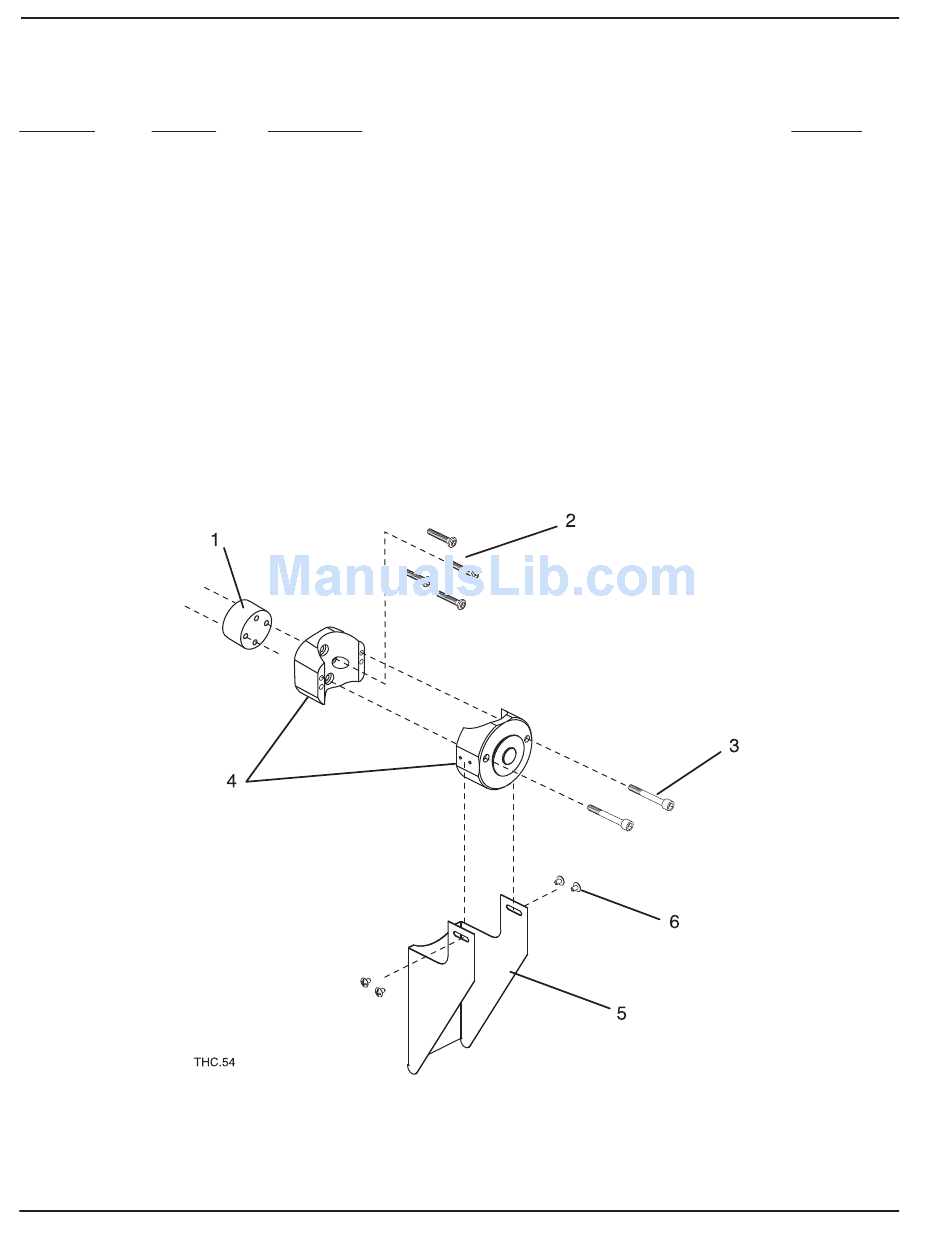

Figure 6-5 X-Y lifter torch mounting block kit
CommandTHC for X-Y Table Instruction Manual
Quantity
1
1
1
1
4
2
1
1
1
1
4
