Motor drive board status lights during normal power-up

The following LEDs are located on the motor drive PCB inside the control module. See Figure 5-5.
LED Signal function
D1 Drive active
D15 Brake released
D16 Up
D17 Down
* On = brake is unlocked
Off = brake is on
CommandTHC for X-Y Table Instruction Manual
Status
On
On*
Off
Off

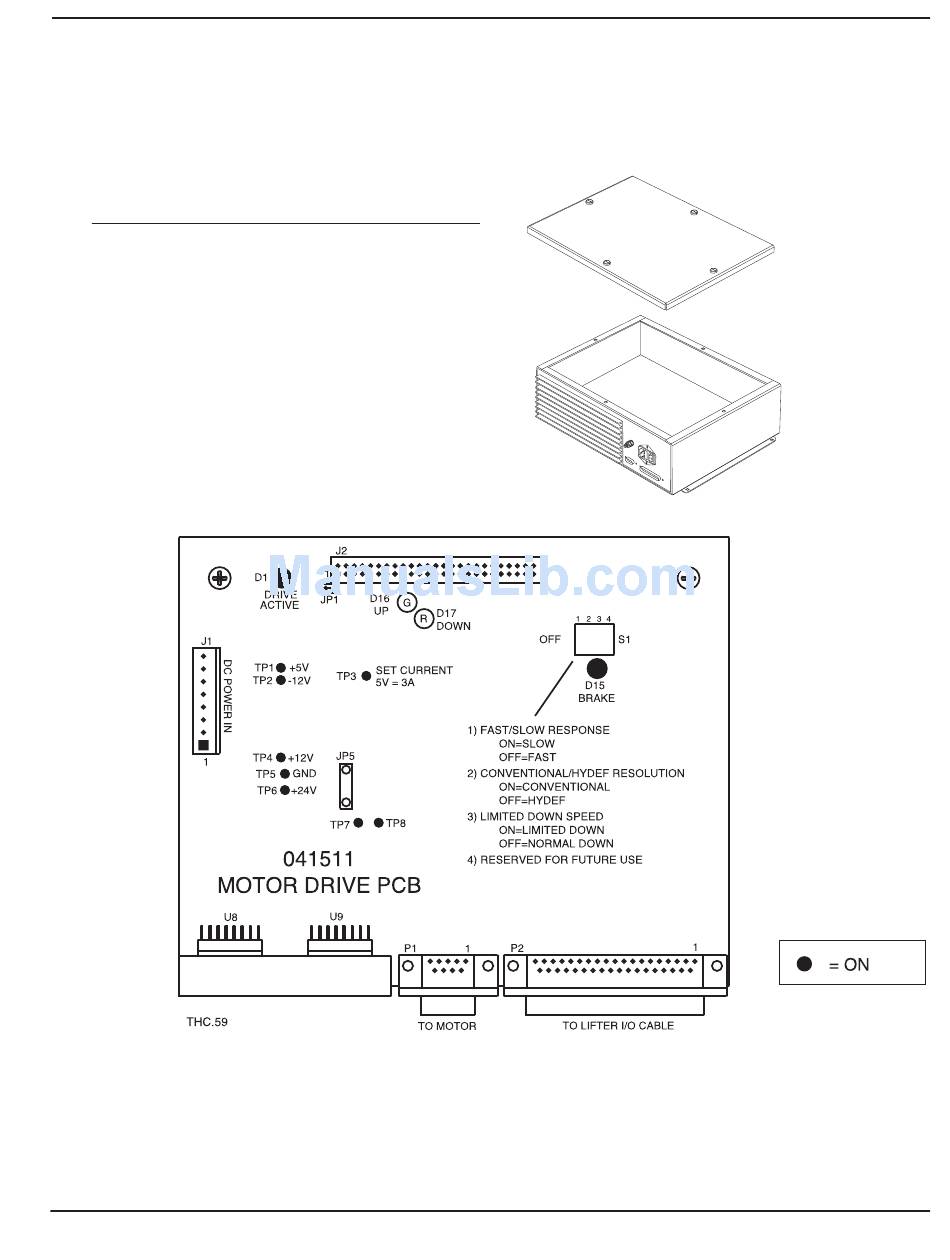

Figure 5-5 Motor drive board
MAINTENANCE
5-11
