SETUP

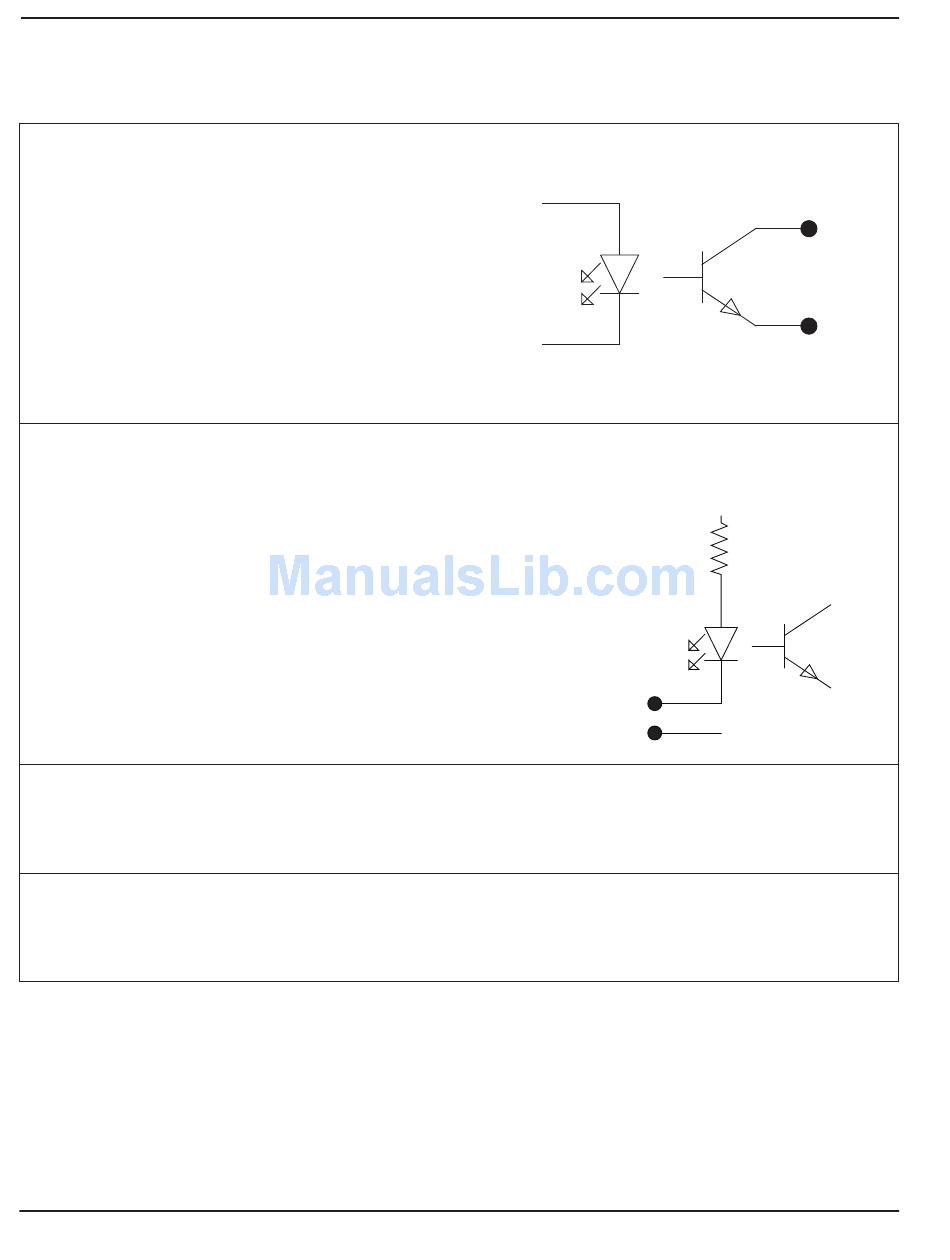

Notes to Figure 3-16
Note 1. All THC outputs are optically coupled
transistors with maximum ratings of 24 VDC
and 10 mA.
Note 2. All THC inputs are optically isolated 12 VDC signals.
Signals are made active by sinking 3 mA per input.
Note 3. Jumper required in CNC. See instructions on page 3-14.
Note 4. Stop switch required in CNC. See instructions on page 3-14.
3-24
5
THC output
24 VDC maximum
10 mA maximum
THC input
+
Input
–
CommandTHC for X-Y Table Instruction Manual
+
Output
–
12 VDC
3,3 K
12V Return
