Cnc Interface Cable - Hypertherm Command THC Instruction Manual

CNC interface cable

To THC
control
module
Part number
123209
123210
123211
123212
123022
123213
123214
Pin
number Color Signal name
1 Input Black RX–
20 Red RX+
2 Output Black TX–
21 Green TX+
3 Input Black Machine Cable –
*
22 Blue Machine Cable +
5 Input Black IHS Sync –
24 Brown IHS Sync +
8 Input Red Auto Height On/Off –
*
27 Green Auto Height On/Off +
9 Input Red Cycle Start –
*
28 Blue Cycle Start +
10 Output Red IHS Complete –
29 Yellow IHS Complete +
12 Output Red Retract Complete –
31 Orange Retract Complete +
13 Output Green Pilot Arc –
32 White Pilot Arc +
14 Output Green THC Error –
33 Blue THC Error +
15 Output Green Machine Motion –
*
34 Yellow Machine Motion +
16 Input Green Ext. Emergency Interlock– Allows installation of an emergency stop switch (normally
*
35 Brown Ext. Emergency Interlock+ closed).
18 Output White 24 VDC Common
37 Black 24 VDC +
36 Output Orange 24 VDC Common
4 Input Black Spare 3 –
23 Yellow Spare 3 +
6 Input Black Spare 2 –
25 Orange Spare 2 +
7 Input Red Spare 1 –
26 White Spare 1 +
11 Output Red Spare 1 –
30 Brown Spare 1 +
17 Green
19
* Minimum connections needed for proper operation of CommandTHC
CommandTHC for X-Y Table Instruction Manual
THC.84
Length
5 ft./1.5 m
10 ft./3 m
15 ft./4.6 m
20 ft./6.1 m
25 ft./7.6 m
30 ft./9.1 m
35 ft./10.6 m
Function
RS-422 serial inverting receiver.
RS-422 serial non-inverting receiver.
RS-422 serial inverting transmitter.
RS-422 serial non-inverting transmitter.
Machine cable recognition used for verifying installation of
Machine interface cable to CNC.
IHS Sync holds torch firing, but allows preflow gas to flow.
Auto Height On/Off enables or disables Auto Height.
Auto Height is Off when input is active.
Cycle Start (plasma start) initiates start of programmed cycle.
CNC must provide a contact closure to activate this input.
IHS Complete output to CNC to synchronize multiple torch
installations. When all connected torches are in position,
IHS Sync In signal is deactivated to proceed with torch ignition.
Retract Complete output verifies to CNC that the torch has
retracted and it is safe to move to next start position.
Pilot Arc output verifies to CNC that a pilot arc has been
established.
THC Error output alerts CNC that an error has occurred.
Machine Motion output verifies to CNC that a pierce delay
has been completed and notifies CNC to start movement of
the cutting machine.
Available 24 VDC, 500 mA maximum
Available 24 VDC, 500 mA maximum
Spare
Spare
Spare
Spare
Not used
Not connected

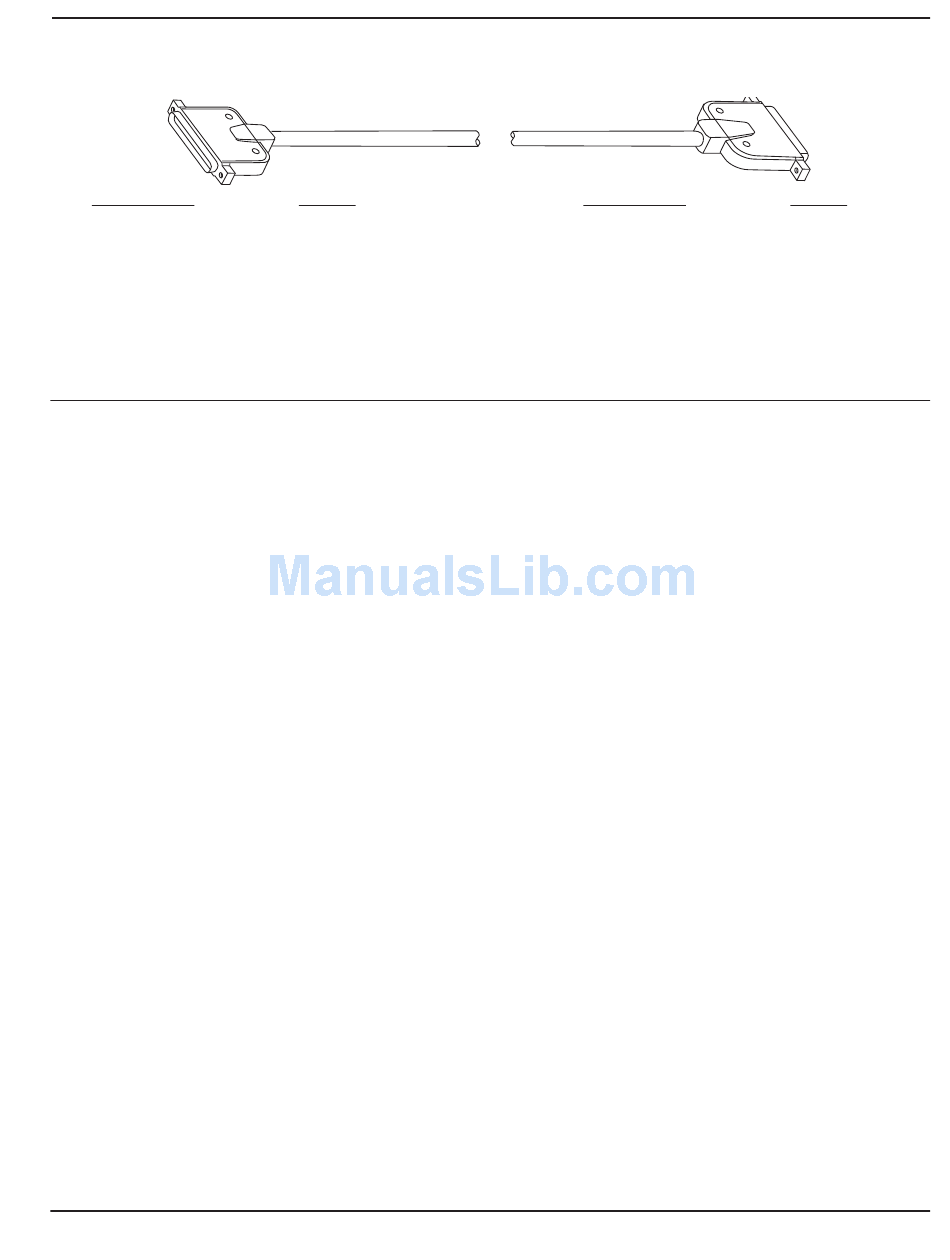

Figure 3-16 CNC interface cable – part numbers and signal list
Part number
123215
123216
123023
123217
123218
123219
123220
Signal
name
TX–
TX+
RX–
RX+
SETUP
To CNC
Length
40 ft./12.2 m
45 ft./13.7 m
50 ft./15.2 m
75 ft./23 m
100 ft./30.5 m
125 ft./38 m
150 ft./45.6 m
Pin Notes,
number page 3-24
1 Output
20
2 Input
21
3 Output 3
22
5 Output 2
24
8 Output 2
27
9 Output 2
28
10 Input 1
29
12 Input 1
31
13 Input 1
32
14 Input 1
33
15 Input 1
34
16 Output 4
35
18 Input 1
37
36 Input 1
4 Output
23
6 Output
25
7 Output
26
11 Input
30
17
19
3-23
11
