Hypertherm Command THC Instruction Manual page 150

HSD130 SETUP
Remove the cover and the rear panel
Turn off all electrical power before removing the power supply cover. Press the power
supply OFF (0) pushbutton switch and set the line disconnect switch to OFF. In the
U.S., use a "lock-out and tag-out" procedure until the service or maintenance is
complete. In other countries, follow appropriate local or national safety procedures.
See Figure 3j-1 and 3j-2.
A
Remove the cover from the plasma interface assembly.
B
Remove the rear panel from the powe supply
A
Remove the cover from the plasma interface assembly.
3j-2
11
ELECTRIC SHOCK CAN KILL

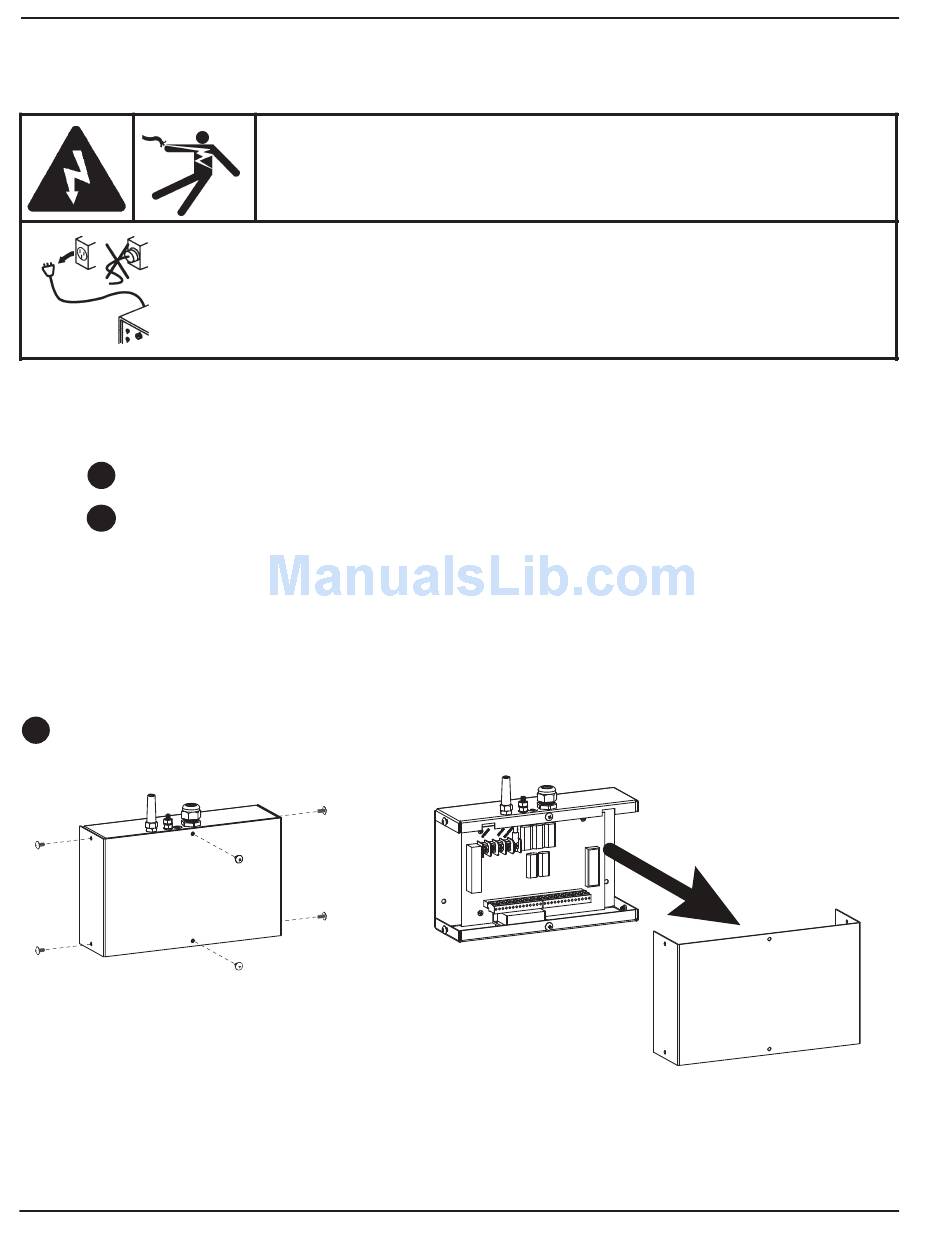

Figure 3j-1 Plasma interface assembly
DANGER
CommandTHC for X-Y Table Instruction Manual
