System unit mounting

Before interconnecting the THC system, mount the units as required, using customer-supplied hardware. Do not allow
the units to lie unsecured on top of cabinets or on the floor. Refer to Section 2, Specifications, for unit dimensions.

THC control module

• Mount the THC control module close to the CNC controller for easy access to the THC system power and to
provide easy access for routing and connecting cables. The unit can be mounted in any position except with the
power module (AC receptacle and switch) facing up. Four mounting holes, requiring 1/4-inch (6 mm) fasteners,
are provided. See Figure 3-1.
THC.70
CommandTHC for X-Y Table Instruction Manual
17.25 in.
(438 mm)

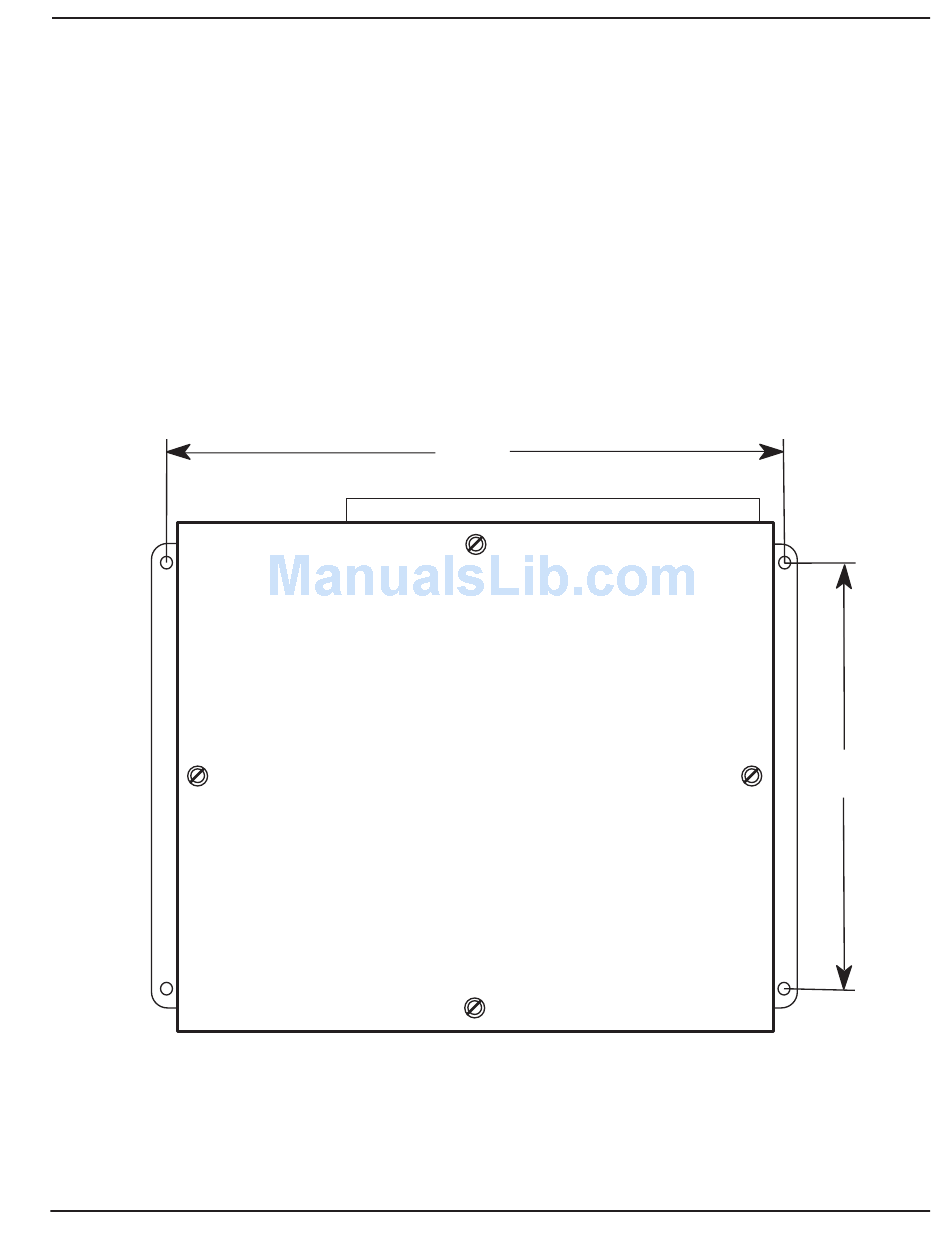

Figure 3-1 THC control module mounting
SETUP
12 in.
(305 mm)
3-3
