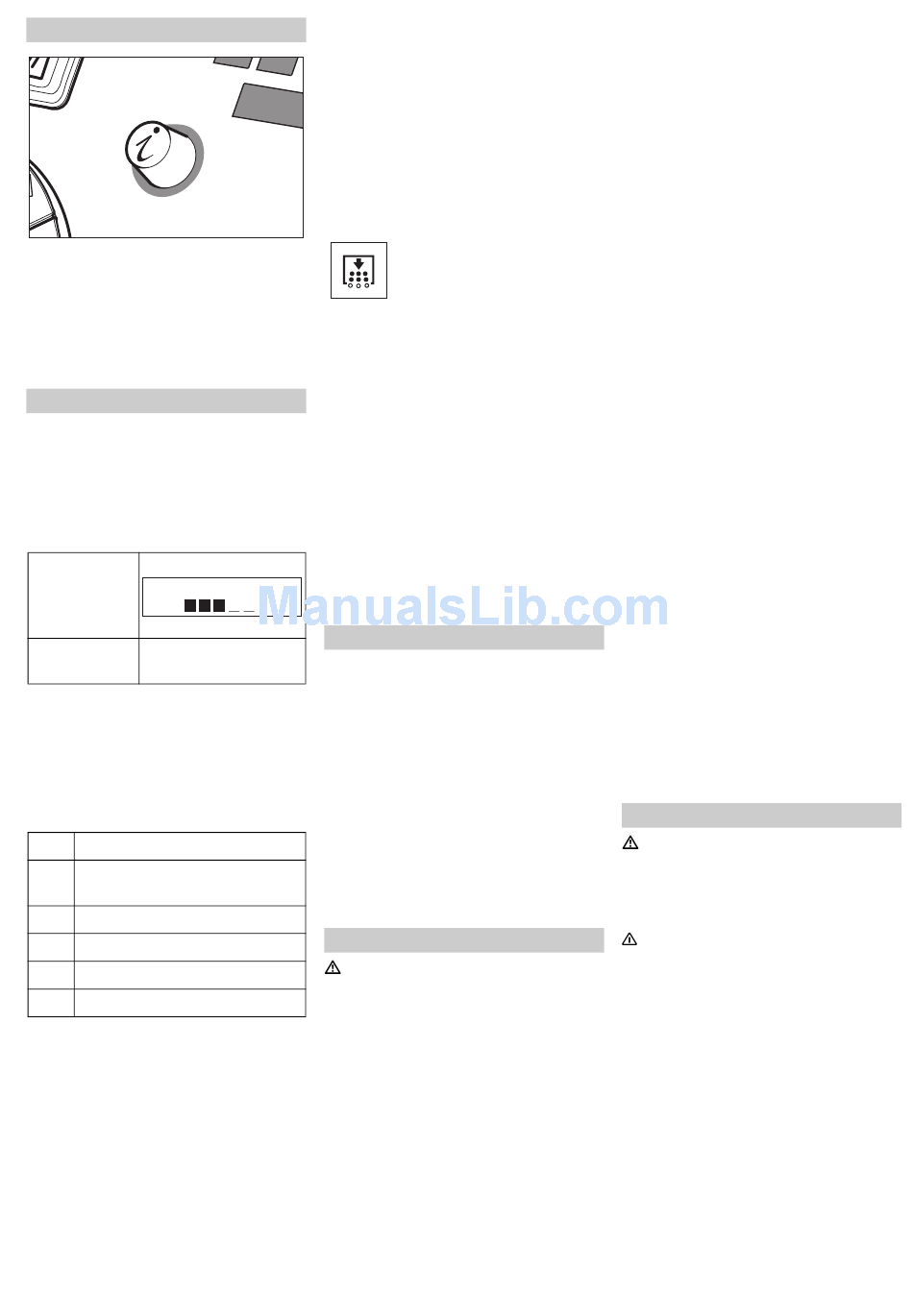

Info button
Figure 9
Use the Info button to select the menu items
and do the settings.
– Turning the button to the right/left scrolls
through the menus forward/ backward.
– Press the button to accept the selected
setting.
Settings
Operator menu
è Release emergency-stop button by
turning.
è Sit and set main switch to "1".
The displays shows the battery charging
status and the number of operating hours.
Battery char-
ging status
E
Operating 23 h 08 m
hour counter
è Select the desired menu item by turning
the Info button. The currently set value
is displayed as a bar.
Note
The menu item "Set speed of side brushes"
is displayed only if the program switch is po-
sitioned at the levels 3, 4 or 5.
No. Display main menu
1 Display battery charging status +
Operating hours counter
2 Quit Operator menu
3 Set speed of side brushes
4 Accept factory settings?
5 Info menu
è Press Info button - the bar display
blinks.
è Reset the parameter by turning the Info
button between "min" and "max".
è Confirm the changed setting by pres-
sing the Info button or wait till the set va-
lue is accepted automatically after
seconds.
Note
If the selected parameter does not change
within 10 seconds, then the display goes
back to displaying the battery charging sta-
tus and the operating hours counter.
28
English
– All settings are saved in the powerless
state of the machine.
Reset parameter in the Operator menu
è Select menu item no. 4 "Accept factory
settings?" by turning the Info button.
è Press Info button. The factory settings
of all parameters are restored.
Filter dedusting
– Switch on manual filter shake off.
è Press Filter shake off button. Control
lamp "Filter shake off" blinks green. Fil-
ter shake off starts after a delay of one
second.
Note
The machine is set at the factory to automa-
tic filter shake off. The control lamp "Filter
shake off" glows green.
– Switch off automatic filter shake off.
è Press the filter shake off button twice wi-
thin 1 second. Control lamp "Filter
shake off" goes off.
– Switch on the automatic filter shake off.
è Press the filter shake off button twice wi-
thin 1 second. Control lamp "Filter
shake off" glows green.
F
Starting the machine
Note
The machine is equipped with a seat con-
tact mat. When you quit the driver seat, the
machine comes to a halt after a delay of ap-
prox. 1.5 seconds and the activated sweep
function is switched off.
Turning on the Appliance
è Sit on the driver's seat.
è Do NOT press the accelerator pedal.
è Set programme switch to step 1 (dri-
ving).
è Set main switch to "1".
Drive the machine
Danger
Danger of accident! If the machine does not
brake, then proceed as follows:
– If the machine does not come to a halt
on a ramp with a gradient of 2% when
you release the drive pedal, then the
emergency-stop button may be pressed
for safety reasons only if the mechanical
functioning of the immobilizing brake
has been checked properly before com-
missioning the machine.
– Switch off the machine only after it co-
mes to a complete halt (on an even sur-
face) and call up the aftersales service!
– Further, follow all warning instructions
for braking.
è Release emergency-stop button by
turning.
è Sit on the seat and set main switch to
"1".
Drive forward
è Press right accelerator pedal down
slowly.
Reverse drive
è Press left accelerator pedal down slow-
ly.
Note
Driving method
– The accelerator pedal can be used to
vary the driving speed infinitely.
Brakes
è Release the accelerator pedal, the ma-
chine brakes automatically and stops.
Driving over obstacles
Driving over fixed obstacles which are 50
mm high or less:
è Drive forwards slowly and carefully.
Driving over fixed obstacles which are more
than 50 mm high:
è Only drive over these obstacles using a
suitable ramp.
Overload
In case of overloading, the drive motor au-
tomatically switches off after a certain peri-
od. A fault message is displayed on the
console. The concerned unit gets switched
off if the controls get overheated.
è Allow machine to cool down at least for
15 minutes.
è Turn the main switch to "0" and turn it
back to "1".
Sweeping mode
Danger
Risk of injury! If the bulk waste flap is open,
stones or gravel may be flung forwards by
the roller brush. Make sure that this does
not endanger persons, animals or objects.
Warning
Do not sweep up packing strips, wire or si-
milar objects as this may damage the
sweeping mechanism.
Note
The sweeping roller and the side brushes
automatically swtich off when the machine
is idling.
Note
To achieve an optimum cleaning result, the
driving speed should be adjusted to take
specific situations into account.
Note
The waste container must be emptied at re-
gular intervals.
Note
When cleaning surfaces, only lower the rol-
ler brush.
