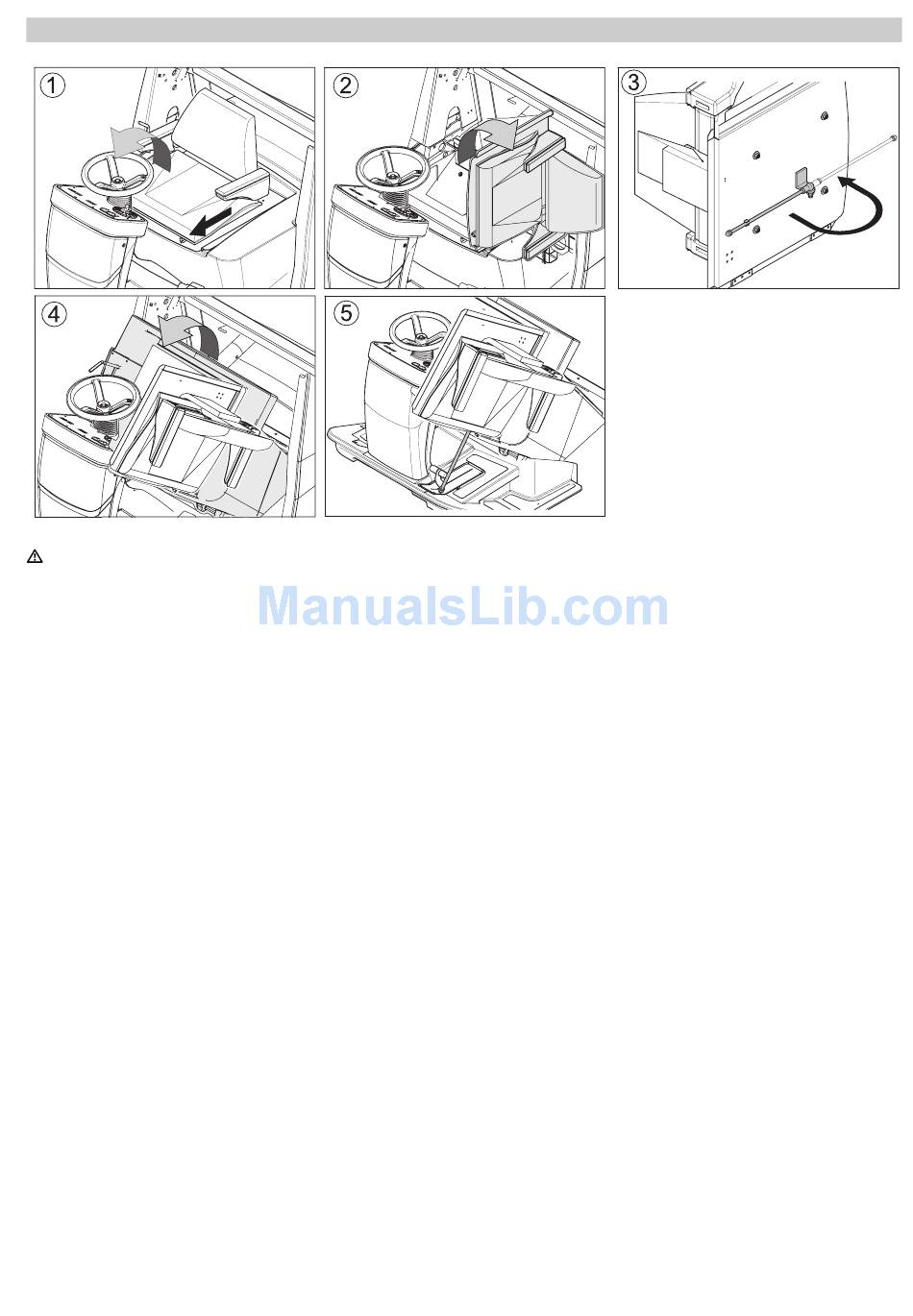

Figure 3
Danger
When open, the cover must be propped up
using the retaining rod.
Figure 1
è Operate steering wheel adjustment le-
ver and fold steering wheel forwards.
è Operate seat adjustment lever and slide
seat forwards.
Figure 2
è Fold seat bracket to the side.
Figure 3
è Fold out retaining rod.
Figure 4
è Fold cover forwards.
Figure 5
è Insert retaining rod into the recess next
to the bulk waste flap pedal.
Follow this sequence in reverse order to
close the cover.
24
English
Opening/closing and securing cover
