6B-11 Steering / Handlebar:

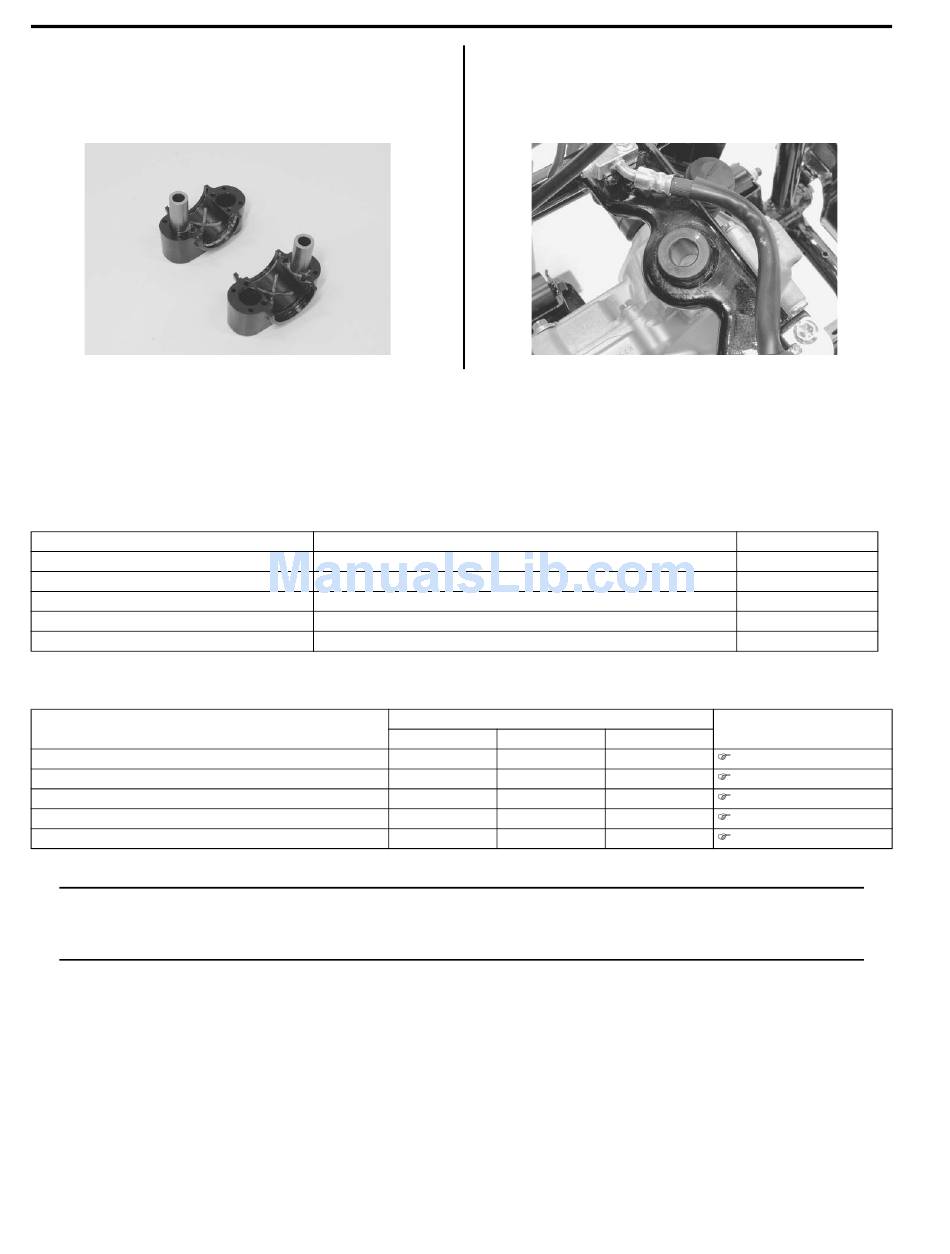

Steering Shaft Holder
Inspect the steering shaft holders for wear or damage. If
any defects are found, replace the steering shaft holders
with new ones.
Service Data (LT-A400/F, LT-F400/F)
Wheel
Unit: mm (in)
Item
Steering angle
Turning radius
Toe-in (with 75 kg, 165 lbs)
Camber
Caster

Tightening Torque Specifications

Fastening part
Handlebar clamp bolt
Steering shaft holder bolt
Steering shaft lower nut
Tie-rod end nut
Tie-rod lock-nut
NOTE
The specified tightening torque is also described in the following.
"Steering / Handlebars Components (Page 6B-1)"
"Steering Assembly Construction (Page 6B-2)"
Reference:
For the tightening torque of fastener not specified in this section, refer to "Tightening Torque List (LT-A400/F) in
Section 0C (Page 0C-9)".
Steering Shaft Bushing
Inspect the steering shaft bushing for wear or damage. If
any defects are found, replace the steering shaft bushing
with a new one.
I827H1620046-01
Specifications
Standard
47° (right & left)
3.1 m (10.2 ft)
10 ± 4 mm (0.39 ± 0.16 in)
0.3°
3°
Tightening torque
N⋅m kgf-m
26 2.6
23 2.3
49 4.9
29 2.9
29 2.9
I827H1620047-01
B827H16207001
Limit
—
—
—
—
—
B827H16207002
Note
lb-ft
19.0 (Page 6B-4)
16.5 (Page 6B-8)
35.5 (Page 6B-9)
21.0 (Page 6B-9)
21.0 (Page 6B-9)
