1E-9 Engine Lubrication System:

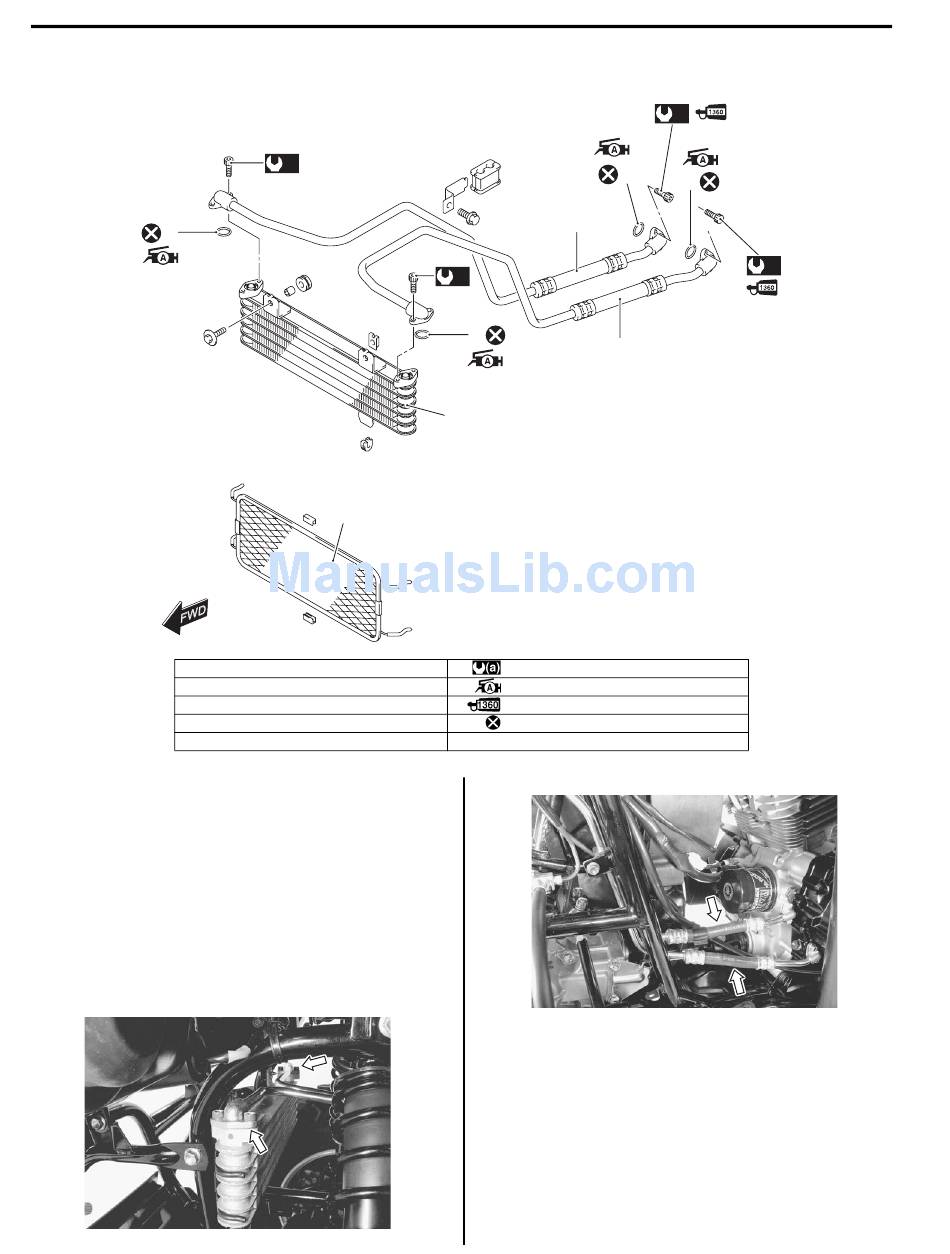

Oil Cooler And Oil Hose Components

5
1. Oil cooler
2. Oil cooler fin guard net
3. Oil hose (inlet)
4. Oil hose (outlet)
5. O-ring
Oil Cooler / Oil Cooler Hose Inspection and
Cleaning
Oil Cooler Hose Inspection
Inspect the oil cooler hoses in the following procedures:
1) Remove the left inner fender. Refer to "Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)".
2) Inspect the oil cooler hoses for any damage and oil
leakage. If any defects are found, replace the oil
cooler hose with new ones.
(a)
(a)
1
2
B827H11506010
I827H1150022-01
5
3
5
4
: 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
: Apply grease.
: Apply thread lock.
: Do not reuse.
B827H11506009
(a)
5
(a)
I827H1150048-02
I827H1150023-01
