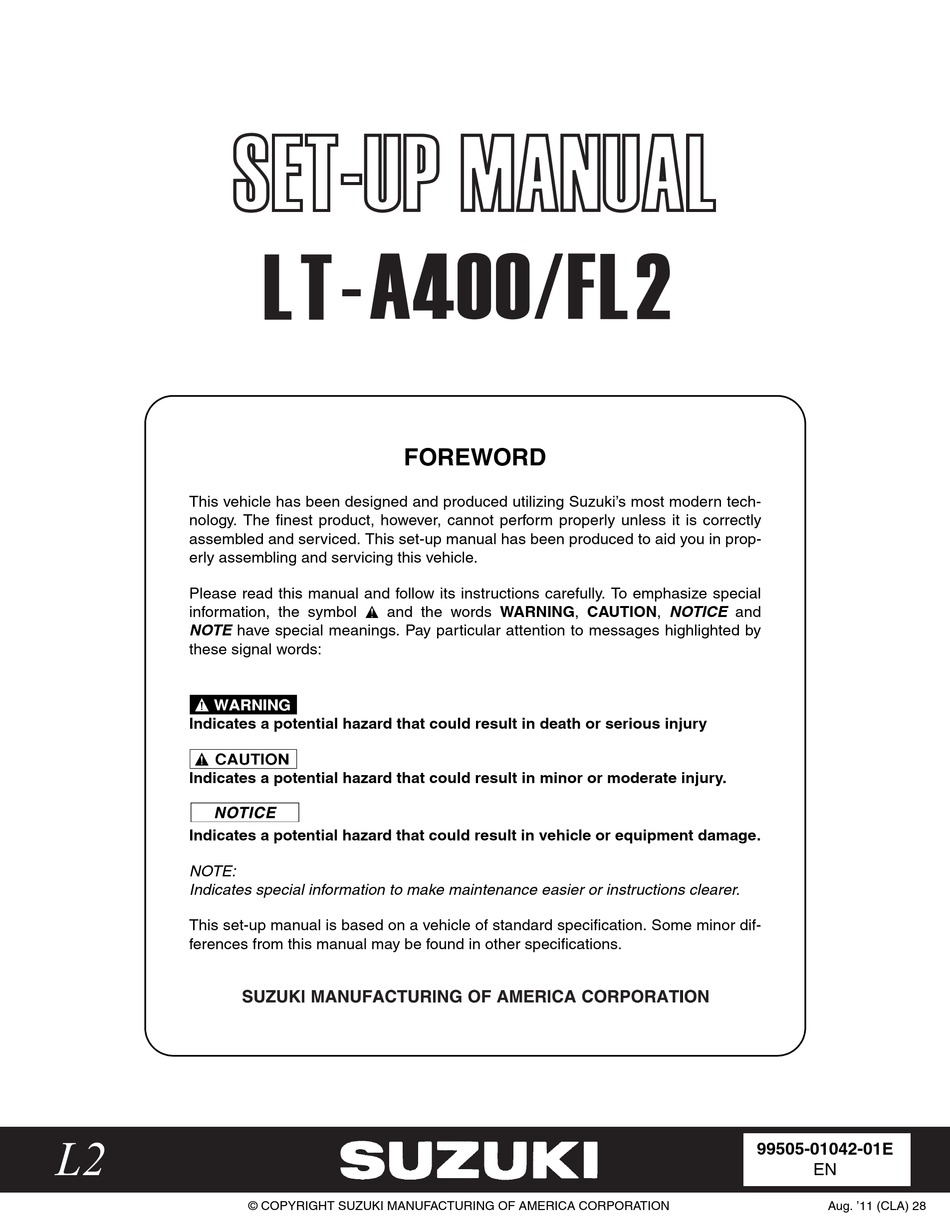

FOREWORD
This vehicle has been designed and produced utilizing Suzuki's most modern tech-
nology. The finest product, however, cannot perform properly unless it is correctly
assembled and serviced. This set-up manual has been produced to aid you in prop-
erly assembling and servicing this vehicle.
Please read this manual and follow its instructions carefully. To emphasize special
information, the symbol
and the words WARNING, CAUTION, NOTICE and
NOTE have special meanings. Pay particular attention to messages highlighted by
these signal words:
Indicates a potential hazard that could result in death or serious injury
Indicates a potential hazard that could result in minor or moderate injury.
Indicates a potential hazard that could result in vehicle or equipment damage.
NOTE:
Indicates special information to make maintenance easier or instructions clearer.
This set-up manual is based on a vehicle of standard specification. Some minor dif-
ferences from this manual may be found in other specifications.
L2
99505-01042-01E
EN
© COPYRIGHT SUZUKI MANUFACTURING OF AMERICA CORPORATION
Aug. '11 (CLA) 28
Advertisement
Table of Contents
Related Manuals for Suzuki LT-A400
Summary of Contents for Suzuki LT-A400
- Page 1 FOREWORD This vehicle has been designed and produced utilizing Suzuki’s most modern tech- nology. The finest product, however, cannot perform properly unless it is correctly assembled and serviced. This set-up manual has been produced to aid you in prop- erly assembling and servicing this vehicle.
- Page 2 PREPARATION WORKSHOP CAUTION Assembling the vehicle in poor working condi- tion can be hazardous. Place the packed vehicle on a level floor where it is clean and spacious. A: Packed vehicle B: Working space SELF PROTECTION CAUTION Assembling the vehicle without proper clothes and protective gear can be hazardous.
- Page 3 UNCRATING THE VEHICLE CAUTION Crate has nails and may have sharp splinters that could cause injury. Wear proper protective clothes and gear. Use a cutter to separate the top part of the crate along the perforated line. CAUTION Careless use of cutter can injure a person.
- Page 4 Use a cutter to open the crate along the perforated line. CAUTION Careless use of cutter can injure a person. Wear proper protective clothes and gear. Use a cutter with the proper method. NOTE: • Cut the carton from the top to the bottom along the perforated lines on both sides at each end.
- Page 5 Remove the nut to take off the J hook of the vehicle stopper. NOTE: The J hook, nut, cardboard, washer, and rubber are not necessary to assemble the machine. A: J hook B: Nut C: Washer D: Cardboard E: Rubber Carefully remove a component parts package from the crate.
-
