4A-11 Brake Control System and Diagnosis:

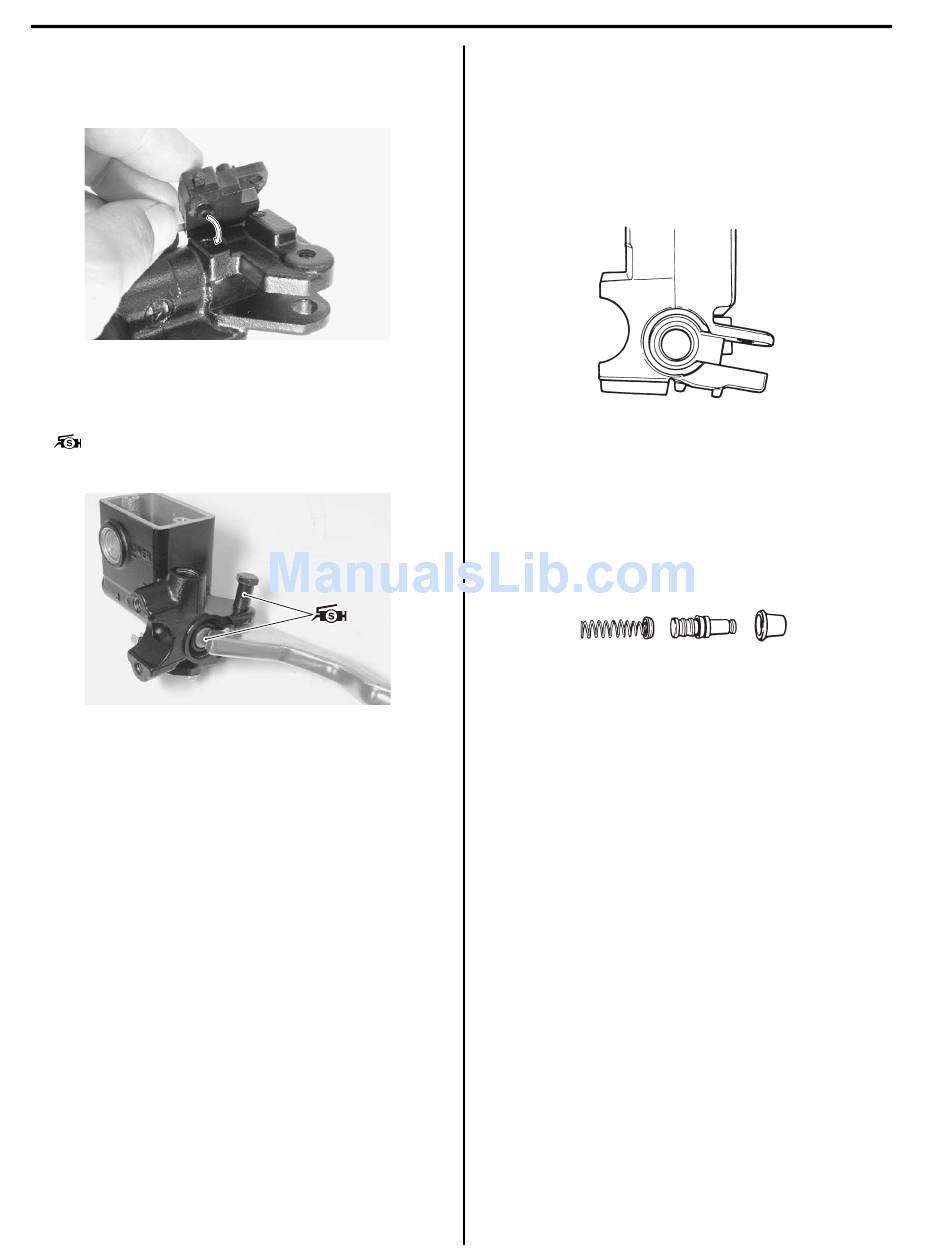

• When installing the brake light switch, align the
projection on the switch with the hole in the master
cylinder.
• Apply grease to the brake lever pivot bolt.
• Apply grease to the contact point between piston and
brake lever.
: Grease 99000–25100 (SUZUKI Silicone
Grease or equivalent)
• Tighten the pivot bolt and lock-nut to the specified
torque.
Tightening torque
Brake lever pivot bolt: 6 N·m (0.6 kgf-m, 4.5 lb-ft)
Brake lever pivot bolt lock-nut: 6 N·m (0.6 kgf-m,
4.5 lb-ft)

Front Brake Master Cylinder Parts Inspection

Refer to "Front Brake Master Cylinder / Brake Lever
Disassembly and Assembly (Page 4A-10)".
Master Cylinder
Inspect the master cylinder bore for any scratches or
other damage.
I827H1410029-01
Piston
Inspect the piston surface for any scratches or other
damage.
Rubber Parts
Inspect the primary cup, secondary cup and dust boot
for wear or damage.
Parking / Rear Brake Lever Removal and
I827H1410030-01
Installation
Refer to "Parking / Rear Brake Lever Removal and
Installation in Section 4D (Page 4D-2)".
B827H14106016
I649G1410027-02
I649G1410028-02
B827H14106019
