1D-16 Engine Mechanical:

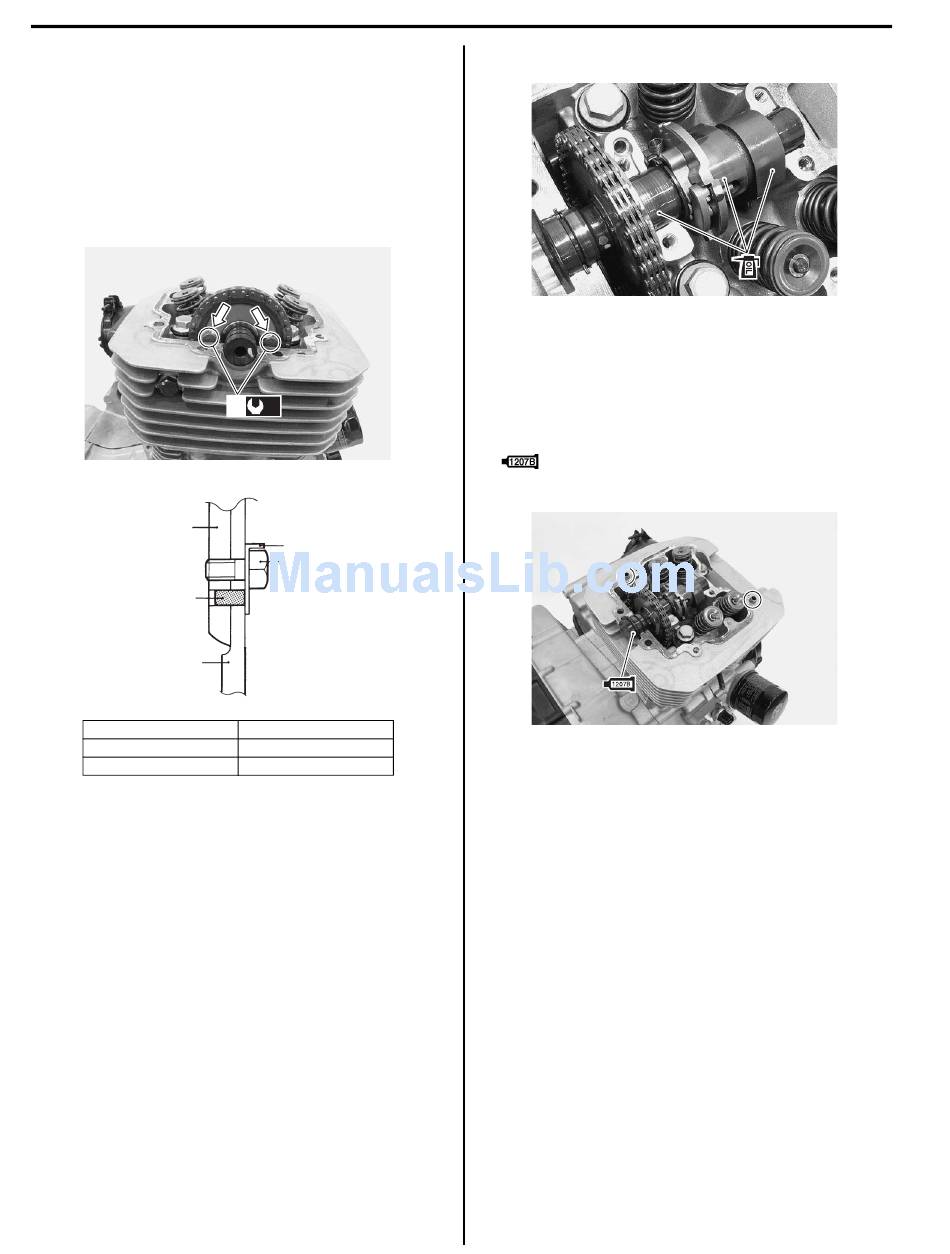

• Install the lock washer so that it is covering the
locating pin.
• Tighten the camshaft sprocket bolts (4).
Tightening torque
Camshaft sprocket bolt (b): 15 N·m (1.5 kgf-m,
11.0 lb-ft)
• Bend up the washer tongue positively to lock the
bolts.
1
2
3
1. Camshaft
2. Locating pin
3. Camshaft sprocket
4
(b)
I827H1140029-01
5
4
I827H1140030-01
4. Bolt
5. Lock washer
• Apply engine oil to the cam faces and journals.
Cylinder Head Cover
• Clean the mating surface of the cylinder head and
head cover before mating.
• Install the dowell pins to the cylinder head.
• Apply bond to the camshaft end cap.
: Sealant 99000–31140 (SUZUKI BOND
No.1207B or equivalent)
I827H1140031-01
I827H1140032-01
