Suzuki LT-A400 Service Manual page 319

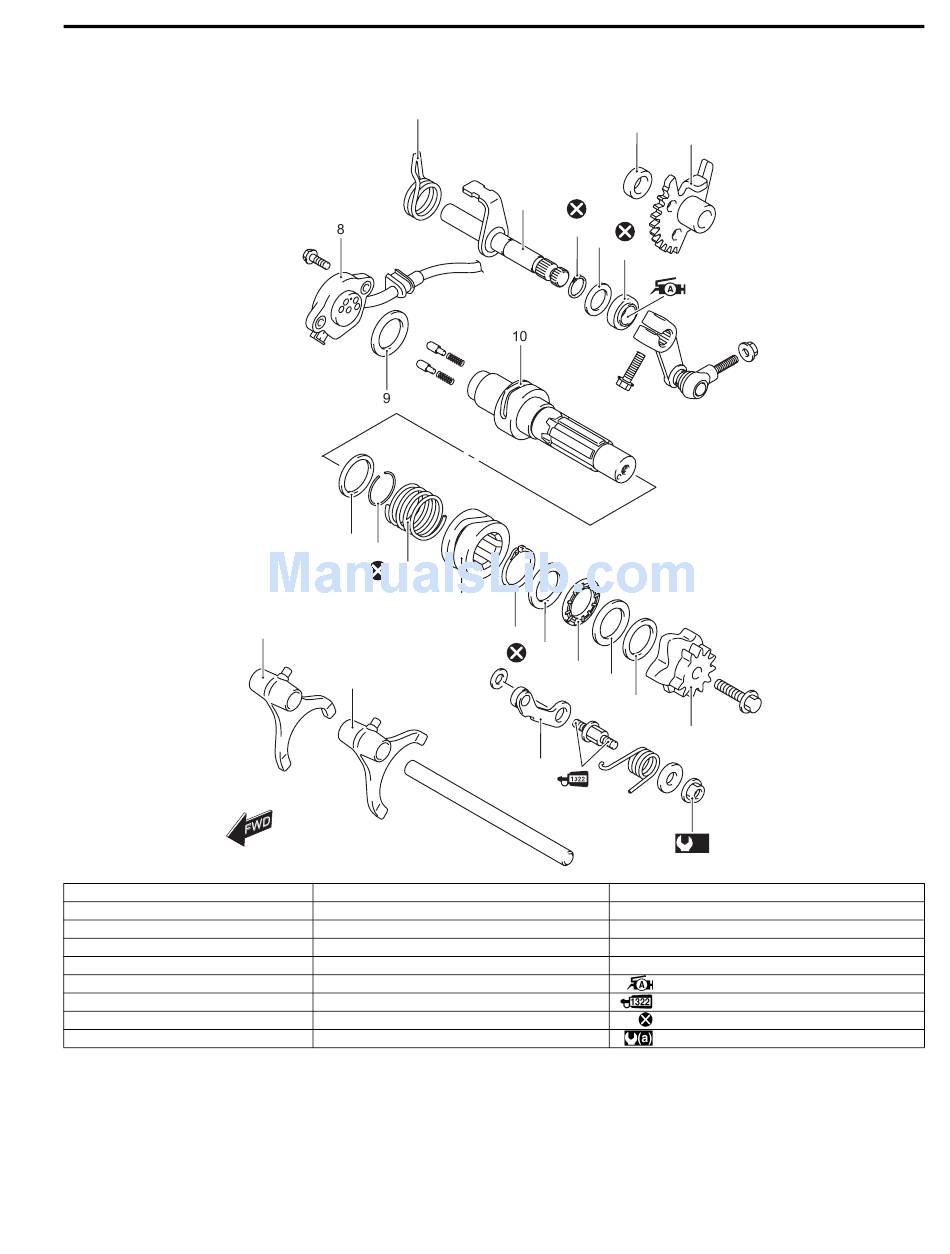

Transfer Gearshift Cam Components (LT-A400/F)
1. Spacer
2. Transfer shift gear
3. Return spring
4. Transfer gearshift shaft No. 2
5. Snap ring
6. Washer
7. Oil seal
8. GP switch
9. Washer
3
11
12
13
22
23
10. Transfer gearshift shaft No. 1
11. Washer
12. Circlip
13. Spring
14. Transfer gearshift cam (For high/low gears)
15. Snap ring
16. Washer
17. Bearing
18. Washer
4
5
6
7
14
15
16
17
18
19
21
Transfer:
1
2
20
(a)
19. Washer
20. Gearshift cam plate
21. Gearshift cam stopper
22. Gearshift fork (For reverse drive gears)
23. Gearshift fork (For high/low gears)
: Apply grease.
: Apply thread lock.
: Do not reuse.
: 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
3C-10
B827H13306005
I827H1330027-03
