1E-5 Engine Lubrication System:
7) Stop the engine and remove the oil pressure gauge
and attachment.
8) Reinstall the main oil gallery plug (1) and tighten it to
the specified torque.
CAUTION
!
Use a new gasket to prevent oil leakage.
Tightening torque
Main oil gallery plug (a): 23 N·m (2.3 kgf-m, 16.5
lb-ft)

Engine Oil and Filter Replacement

Refer to "Engine Oil and Filter Replacement in Section
0B (Page 0B-7)".

Engine Oil Level Inspection

Refer to "Engine Oil and Filter Replacement in Section
0B (Page 0B-7)".

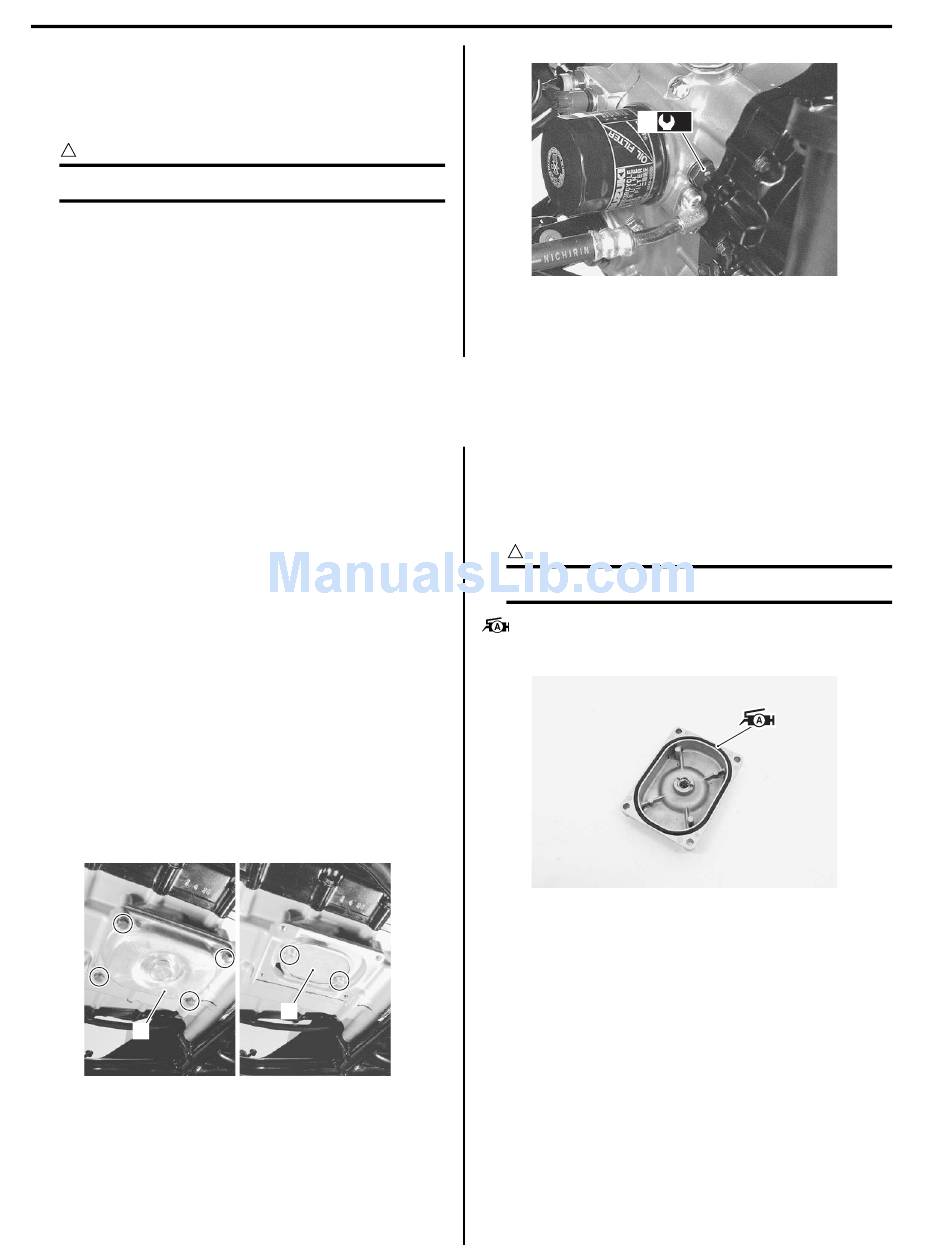

Oil Sump Filter Removal and Installation

Removal
1) Remove the engine protector. Refer to "Exterior
Parts Removal and Installation in Section 9D
(Page 9D-3)".
2) Drain engine oil. Refer to "Engine Oil and Filter
Replacement in Section 0B (Page 0B-7)".
3) Remove the oil sump filter cover (1).
4) Remove the oil sump filter (2).
1

Repair Instructions

B827H11506001
B827H11506002
B827H11506003
2
I827H1150009-02
1
9) Check the engine oil level. Refer to "Engine Oil and
Filter Replacement in Section 0B (Page 0B-7)".
10) Reinstall the removed parts.
Installation
Install the oil sump filter in the reverse order of removal.
Pay attention to the following points:
• Apply grease to new O-ring.
CAUTION
!
Use new O-ring to prevent oil leakage.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
(a)
I827H1150047-01
I827H1150020-01
